16 Series, Model - 2816 HST

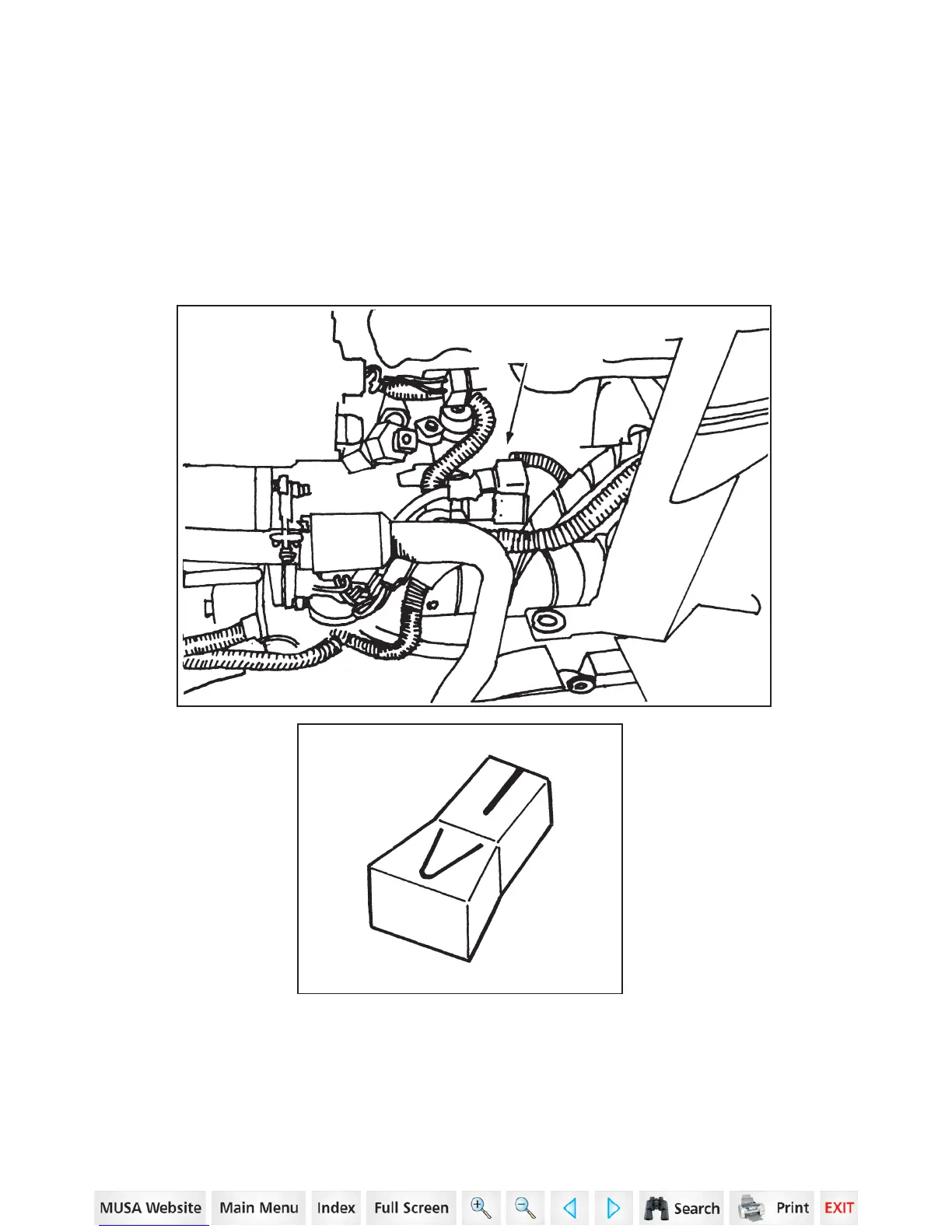

FUSIBLE LINK
LINE FUSE
Line Fuse
If the electrical circuit is accidently grounded or a reverse battery connec-
tion is made, the Line fuse located on the LH side of the engine will burn
out and break the circuit to prevent the solenoid switch, wiring harness
and alternator charging system from being damaged. If electrical problems
occur, the Line fuse must be checked for continuity to determine if one of
the circuits is broken, see your Dealer to replace and correct.
Two Line fuses are installed and the circuit can be identified by color of box.
Red Box (50AMP):Solenoid switch circuit
Yellow Box (60AMP):Wirling harness and alternator charging system
126
ELECTRICAL SYSTEM _____________________________________________________
