Mahindra 2816 HST User Manual

16 Series, Model - 2816 HST
1. Disconnect an implement from the hitch. (See Disconnecting Imple-
ment from Hitch in this manual.)
2. Disconnect LH and RH lift rods from the lift arms.
3. Start the engine.
4. Move the hitch control lever rearward to raise the lift arm to the
maximum lifting position.
5. With the arm so raised, stop the engine.
6. Check a free play of the lift arm to be 5 to 10 mm at the tip of the lift
arm by hands.
7. If the insufficient free play is available, move the raise stop forward
and check again with the same procedure as before.
If raise stop setting position is incor-
rect, the hydraulic pump might be
damaged.
Therefore carefully adjust as below.

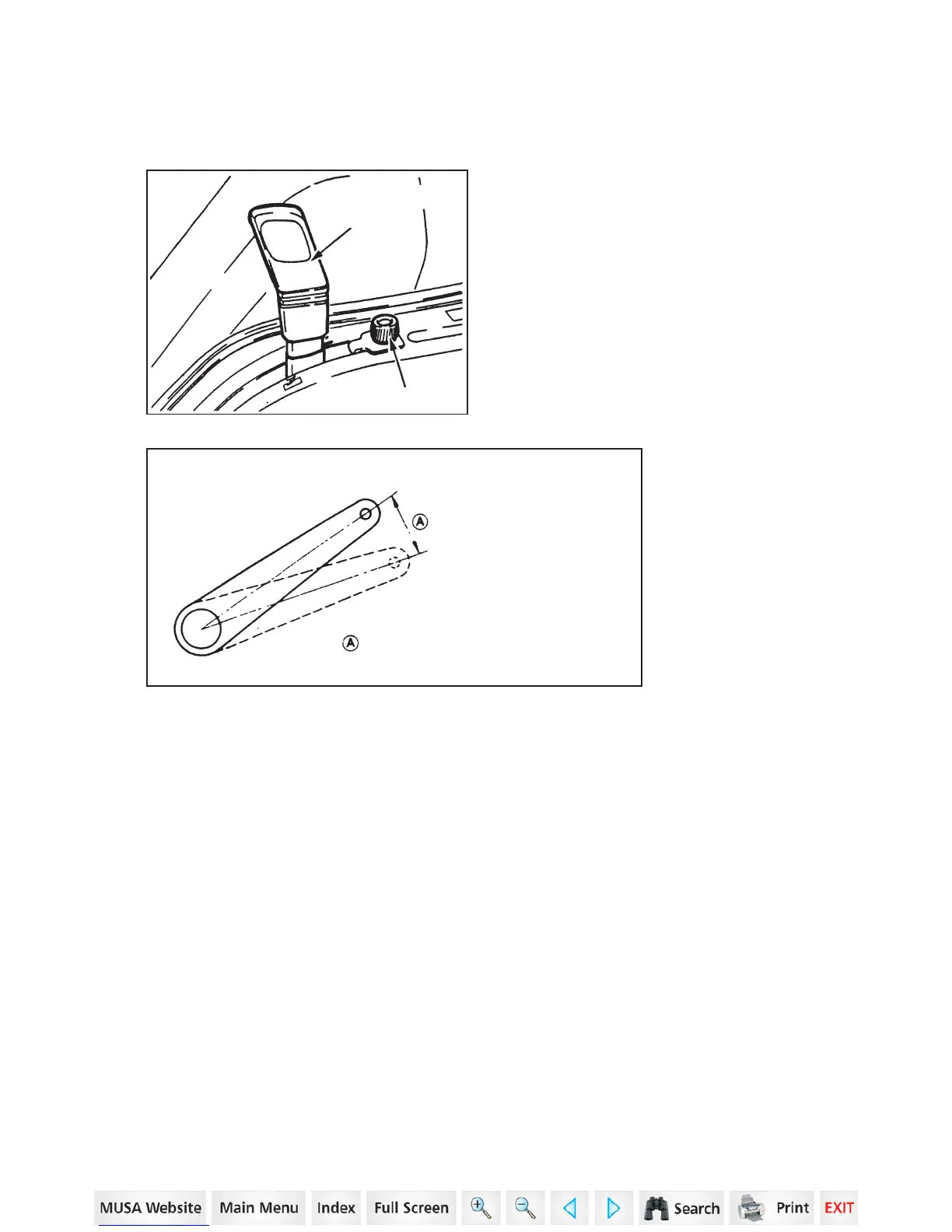

RAISE STOP SETTING POSITION
RAISE STOP
HITCH CONTROL
LEVER
5 ~ 10 MM (0.2 ~ 0.4 in)
Stop position by hydraulic
Max. position by hand
Ram shaft arm
122
