16 Series, Model - 2816 HST

ROPS BAR

(NORMAL OPERATING POSITION)

LOCK PIN

LOCK NUT

POSITION PIN

JAM NUT

LOCK NUT

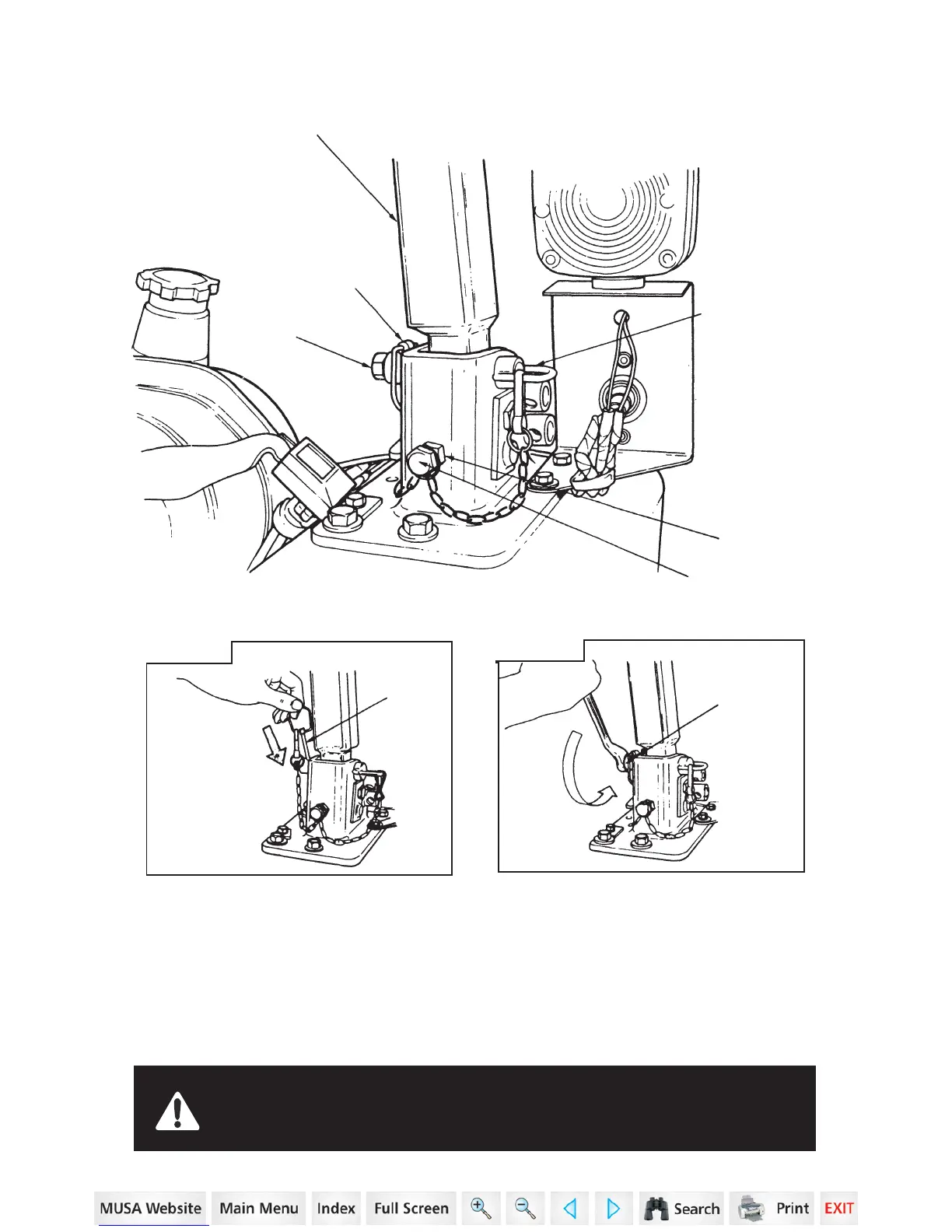

STEP 18

STEP 17

Install the lock pins.

Install the lock nuts. Tighten the

nuts to a torque of 33 to 40 lb ft

(44 to 54 Nm).

NOTE: The lock nut installation

cab be omitted for operator con-

venience if the ROPS is folded

frequently.

LOCK PIN

LOCK BOLT

Rollover protection is provided only with proper assembly. Lock

pins, hinge pins and position pins must be in place. Correct parts

may be obtained from your dealer.

M234A
