Rear upset can result if pulling from wrong location on tractor. Hitch
only to the drawbar. Use 3 point hitch only with the implements de-
signed for its use - not as a drawbar.
M119
Try to balance the load primarily on the implement wheels - as in
loading a trailer or spreader. Avoid overloading the drawbar. Add
front end weights for improved stability. Engage the clutch
smoothly, avoid jerking and use the brakes cautiously to avoid jack-
knifing.
M117
The drawbar must be in the storage position when using the three-point
hitch.

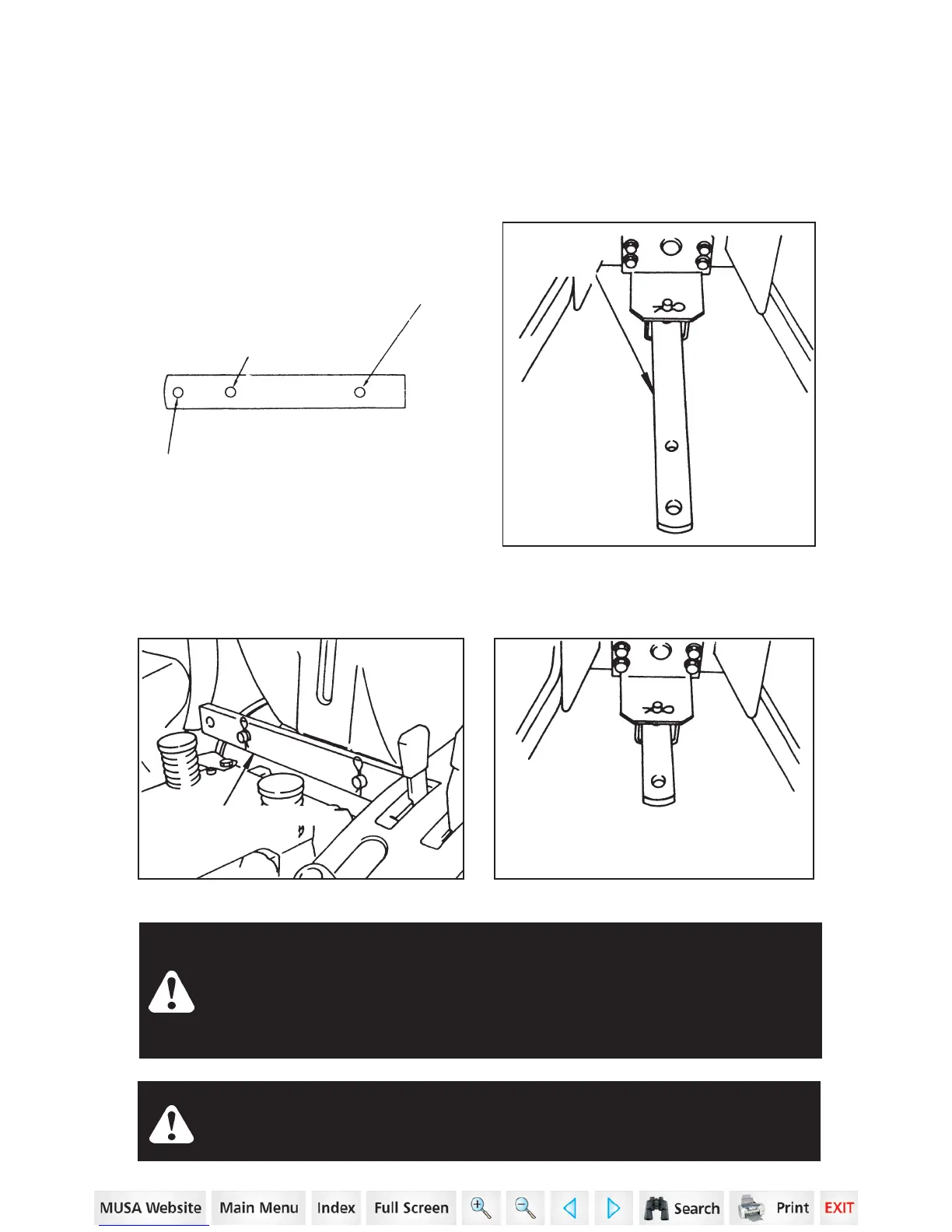

DRAWBAR
Your tractor is equipped with a drawbar. Use the drawbar for connecting
all pull-behind implements.
STORAGE POSITION
(WITHOUT MID PTO)
STORAGE POSITION
(WITH MID PTO)
DRAWBAR
OPERATING
POSITION
IMPLEMENT CONNECTING
PIN HOLE
DRAWBAR HITCH
CONNECTING PIN HOLE
STORAGE PIN HOLE
WITHOUT MID PTO
WITHOUT MID PTO
WITH MID PTO
