GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4
4. Telescoping, locking and setting down a telescopic
section
The telescoping cylinder pushes the telescopic section
to a locking point.
The locking pins (7, Figure 4-13) of the mechanism (10)
extend into the cutouts (4).
The telescopic section is automatically set down.
The telescoping cylinder retracts until the locking pins
(7, Figure 4-14) are positioned on the above telescopic
section (1).
The weight of the load is now on the telescopic sections
and not on the telescoping cylinder.

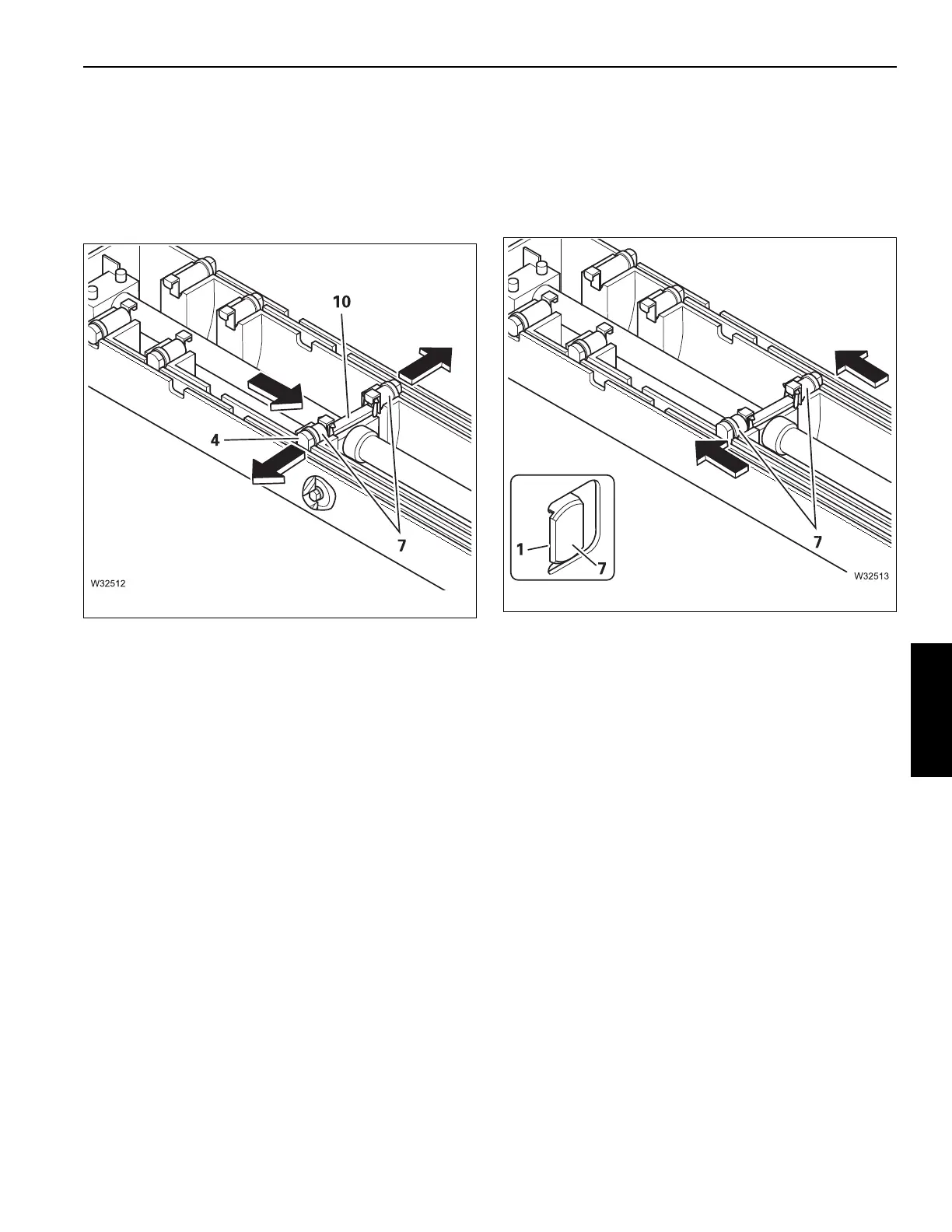

8849-120
FIGURE 4-13
8849-121
FIGURE 4-14
