GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
4

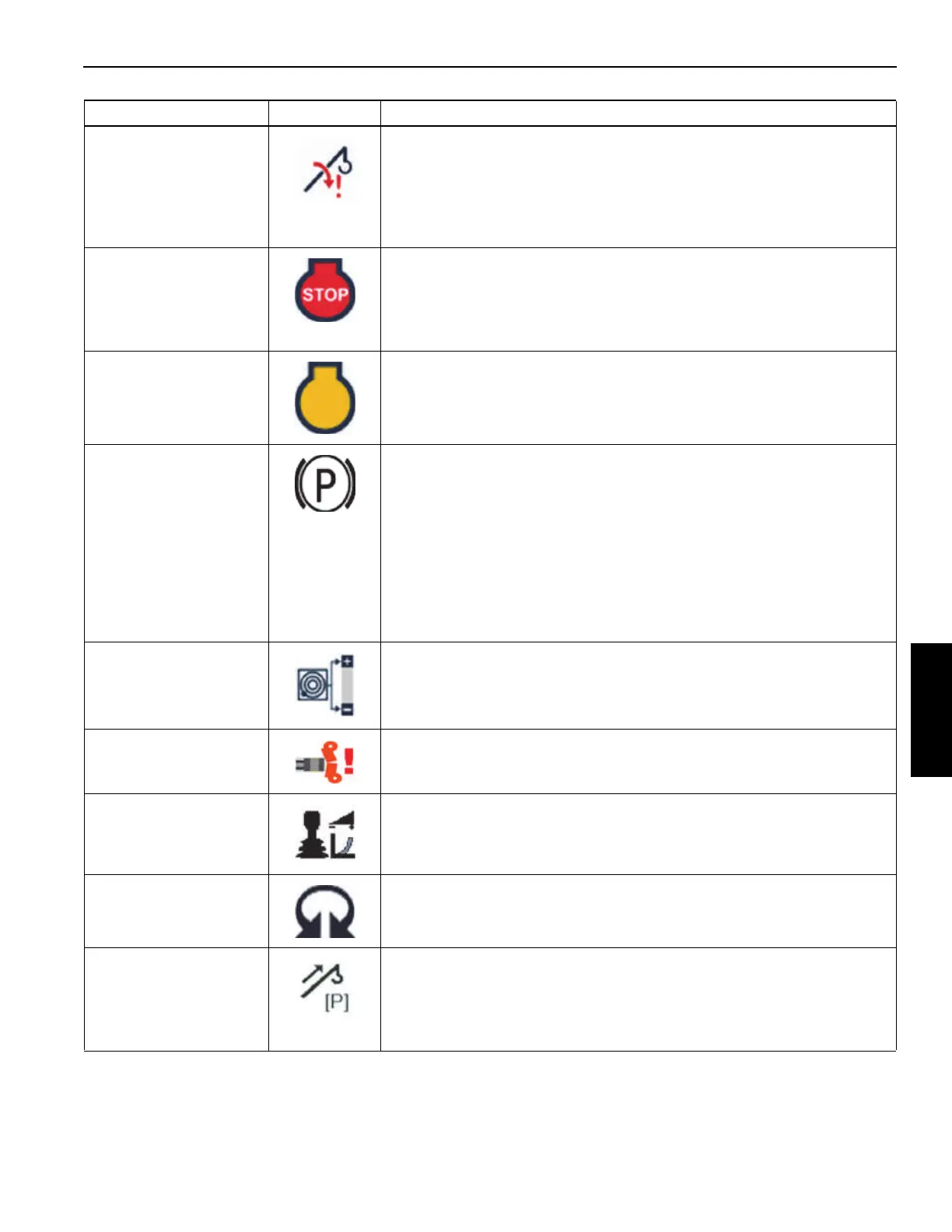

Low Boom Angle Alert
...
Constant On – Indicates the boom has reached the carrier avoidance area.
When the indicator comes on, the warning buzzer will sound. The crane
system will lock out the boom down and swing left or right crane functions.
Flashing – Indicates the carrier avoidance area system and its lock outs
(boom down and swing left and right) are actively bypassed by one of the
Limit Bypass Switches.
Engine Stop Alert
...
Indicates there is one or more active engine faults. When the indicator comes
on, the warning buzzer will sound.
Safely stop the lifting operations, land and secure any load being lifted. If
possible, retract and lower the boom. Shut down and secure the crane.
Access the fault codes through the Menu Screen of the ODM
Engine Warning Alert
...
Indicates there is one or more active engine faults.
Access the fault codes through the Menu Screen of the ODM. Correct
malfunction as soon as possible.
Parking Brake Alert
...
Indicates the operator is trying to do one of the following operations:
- Tilting the cab while the parking brake is released.
- Starting the engine while the parking brake is released.
- Shifting the transmission to forward or reverse while the parking
brake is engaged.
- Operating the outrigger function while the parking brake is released.
- Releasing the parking brake while rigging code 9810 (Stationary On
Rubber) is active in the RCL.
Auto-level Sensor
Warning Alert
...
Indicates the operator is trying to auto-level the crane and there is a
malfunction with sensor.
Tele Cylinder At Boom
Nose Alert
...
Indicates the telescoping cylinder has extended too far and reached the
boom nose. Tele extension is locked out.
Controller Speed/Curve
Not Set To Factory
Default Alert
Indicates one or more of the controller functions are not set to the factory
default setting.
Free Swing Active Alert Indicates the swing brake is released and the boom is free to swing.
Tele Extend Pressure
Too High Alert
Indicates the pressure in the telescope extend circuit is too high for the given
boom length. The crane control system will reduce the system pressure and
eventually stop the telescope extend function to protect boom components.
If the boom is not fully extended, the load must be relieved from the crane
before continuing to extend the boom.
