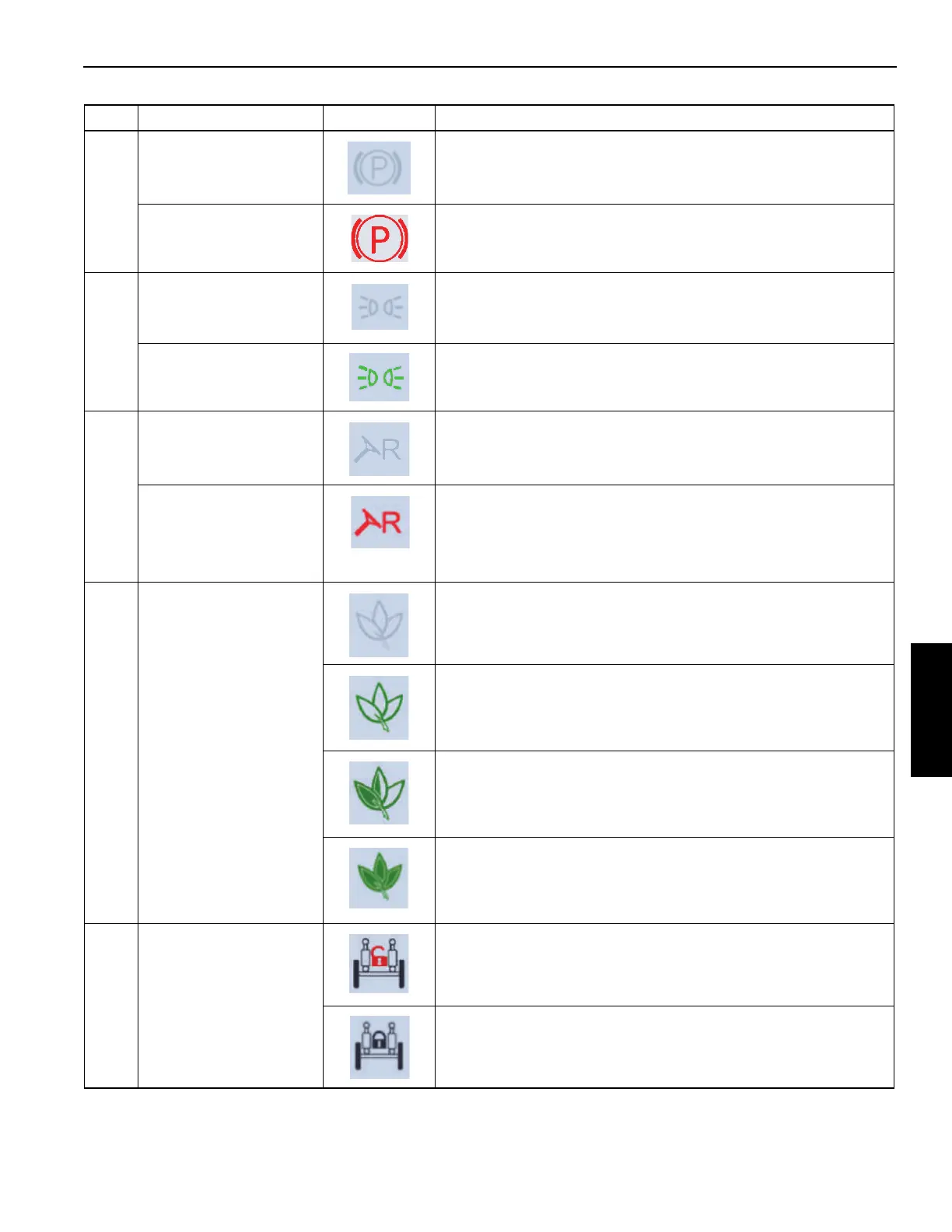

GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
Item Name Symbol Description
1
Parking Brake Indicator Indicates the parking brake is not applied.
Parking Brake Applied
Indicator (Red)
Indicates the parking brake is applied (refer to Parking Brake Switch,
page 3-7).
2
Marker Light/Headlight
Off Indicator
Indicates the marker lights and headlights are off.
Marker Light/Headlight
On Indicator (Green)
Indicates that either the marker lights or headlights are on (refer to
Headlights Switch, page 3-7).
3
Steering Reversed
Indicator
Indicates reverse steering is disabled.
Steering Reversed
Enabled Indicator (Red)
Indicates the reverse steering function is enabled (refer to Steering
Reversal Switch, page 3-14) and the driving controls, to include the
steering wheel, turn signal lever, transmission shift lever, and rear
steer switch are reversed for driving with the boom centered over the
rear tandem axles.
4
Economy (ECO) Mode
Indicator
Indicates ECO mode is disabled.
Indicates ECO mode is enabled (refer to ECO Mode, page 4-153)
but is not active.
Indicates ECO mode is enabled and actively lowered the engine
speed to 1200 rpm.
Indicates ECO mode is enabled and actively lowered the engine
speed to 750 rpm.
5
Suspension Control
Indicator
Indicates the suspension is unlocked and the rear axles are free to
oscillate from side to side.
Indicates the suspension is locked and axle oscillation is prevented.
