Grove Published 7-23-2020, Control # 668-02 4-103
GRT9165 OPERATOR MANUAL OPERATING PROCEDURES
Extending/Retracting Individual Outrigger Jacks
To extend or retract an individual O/R jack, perform the
following procedure:
1. Using the Jog Dial, or the Arrow Buttons at the
Navigation Control Pad, select the O/R Jack icon
(6, Figure 4-101) (icon will turn orange when selected).
2. Press the Jog Dial, or the OK Button at the ODM, to
make the O/R Jack icon active (icon will turn green when
active).
3. To extend the O/R jacks, position the Outrigger
Extend/Retract Switch (17, Figure 3-17) on the left
armrest to the extend position, then press and hold one
or more of the four buttons at the Jog Dial or Navigation
Control Pad.
To retract the O/R jacks, position the Outrigger
Extend/Retract Switch to the retract position, then press
and one or more of the four buttons at the Jog Dial or
Navigation Control Pad.
NOTE: The O/R jack positions correspond to the four
buttons at the Jog Dial and the ODM Navigation
Control Pad (Figure 4-100 and Figure 4-101).
When a button at the Jog Dial or Navigation Control Pad is
pressed and held, the corresponding O/R jack image turns
orange to indicate that it is actively moving. An arrow
appears to indicate whether the jack is extending or
retracting. In the following example (Figure 4-101), the top
image shows the Left-Front O/R jack is extending and the
bottom image shows the Left-Front O/R jack is retracting.

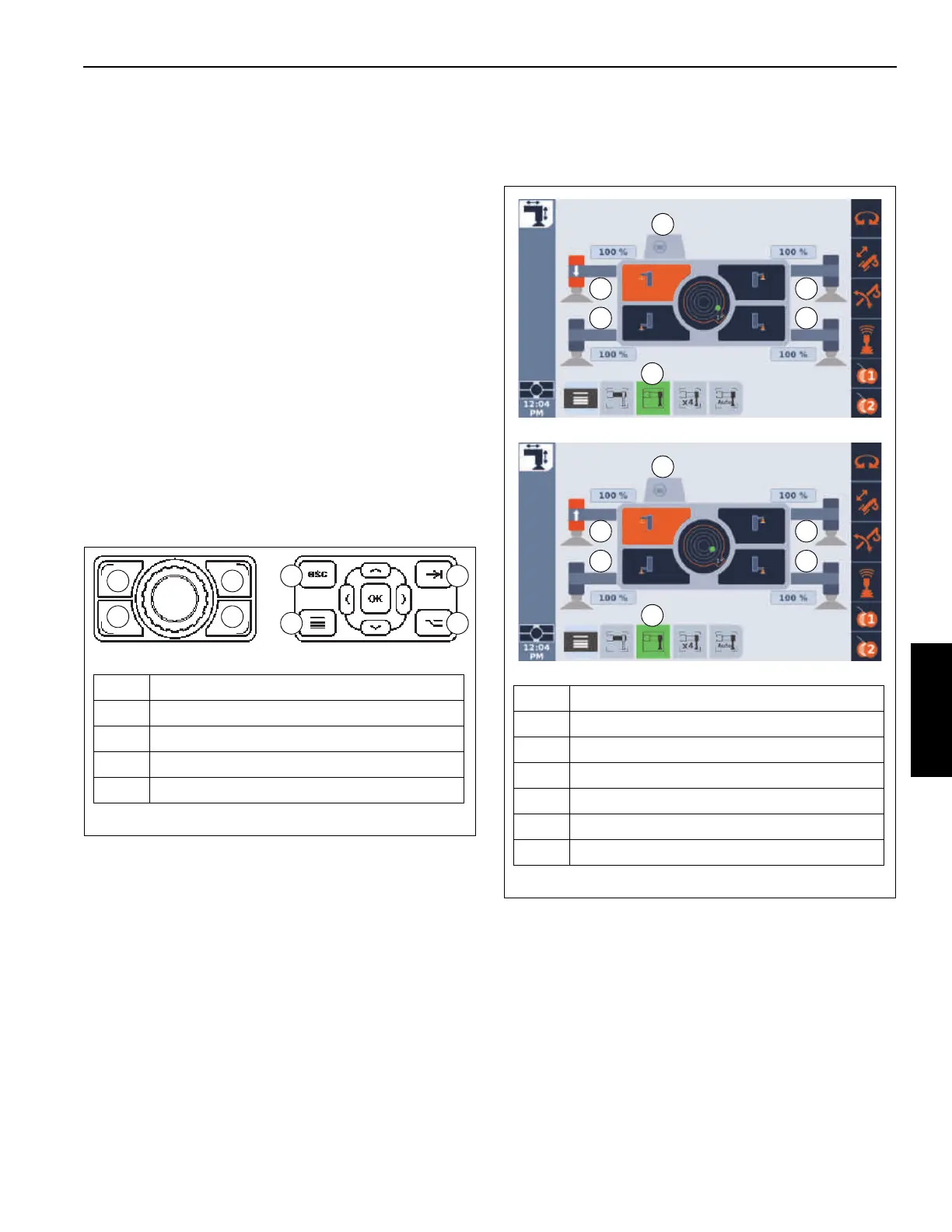

FIGURE 4-100
Item Description
1 Left-Front Jack
2 Right-Front Jack
3 Left-Rear Jack
4 Right-Rear Jack
1 2
3 4
1
3
2
4
FIGURE 4-101
Item Description
1 Left-Front Jack
2 Right-Front Jack
3 Left-Rear Jack
4 Right-Rear Jack
5 Steering Wheel (indicates front of crane)
6 O/R Jack Icon
1 2
3 4
5
1 2
3 4
5
9902-8
9902-7
6
6
