OPERATING PROCEDURES GRT9165 OPERATOR MANUAL
4-172 Published 7-23-2020, Control # 668-02
8

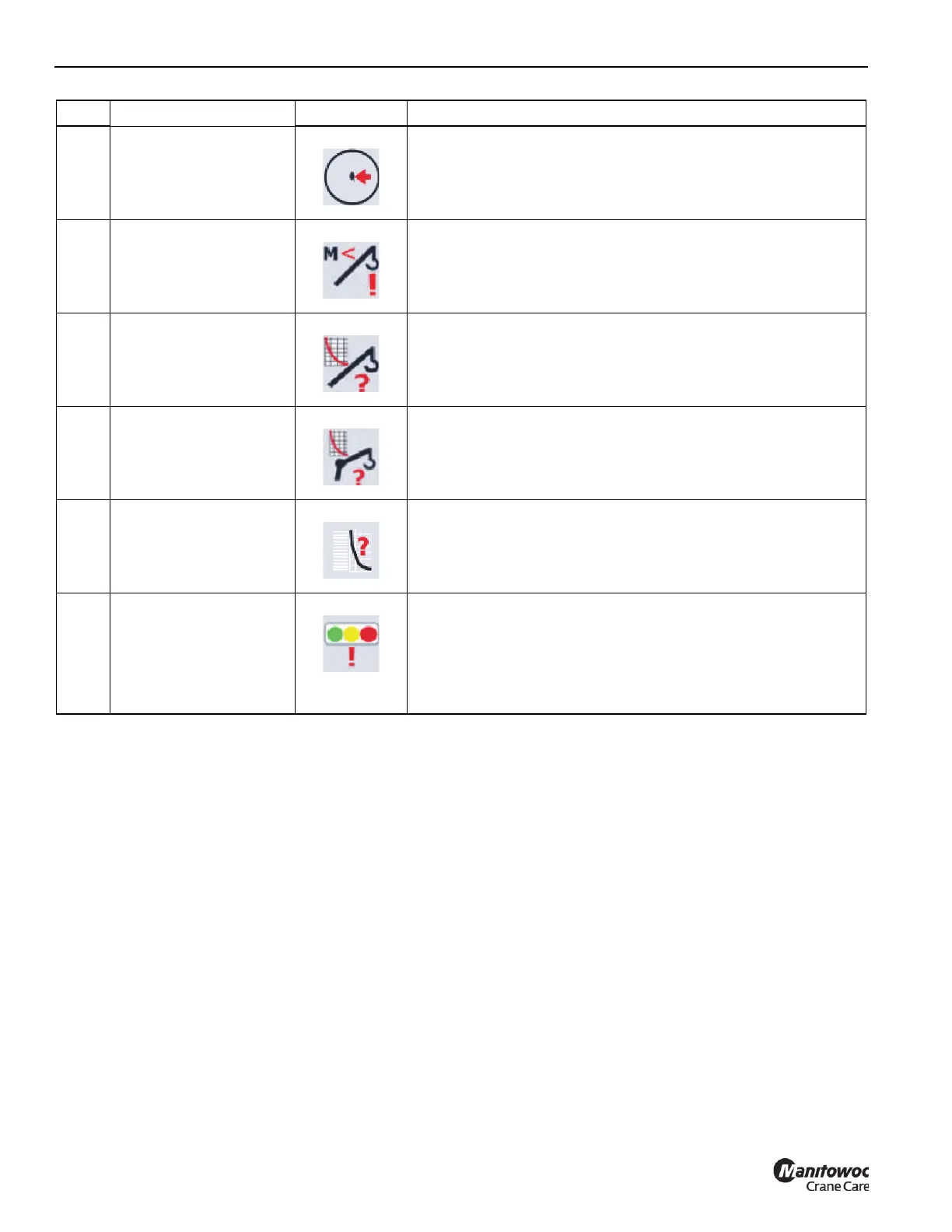

Radius Too Short
Indicator
Indicates the radius is smaller than the minimum radius in the
selected load chart.
9
Load Too Small
Indicator
Indicates the load is smaller than the minimum load in the selected
load chart
10
Boom - No Load Chart
Indicator
Indicates the main boom load chart is not available for the given
crane configuration.
11
Boom Extension - No
Load Chart Indicator
Indicates there is no load chart available for the boom extension, but
the boom extension has been chosen in the RCL.
12
Curve Chart Point Error
Indicator
Indicates there is no load chart found for the given crane
configuration (off chart).
13
Status Light Bar
Indicator (CE cranes)
Indicates the system setting for CE cranes is disabled but the
system setting for the outside light bar is enabled.
Accessing the system requires the CAN-link service software and
connection cable, which are available through Crane Care to those
service technicians who have attended the Grove New Technology
training course.
Item Description Graphic Explanation
