Grove Published 7-23-2020, Control # 668-02 5-23
GRT9165 OPERATOR MANUAL SET-UP AND INSTALLATION

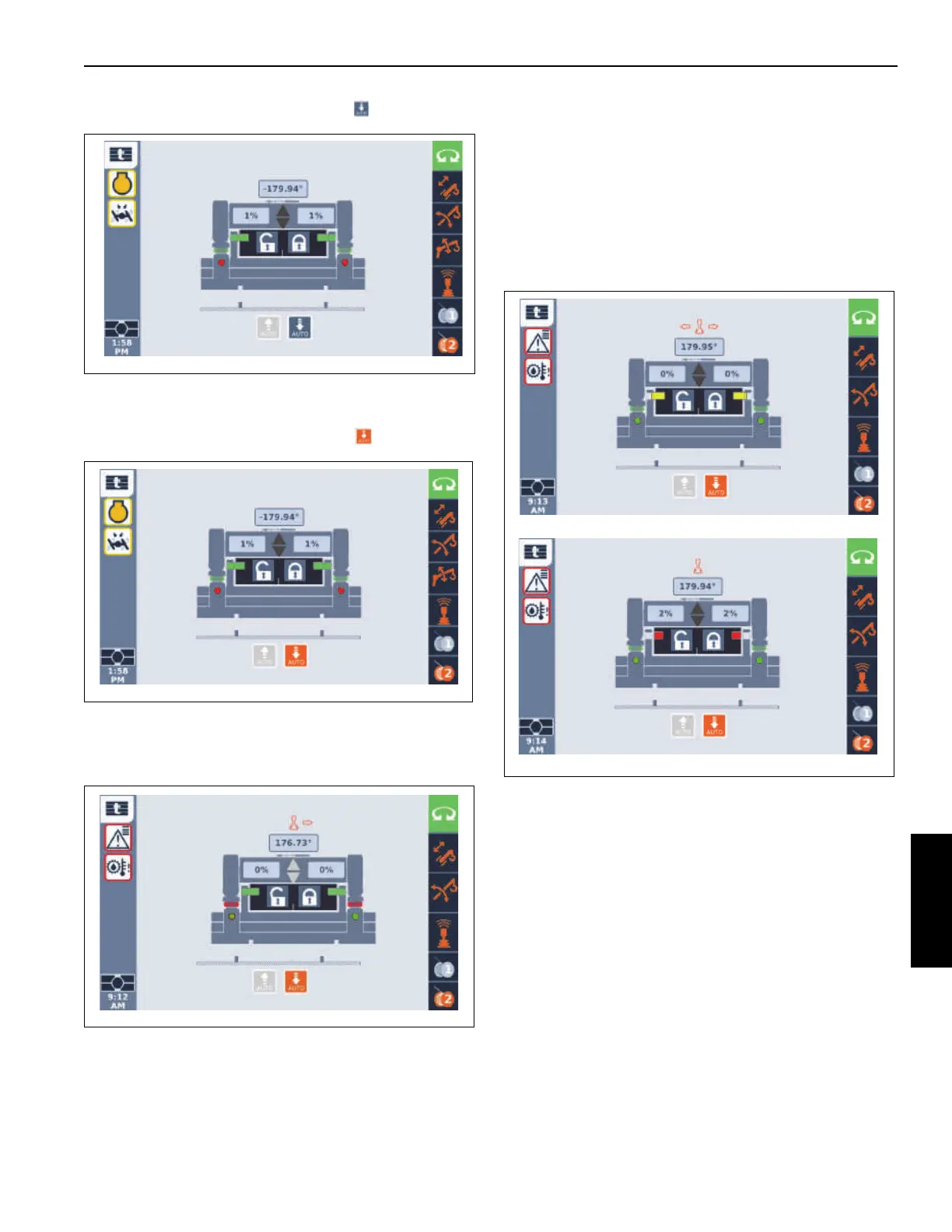

The Auto icon becomes active (blue) .
7. Use the ODM control pad arrow buttons or jog dial to
highlight the Auto icon.
The Auto icon is highlighted (orange) .
8. Press OK on the ODM control pad or press down on the
jog dial.
The Swing Controller icon appears.
NOTE: If two direction arrows appear, it means the
controller can be moved in either direction.
9. Move and hold the Swing Controller in the direction
displayed. The counterweight is removed as described
in the steps below. Hold the controller throughout the
steps below.
a. Locking pins are retracted. The locking pin icons
turn yellow while being retracted, then red when
fully retracted.
b. The lift cylinders lower the counterweight to the
carrier platform. The progress of the cylinders is
shown in percent. The cylinders are fully retracted
when 0% is displayed. The cylinders are fully
extended when 100% is displayed.
NOTE: The Swing Caution icon (11, Figure 5-16) appears
and swing speed is restricted when the
counterweight is being removed from the
superstructure.
