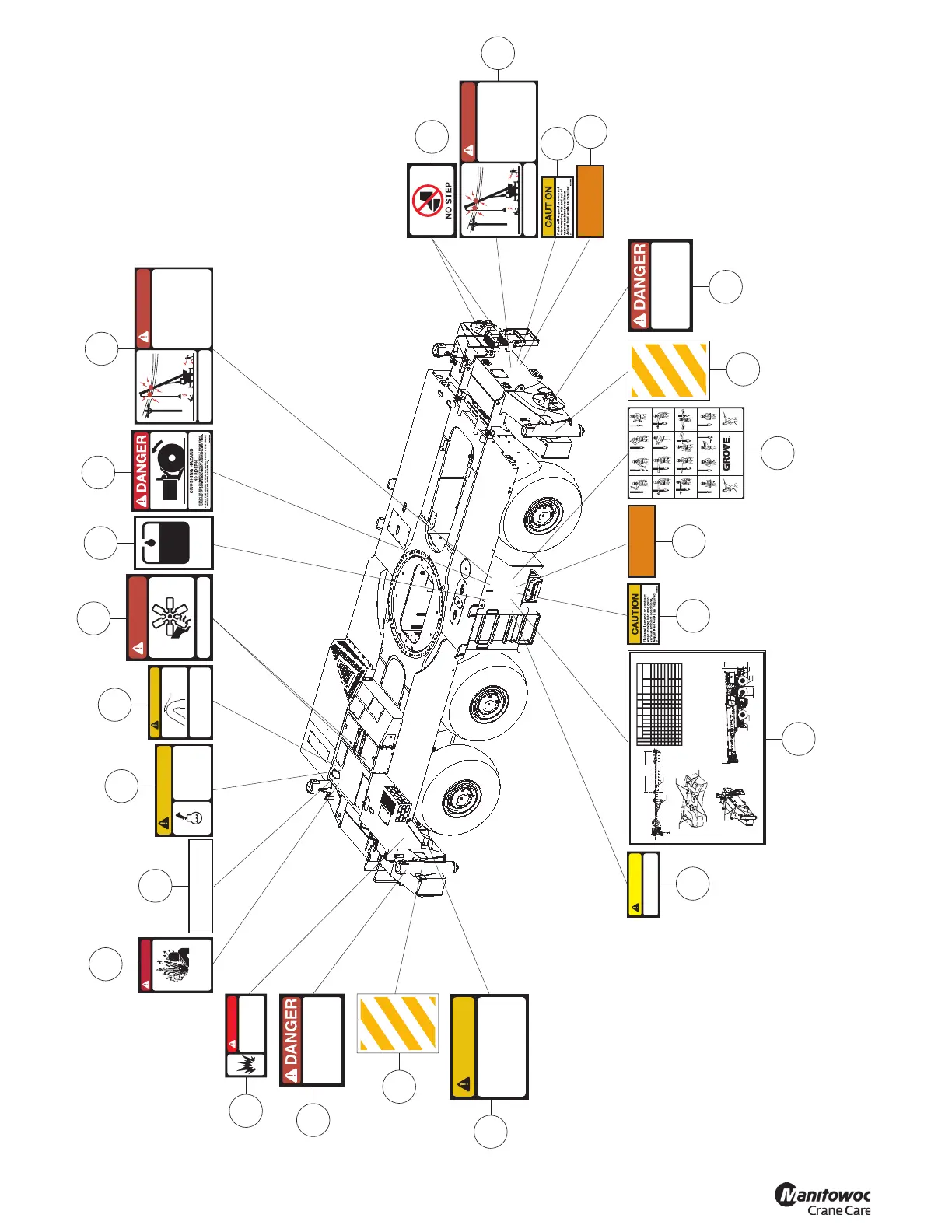

DANGER
CRUSHING HAZARD
• Death or serious injury could result
from being crushed by moving machinery
or by improper set-up on outriggers.
• Ensure all pins and floats are
properly installed and the outrigger
beams are properly extended before
lifting on outriggers.
• Stand clear while outriggers are being
extended or retracted.
7376011087
11
146
205
132
132
DANGER
CRUSHING HAZARD
• Death or serious injury could result
from being crushed by moving machinery
or by improper set-up on outriggers.
• Ensure all pins and floats are
properly installed and the outrigger
beams are properly extended before
lifting on outriggers.
• Stand clear while outriggers are being
extended or retracted.
7376011087
205
158
145
CAUTION
DO NOT ACTIVATE ANY
SWITCHES ON THIS CONTROL
UNTIL YOU ARE THOROUGHLY
FAMILIAR WITH THE OUTRIGGER
BOX REMOVAL PROCEDURE.
FOLLOW INSTRUCTIONS IN
OPERATOR’S AND SAFETY
HANDBOOK.
7376002591
HYDRAULIC
OIL
G7
7376011335
THIS CRANE IS NOT INSULATED.
TO AVOID DEATH OR SERIOUS INJURY
Keep ALL parts of the crane, rigging and load at least 20 feet
(6 meters) away from any energized power line. You MUST
follow the OSHA requirements set forth in 29CFR 1926.1407
through 1926.1411.
This crane is not designed or equipped for use within 10 feet
(3 meters) of energized power lines [Refer to 29CFR1926.1410
Table A]. If operation within 10 feet (3 meters) of any power
lines cannot be avoided, the power utility MUST be notified
and the power lines MUST be de-energized and grounded
BEFORE performing any work.
If contact is ever accidentally made with a power line and any
part of this crane, its rigging or load, NEVER touch the crane
or even approach or come near the crane.
Electrocution CAN OCCUR even without direct contact with
the crane.
DANGER
80037260
ELECTROCUTION HAZARD
THIS CRANE IS NOT INSULATED.
TO AVOID DEATH OR SERIOUS INJURY
Keep ALL parts of the crane, rigging and load at least 20 feet
(6 meters) away from any energized power line. You MUST
follow the OSHA requirements set forth in 29CFR 1926.1407
through 1926.1411.
This crane is not designed or equipped for use within 10 feet
(3 meters) of energized power lines [Refer to 29CFR1926.1410
Table A]. If operation within 10 feet (3 meters) of any power
lines cannot be avoided, the power utility MUST be notified
and the power lines MUST be de-energized and grounded
BEFORE performing any work.
If contact is ever accidentally made with a power line and any
part of this crane, its rigging or load, NEVER touch the crane
or even approach or come near the crane.
Electrocution CAN OCCUR even without direct contact with
the crane.
DANGER
80037260
ELECTROCUTION HAZARD
HOIST LOWER USE MAIN HOIST
USE WHIP LINE
(Auxiliary Hoist)
RAISE BOOM LOWER BOOM
MOVE SLOWLY
RAISE THE BOOM AND
LOWER THE LOAD
LOWER THE BOOM AND
RAISE THE LOAD
SWING STOP EMERGENCY STOP
EXTEND BOOM
DOG EVERYTHING
TRAVEL RETRACT BOOM
EXTEND BOOM
(
ONE HAND)
RETRACT BOOM
(ONE HAND)
101492
Reprinted by permission of
The American Society of Mechanical Engineers
HAND SIGNALS
133
134
139
131
130
31
401
402
138
152
147
130
401
402
141
2 ON EACH
OUTRIGGER PAD
DANGER
BURN HAZARD
Hot pressurized fluid can
cause serious injury or death.
Do not open radiator while hot.
7376102517
DANGER
ROTATING FAN BLADES KEEP
HANDS CLEAR.
7376011364
ENGINE DAMAGE
Improper filling of engine coolant
system can result in engine damage.
• Shut down engine
• Fill slowly. Flows exceeding 12
l/min (3 gpm) can give false level.
• Wait 1 min and recheck.
See service manual.
12 L/min
7376102516
DANGER
BURN HAZARD
TO AVOID DEATH OR SERIOUS
INJURY:
Do Not Use Ether. Engine
equipped with electric heater
starting aid. Use of ether may
cause explosion.
7376101881
Open during
initial fill.
CAUTION
SPECIAL FILL REQUIREMENTS
See service manual for initial fill
requirements after servicing cooling
system.
7376102424
G7 80025216
Attention
Special lubricant has been installed in
this component. For more information
please refer to lubrication decal on
Hydraulic Reservoir or lubrication chart
in Operator's Manual.
G7 80025216
Attention
Special lubricant has been installed in
this component. For more information
please refer to lubrication decal on
Hydraulic Reservoir or lubrication chart
in Operator's Manual.
CAUTION
240 VOLT ONLY
50 AMP
7376103069
G7
80124314G7
SURGE TANK FILL INSTRUCTIONS
• FILL THE TANK WITH THREADED CAP FULL (MAX FILL RATE:3 GPM).
• ONCE IT IS STABLE, ENSURE THE THREADED CAP IS CAPPED.
• FILL THE TANK WITH 15 PSI CAP TO FULL COLD SIGHT GLASS AND
ADD 1 QT ABOVE IT.
• RESUME NORMAL OPERATION.
G7
80117010
1. LIFTING OF ENTIRE CRANE OR MAJOR CRANE ASSEMBLIES MUST BE ACCOMPLISHED BY
UTILIZING SPECIFIC FITTINGS INDICATED ON THE ABOVE CHART. USE OF FITTINGS FOR
PURPOSES OTHER THAN THOSE DESIGNATED ON THIS CHART IS PROHIBITED.
FITTING CAPACITIES ARE MAXIMUM ALLOWABLE LOADS PER INDIVIDUAL FITTING.
2. RIGGING PERSONNEL SHALL BE RESPONSIBLE FOR PROPER SELECTION AND PLACEMENT
OF ALL SLINGS AND LOAD HANDLING DEVICES.
3. DIMENSIONS AND WEIGHTS SHOWN ARE THE LARGEST CONFIGURATION AVAILABLE.
4. RIGGING PERSONNEL SHALL VERIFY DIMENSIONS AS REQUIRED FOR CLEARANCE.
5. EXTEND OUTRIGGER BEAMS 48 CM (18 IN) AND SLING AROUND BEAMS TO LIFT.
6. DO NOT USE PINTLE HOOKS OR CWT LUGS FOR LIFTING OR TYING DOWN THE ENTIRE CRANE.
7. REMOVE OUTRIGGERS AND COUNTERWEIGHT FOR TRANSPORT AS REQUIRED.
TRANSPORTATION AND LIFTING DATA GRT9165
TOTAL UNIT
D
E
1673cm
(659 in)
A
377 cm
(148 in)
86,261 kg
(190,172 lb)
676cm
(266 in)
15,167kg
(33,438 lb)
25,750kg
(56,770 lb)
4,070kg
(8,975 lb)
3,483kg
(7,680 lb)
A
D
E
B
C
C
B
F
H
G
H
G
J
F
REAR AXLE
L
C
166 cm
(65.4 in)
TIE DOWN
NO./UNIT
LIFT
TOW
TOW
TIE DOWN
FITTING CAPACITY (TONS)
TOW
TIE DOWN
LIFT
LIFT
LIFT
LIFT
LIFT
XX
XX
X
X
X
X
X
X
TOTAL
UNIT
CARRIER BOOM CWT O/R
BOX
FITTINGS
A
B
C
D
E
F
G
H
J
12
2
4
4
4
4
4
2
2
33
50
11
44
44
LIFT
SEE NOTE #5
BOOM
COUNTERWEIGHT
OUTRIGGER
BOX
X
X
X
X
(BOTH SIDES)
(BOTH SIDES)
LIFT BOOM USING APPROPRIATE
LIFTING DEVICE. DO NOT LIFT BY
BY PINNING HOLES.
(WITH BOOM EXTENSION STOWED)
80101847 A1
