Manitowoc Grove RT9130E-2 - Page 120

2-78 Published 11-22-2016, Control # 345-12
HYDRAULIC SYSTEM RT9130E-2 SERVICE MANUAL
19, 20
2, 3

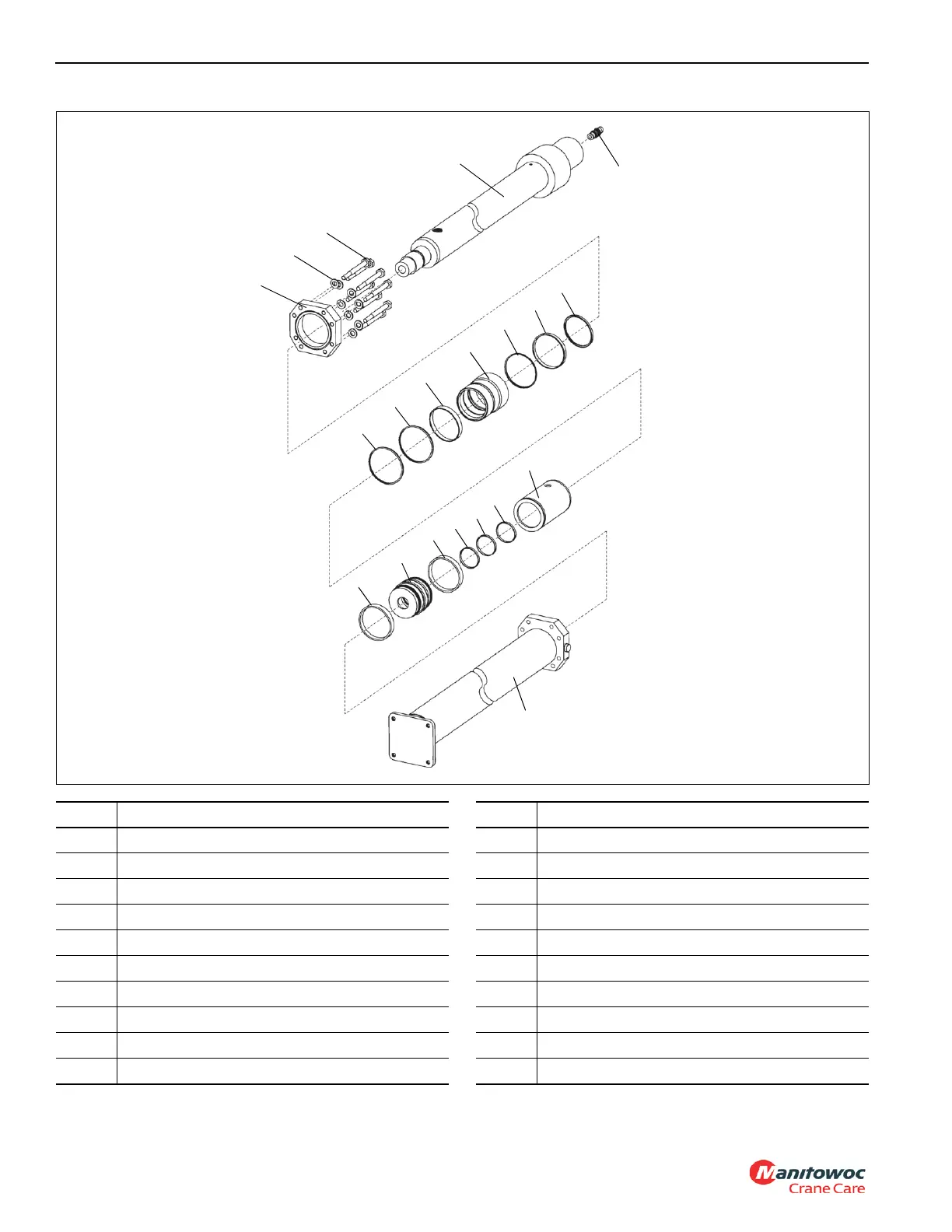

FIGURE 2-47
7278
18
17
16 15
13
10
12
11
4
1
5
6
7
8
9
14
4
6
Item Description
1Barrel
2Piston
3 Setscrew
4 Seal
5O-ring
6 Backup Ring
7 Spacer
8Rod
9 Head
10 Wear Ring
Item Description
11 O-ring
12 Backup Ring
13 Buffer Seal
14 Rod Seal
15 Wiper Ring
16 Head Plate
17 Washer
18 Capscrew
19 Counterweight Valve
20 Adapter
