Manitowoc Grove RT9130E-2 Service And Maintenance Manual

Grove Published 11-22-2016, Control # 345-12 2-33
RT9130E-2 SERVICE MANUAL HYDRAULIC SYSTEM
2
Superstructure
1
2
3
4
6
7
8
9
10
11
12
13
14
15
5

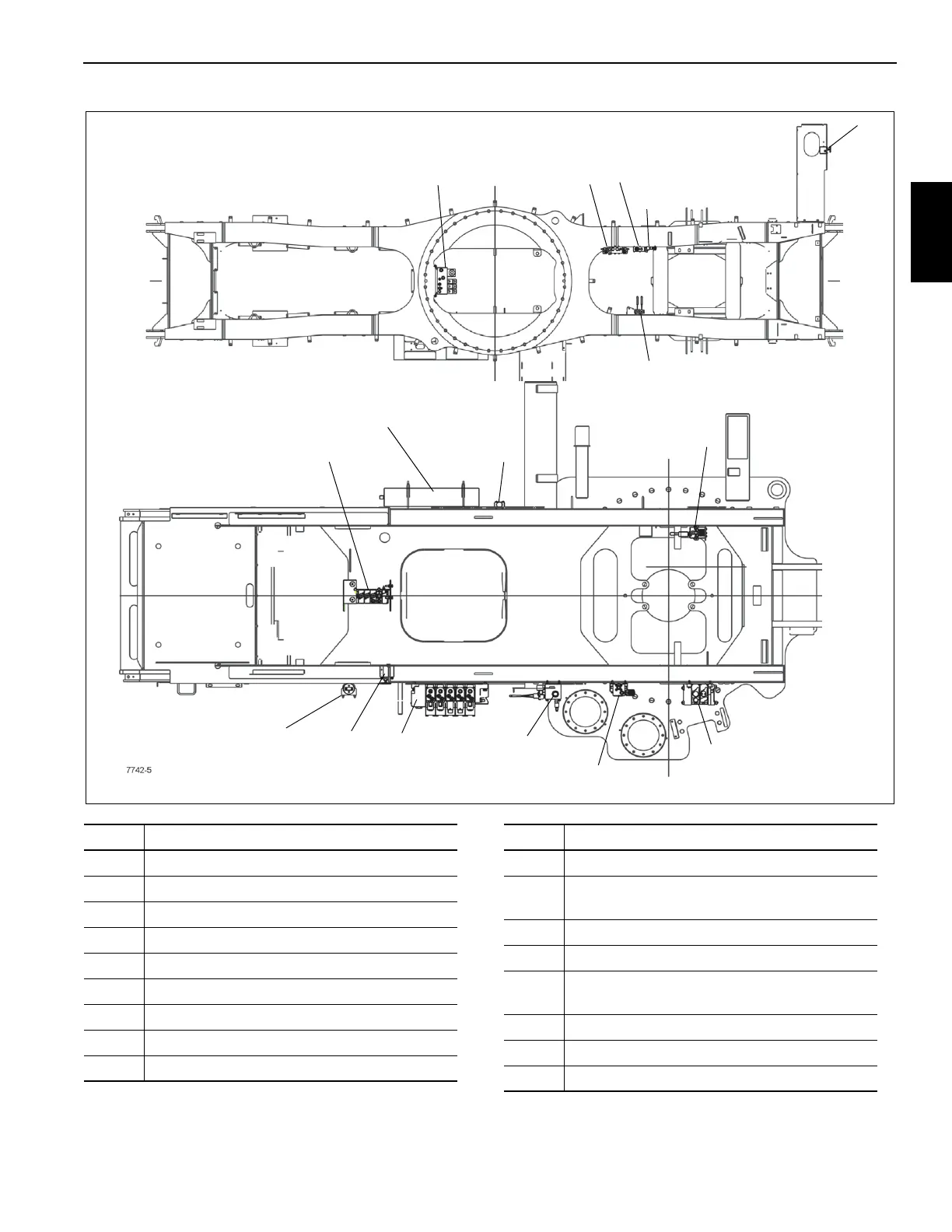

FIGURE 2-17
Carrier
16
Item Description
1 Manual Bleed Off Pressure Valve
2 Park Brake Valve
3 Axle Disconnect Valve
4 Integrated Outrigger/Rear Steer Valve
5 Swing/Steer Directional Control Valve
6 Axle Lockout Valve
7 Dual Accumulator Charge Valve
8 Pilot Operated Check Valve
9 Accumulators
Item Description
9 Accumulators
10
Directional Control Valve (Counterweight
Removal/Cab Tilt)
11 Accumulator
12 Manual Bleed Off Valve
13
Main Directional Control Valve (Telescope/
Lift/Hoist)
14 Pressure Reducing/Sequence Valve
15 Series/Parallel Selector Valve
16 Dual Fan Valve
