SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-54
Published 04-06-18, Control # 231-14

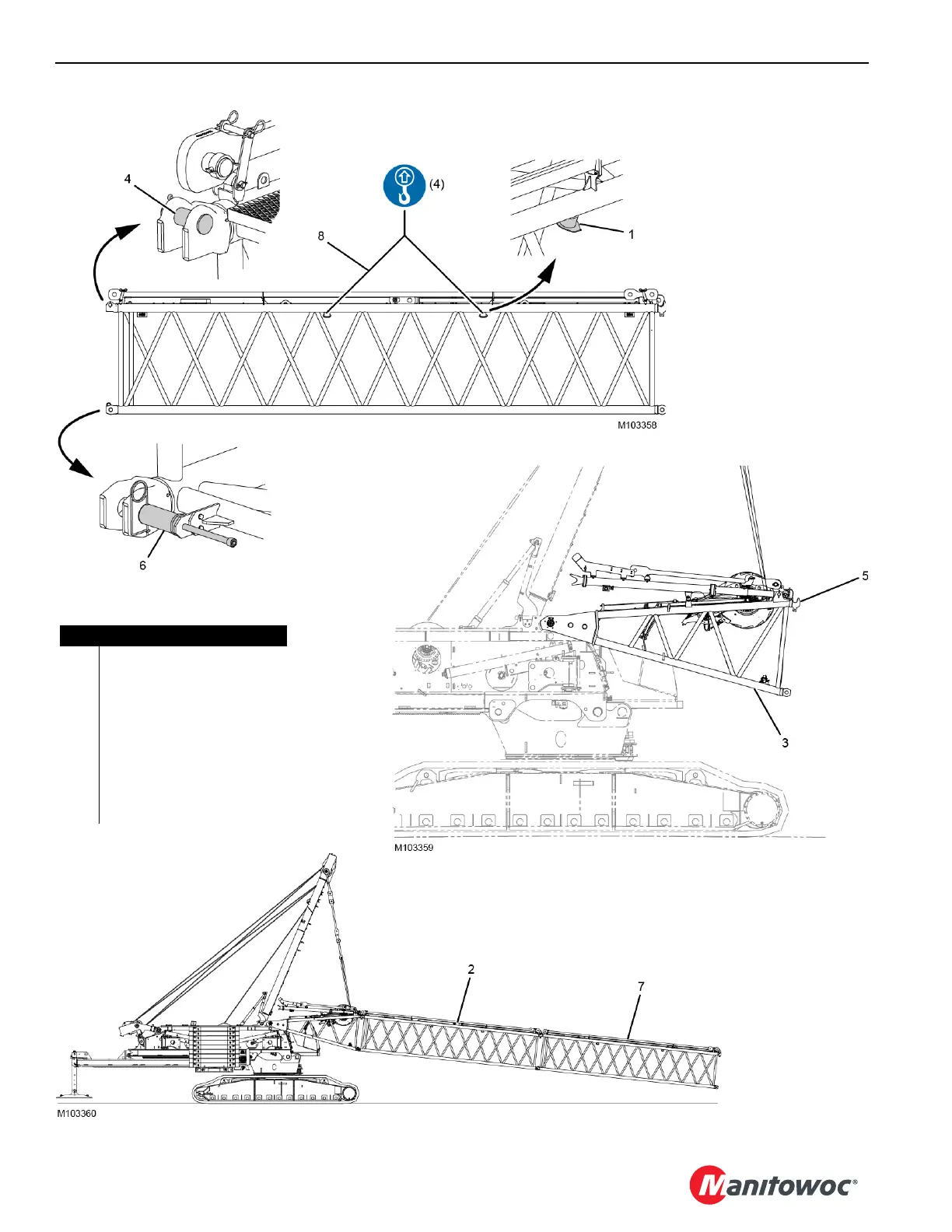

FIGURE 4-49
View A
View B
Item Description
1 Lifting Lug (qty 4)
2 First Fixed Mast Insert
3 Mast Butt
4 Fixed Pin (qty 2)
5 Hooked Connector (qty 2)
6 Retaining Pin (qty 2)
7 Second Fixed Mast Insert
8 SL 4 Sling – 3,80 m (12.50 ft),
11 340 kg (25,000 lb) (qty 4)
