SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-132
Published 04-06-18, Control # 231-14
Removing the Tray
See Figure 4-111 for the following procedure.
1. Using the assist crane, draw the counterweight tray (1)
off the VPC-MAX beam (2). The tray rollers (3) roll over
the small bolt-on stop blocks (4) during this step.
2. Install the large main stop blocks (5) by reversing the
removal procedure. See "Removing the Large Main
Stop Blocks" on page 4-127.
NOTE: The counterweight tray plates and pendants are
used for VPC-MAX beam removal and actuator
removal. It is recommended to not prepare the tray
for storage or shipping until these components
have been removed.

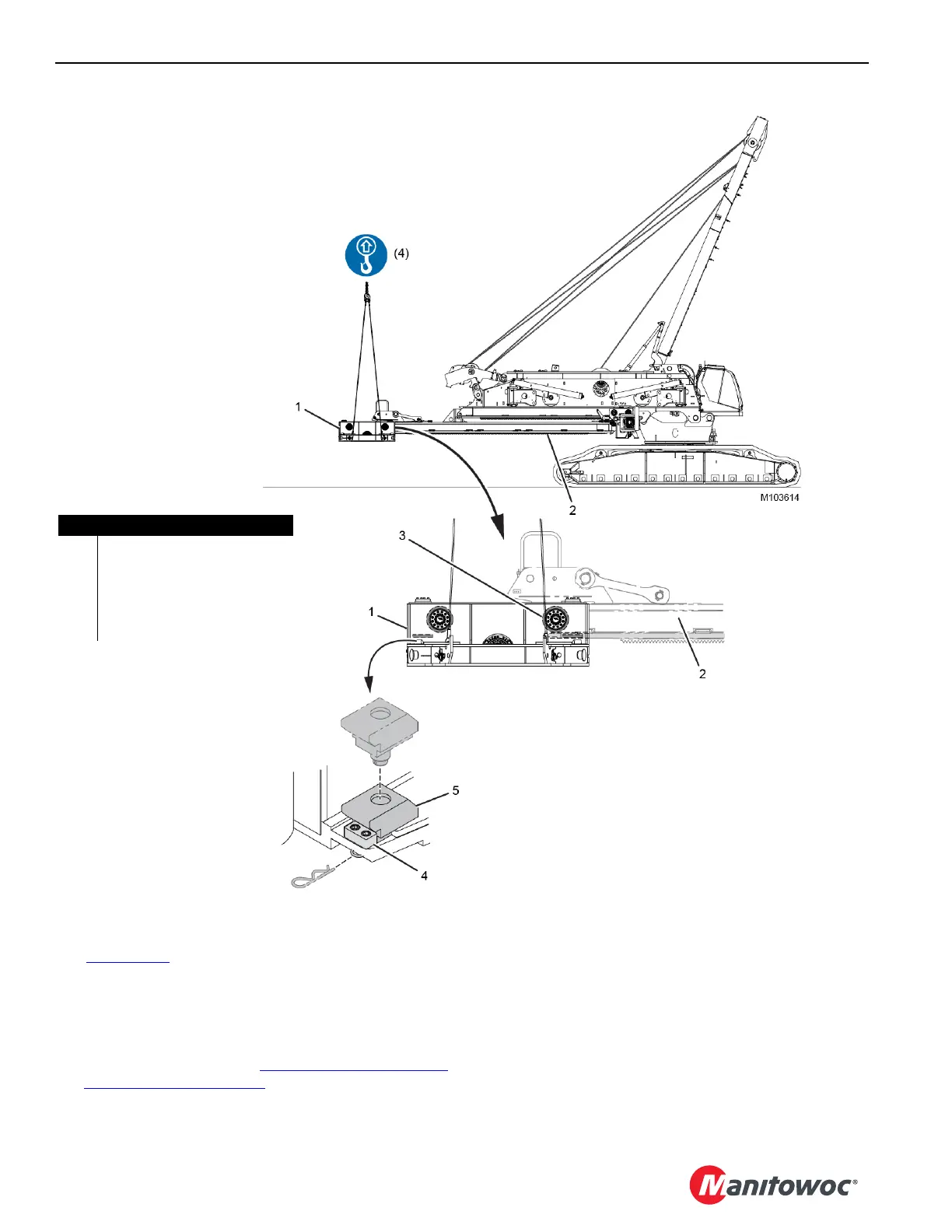

FIGURE 4-111
Item Description
1 Counterweight Tray
2 VPC-MAX Beam
3Tray Roller (qty 4)
4 Small Bolt-on Stop Block (qty 2)
5 Large Main Stop Block (qty 2)
