SET-UP AND INSTALLATION MLC650 VPC-MAXâ„¢ OPERATOR MANUAL
4-18
Published 04-06-18, Control # 231-14
Connecting the Hydraulic Hoses

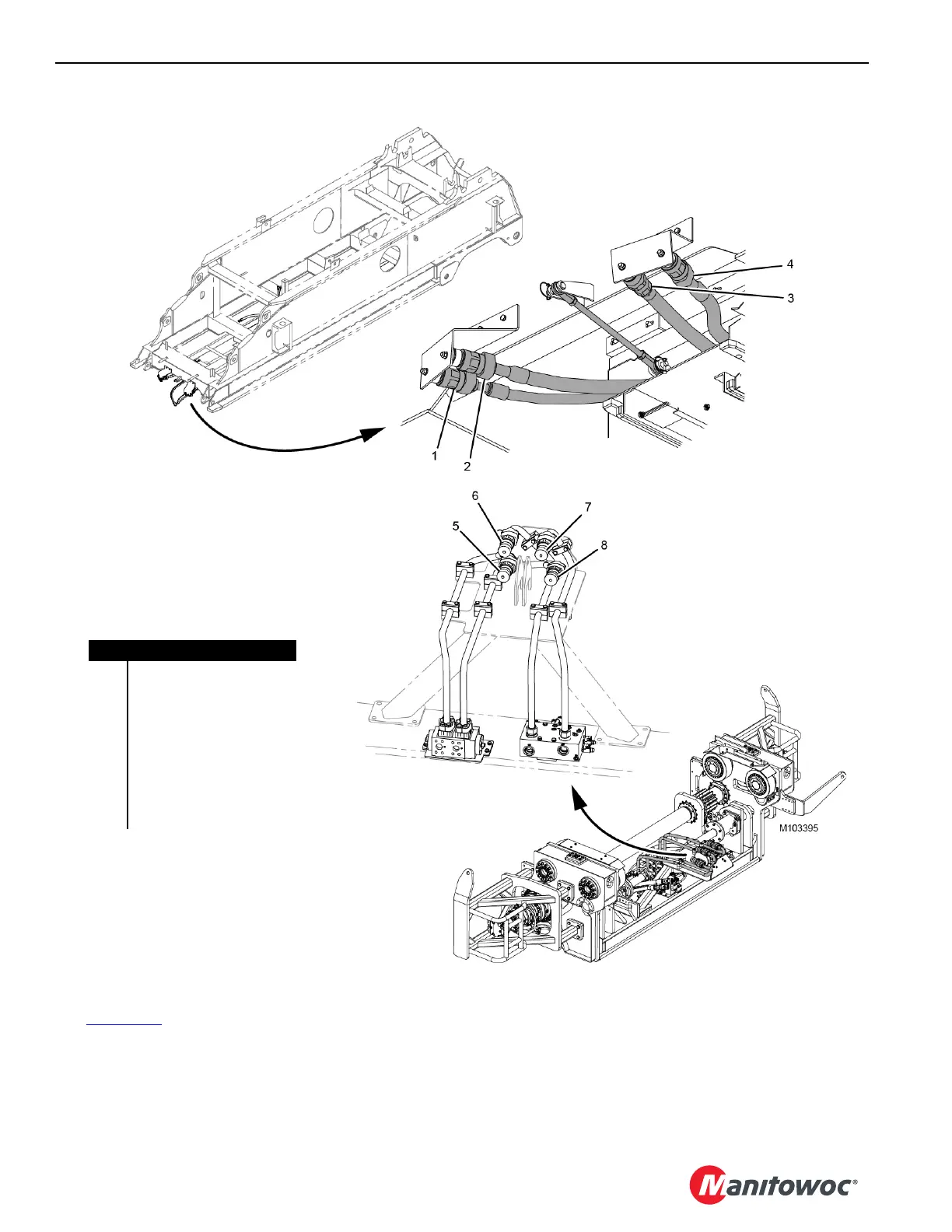

See Figure 4-20 for the following procedure.
1. Remove the hydraulic hoses (1–4) from the stored
position.
2. Connect the hydraulic hoses to the couplers (5–8) on
the actuator.
NOTE: The hoses and the corresponding couplers are
tagged with numbers. Match the numbers to
ensure proper hose connection.
Item Description
1 Hydraulic Hose Number 32
2 Hydraulic Hose Number 31
3 Hydraulic Hose Number 34
4 Hydraulic Hose Number 33
5 Coupler Number 33
6 Coupler Number 34
7 Coupler Number 32
8 Coupler Number 31
STORED POSITION
FIGURE 4-20
