Disconnecting the Hydraulic Hoses
See Figure 4-110 for the following procedure.
1. Disconnect the hydraulic hoses (1–4) on the VPC-MAX
beam from the couplers (5–8) on the counterweight tray.
2. Install the four hydraulic hoses in the stored position.

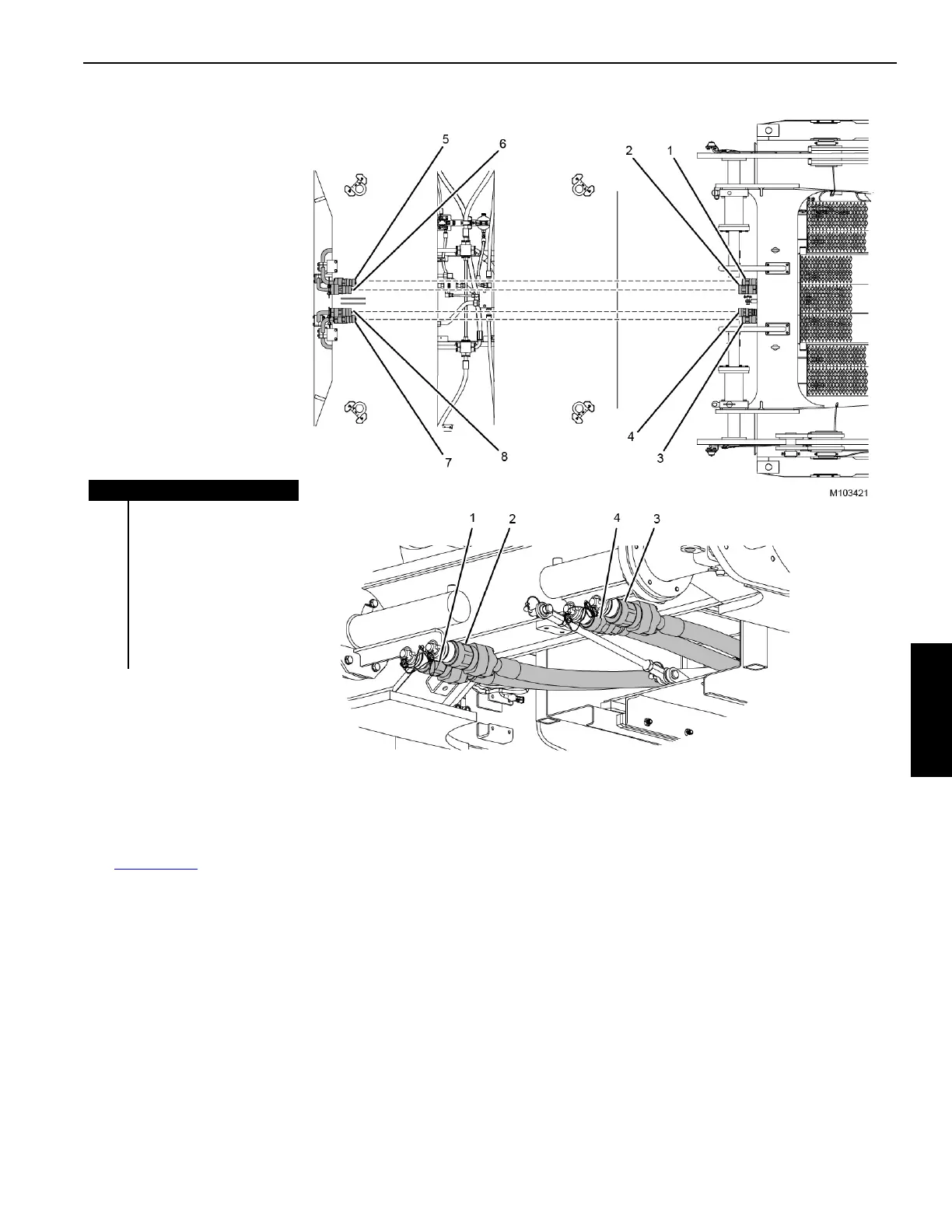

FIGURE 4-110
Item Description
1 Hydraulic Hose Number 31
2 Hydraulic Hose Number 32
3 Hydraulic Hose Number 33
4 Hydraulic Hose Number 34
5 Coupler Number 31
6 Coupler Number 32
7 Coupler Number 33
8 Coupler Number 34
STORED POSITION
