SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-92
Published 04-06-18, Control # 231-14

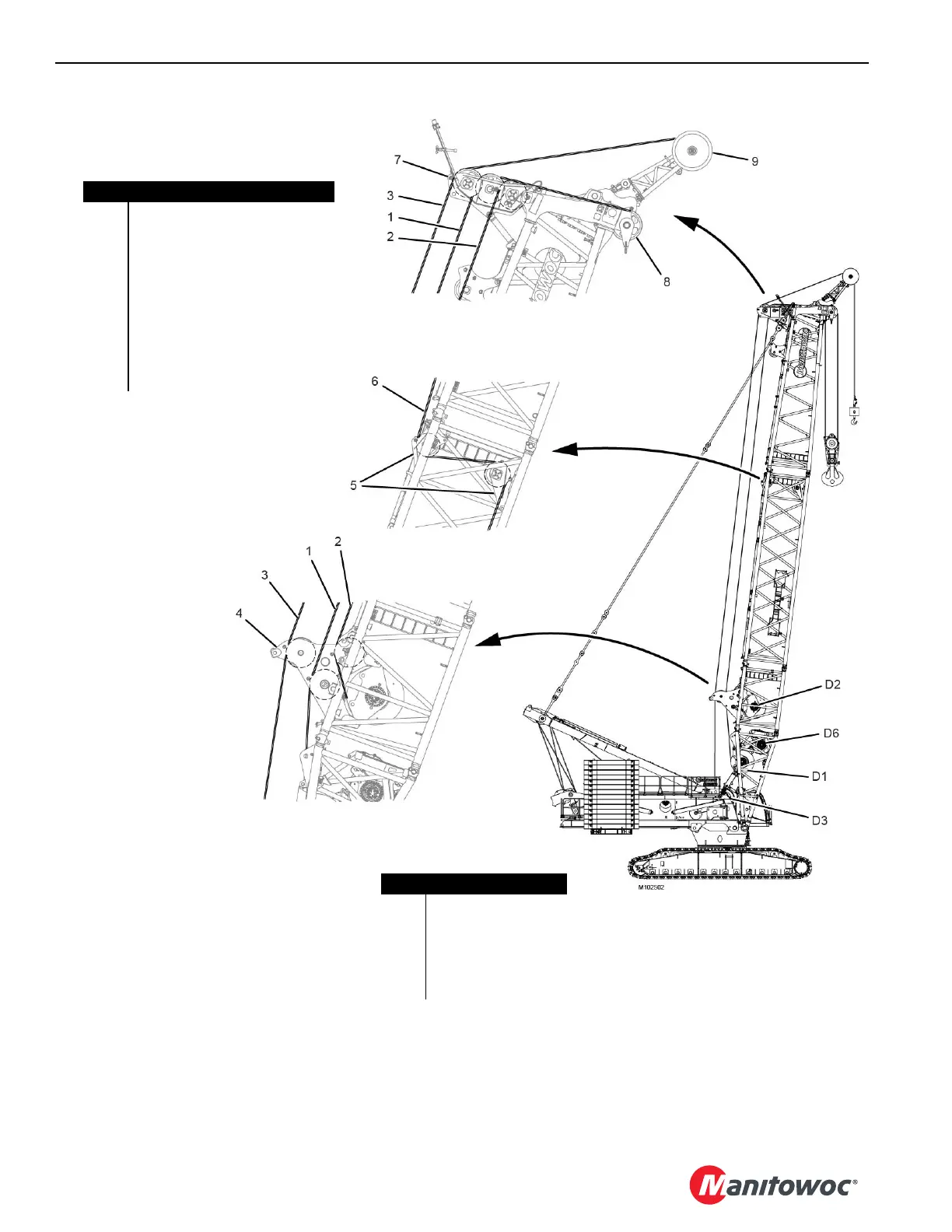

FIGURE 4-77
Item Description
1 Wire Rope from Drum 1
2 Wire Rope from Drum 2
3 Wire Rope from Drum 3
4 Wire Rope Guides on 4 m Insert
5 Wire Rope Guides in 12 m Insert
6 Wire Rope from Drum 6
7 Wire Rope Guide on Boom Top
8 Lower Boom Point
9 Upper Boom Point
Item Description
D0 Rigging Winch
D1 Main Hoist
D2 Main Hoist Option
D3 Whip Hoist
D6 Luffing Hoist
