SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-100
Published 04-06-18, Control # 231-14

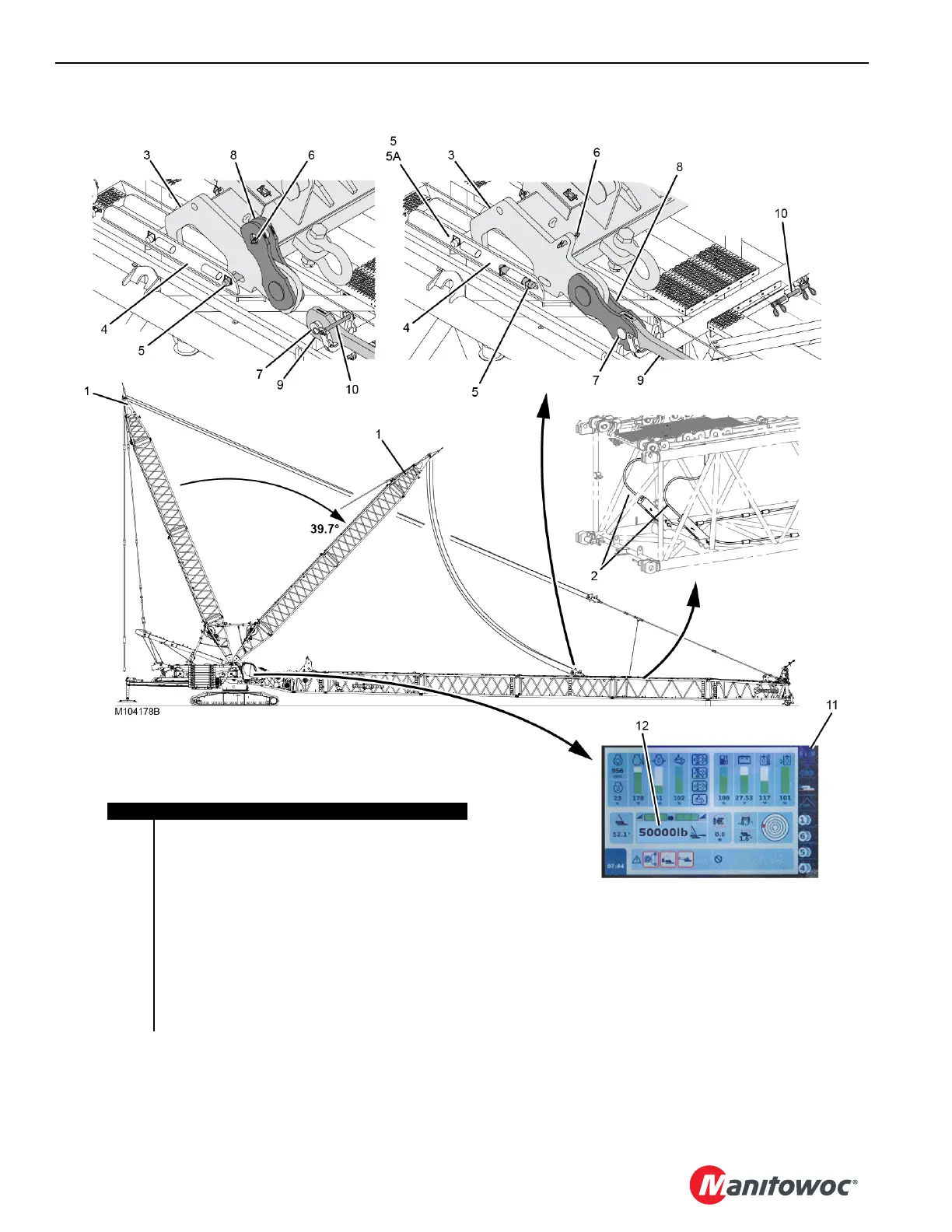

FIGURE 4-83
Item Description
1Fixed Mast
2 Intermediate Suspension Pendant (qty 2)
3 Equalizer
4Rails (2 sets)
5 Stop Pin (qty 4)
5A Roller (2) (if equipped)
6 Pin with Safety Pins (2)
7 Pin with Collar, Retaining Pin, and Cotter Pins (2)
8 Equalizer Links (4)
9 Boom Strap (2)
10 Pin with Hair-Pin Cotters (2
11 Main Display in Cab
12 Mast Tension
STORED
STORED
View A
View B
View C
View D
