SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-120
Published 04-06-18, Control # 231-14

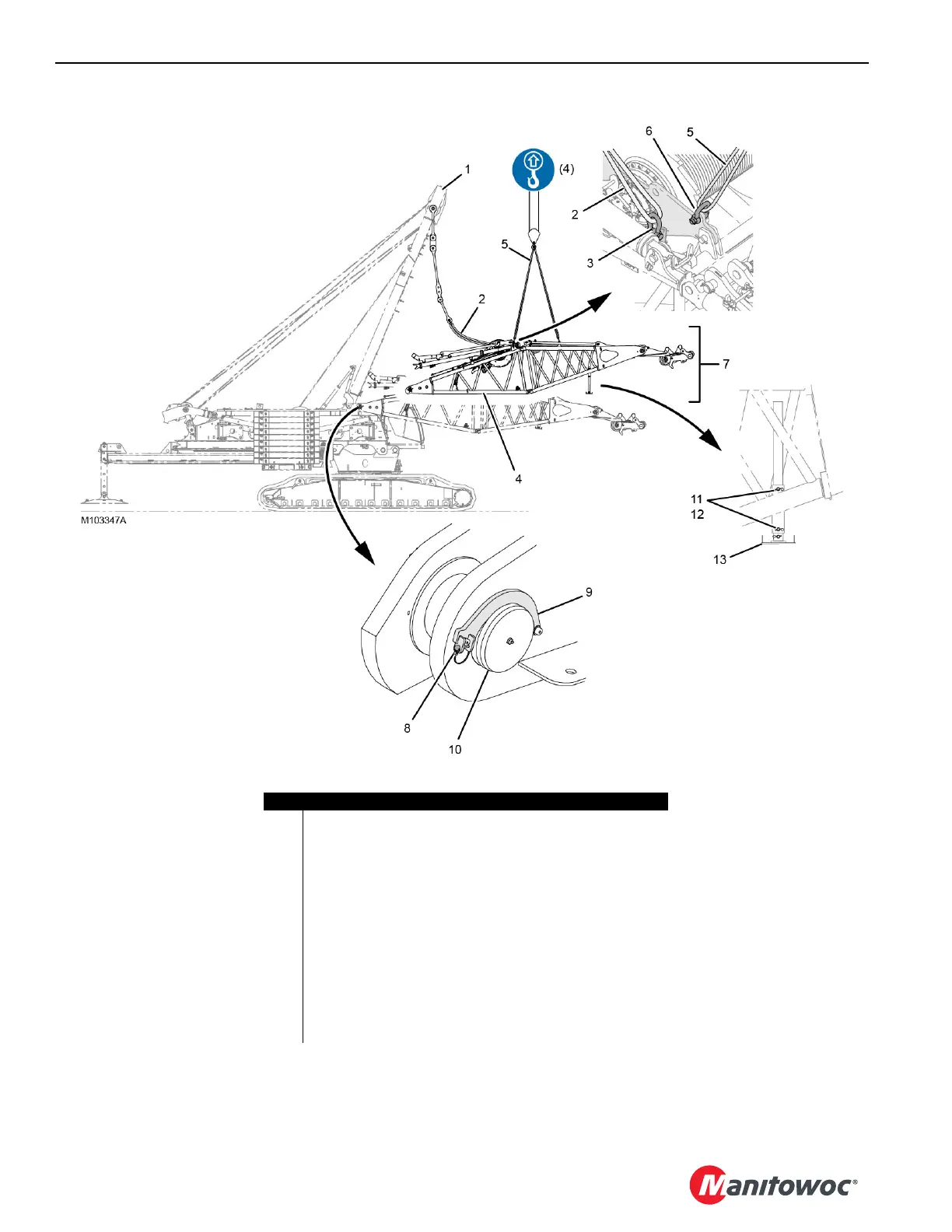

FIGURE 4-101
Item Description
1Live Mast
2 SL 1 Sling – 3,30 m (10.83 ft), 45 360 kg (100,000 lb) (qty 2)
3 SH 2 Shackle – 17 t (18.70 USt) (qty 2)
4 Fixed Mast Butt
5 SL 6 Sling – 5 m (16.40 ft), 31 751 kg (70,000 lb) (qty 2)
6 SH 2 Shackle – 17 t (18.70 USt) (qty 2)
7 Fixed Mast Transport Package
8 Locking Pin (qty 2)
9 Pivot Pin Retainer (qty 2)
10 Pivot Pin (qty 2)
11 Hair Pin Cotter (qty 8)
12 Retaining Pin (qty 4)
13 Support Pedestal (qty 2)
