SET-UP AND INSTALLATION MLC650 VPC-MAX™ OPERATOR MANUAL
4-138
Published 04-06-18, Control # 231-14

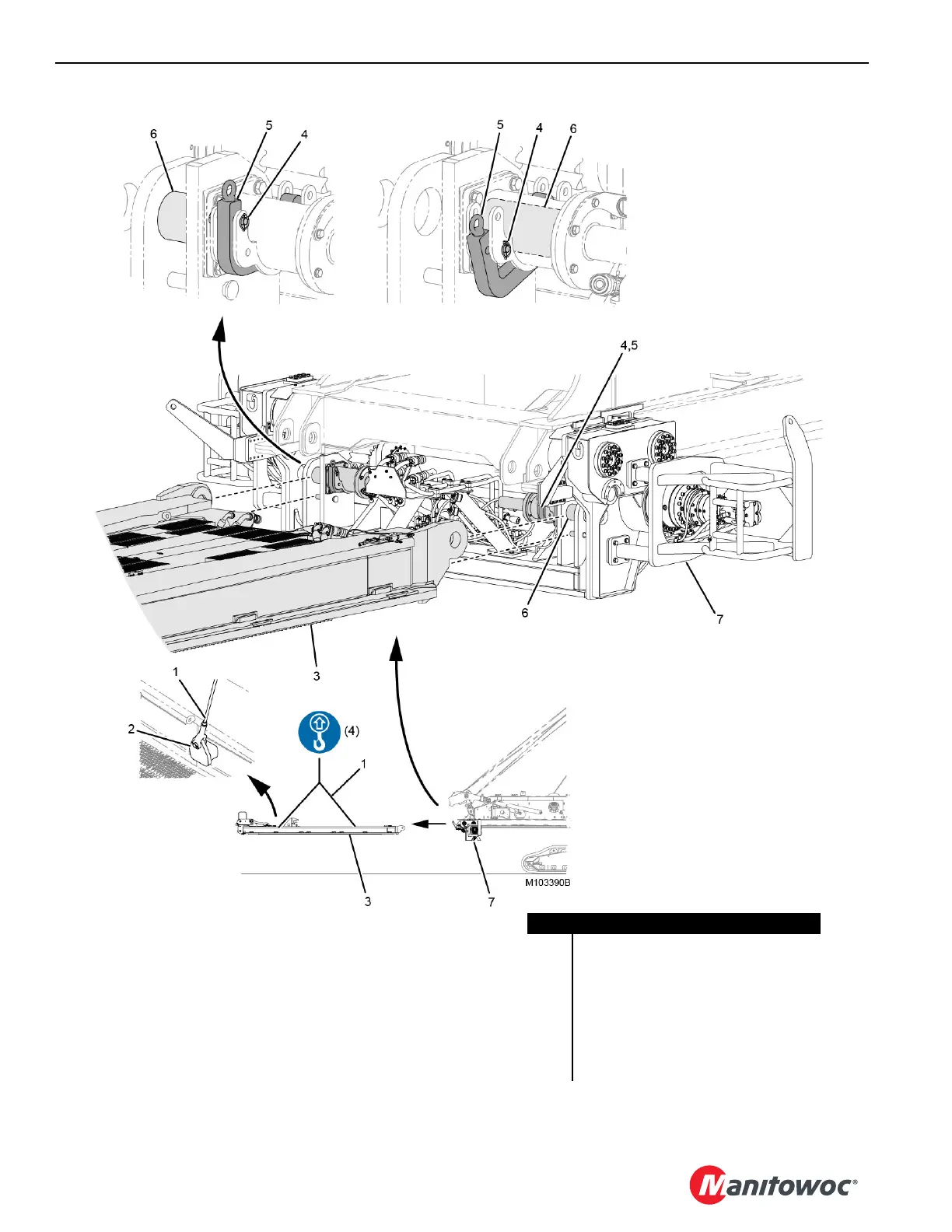

FIGURE 4-116
Item Description
1 Pendant with Pin and Cotter Pin (qty 4)
2 Lifting Lug (qty 4)
3 VPC-MAX Beam
4 Locking Pin with Lynch Pin (qty 2)
5 Pin Puller Keeper Plate (qty 2)
6 Pin Puller Pin (qty 2)
7 Actuator
View A
Engaged
View B
Disengaged
View C
View D
View E
