MAINTENANCE MLC650 VPC-MAX™ OPERATOR MANUAL
6-6
Published 04-06-18, Control # 231-14

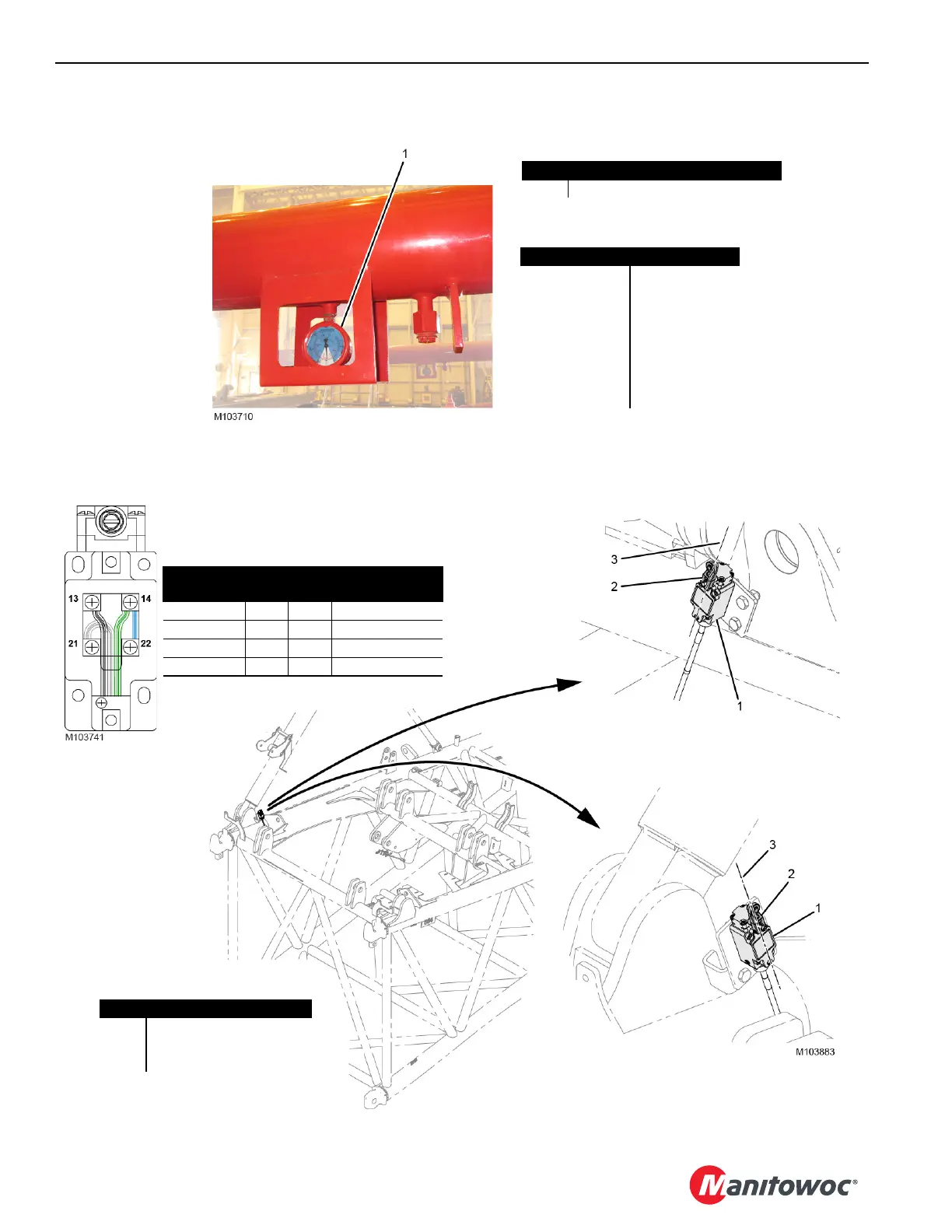

FIGURE 6-5
Pressure Reading
12,7 bar at -1°C 185 psi at 30°F
13,0 bar at 4°C 189 psi at 40°F
13,3 bar at 10°C 192 psi at 50°F
13,5 bar at 16°C 196 psi at 60°F
13,8 bar at 21°C 200 psi at 70°F
14,0 bar at 27°C 204 psi at 80°F
14,3 bar at 32°C 208 psi at 90°F
14,6 bar at 38°C 211 psi at 100°F
Item Description
1 Hydraulic Pressure Gauge (qty 2)
FIGURE 6-6
Item Description
1 Mast Stop Limit Switch
2Lever
3 Parallel Angle
Limit Switch Wiring
Wire Color
Switch
Terminals
Function
Black 13 Normally Open
Green 14 Input
White 21 Normally Closed
Blue 14 22 Jumper
OR
