Manitowoc VPC-MAX MLC650 - VPC-MAX Trolley

MAINTENANCE MLC650 VPC-MAX™ OPERATOR MANUAL
6-8
Published 04-06-18, Control # 231-14

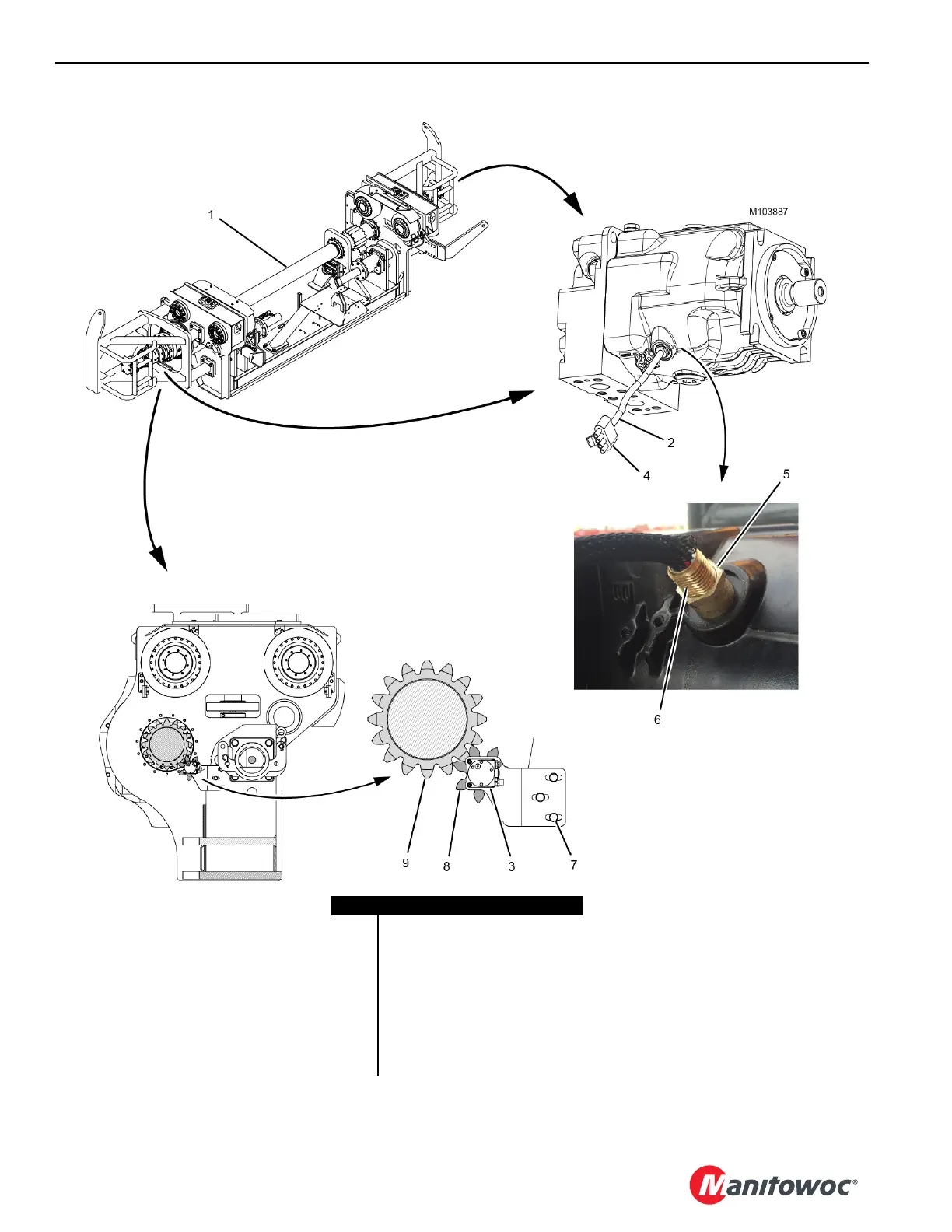

FIGURE 6-7
Item Description
1Trolley
2 Speed Sensor (qty 2)
3 Absolute Encoder
4 Speed Sensor Cable (qty 2)
5 Locknut (qty 2)
6 Speed Sensor Body (qty 2)
7 Encoder Mounting Bolt (qty 3)
8 Encoder Gear
9 Pinion Gear
