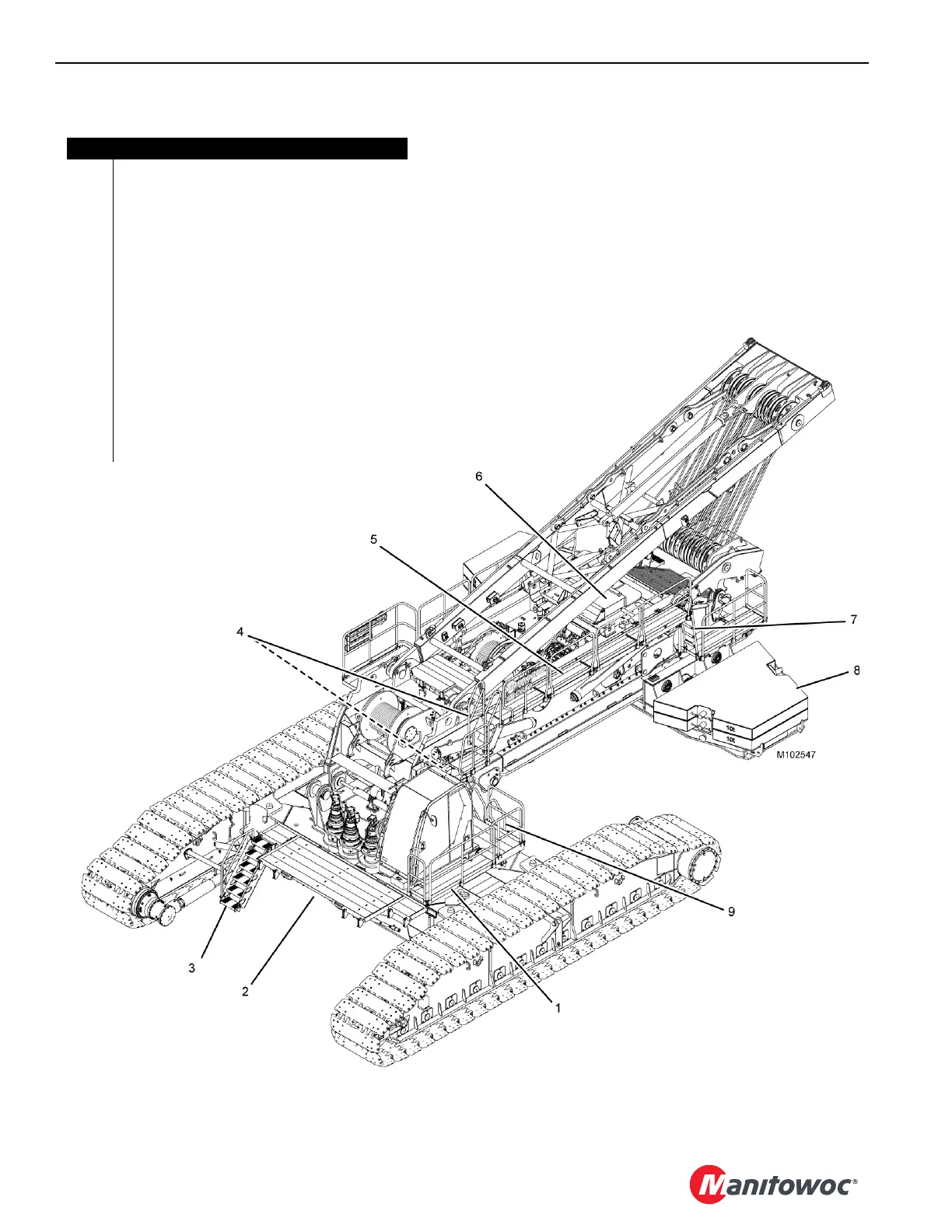

Figure 2-1. Crane Access Points
Item Description
1 Operator’s Cab Platform with Handrails
2 Carbody Platform (both ends and sides)
3 Ladder (both crawlers)
4 Left Front Ladders (2)
5 Rotating Bed Platform with Handrails (both side)
6 Engine Enclosure (non-skid)
7 Rear Folding Ladder (both sides)
8 Counterweight Tray and Boxes (non-skid)
9 Cab Ladder
10 Auxiliary Frame Pad (non-skid)
11 Ladder (beam access)
12 VPC-MAX Beam Catwalk
13 VPC-MAX Beam (non-skid)
14 Catwalk (each boom section)
15 Ladder (each boom section)
