MAINTENANCE MLC650 VPC-MAX™ OPERATOR MANUAL
6-18
Published 04-06-18, Control # 231-14

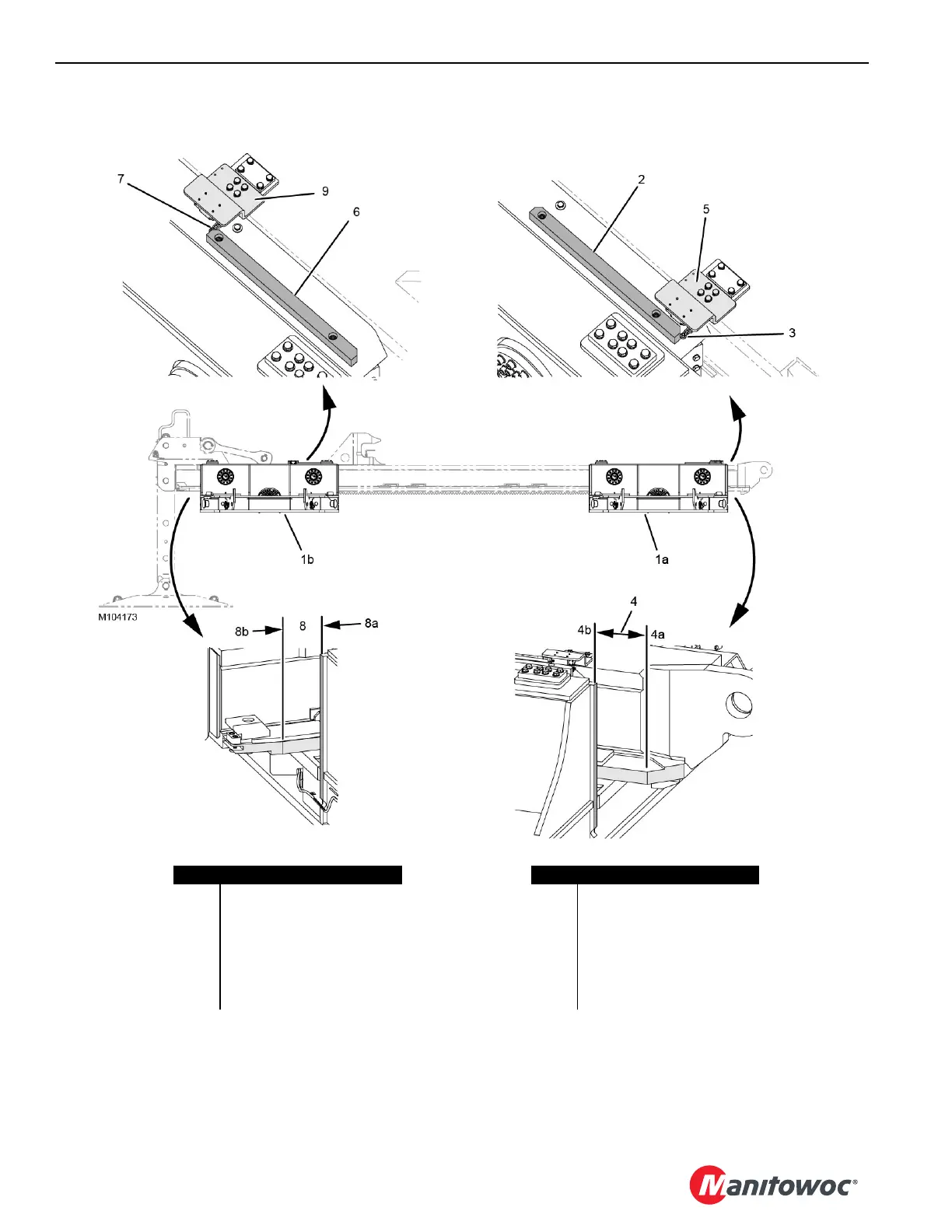

FIGURE 6-14
Item Description
1a Tray IN
2 Tray IN Tripping Plate
3 Tray IN Limit Switch
4 235 mm (9-1/4 in)
4a Angled Edge of Roller Path
4b Front Edge of Tray
5 Limit Switch Bracket
Right Side of VPC-MAX Beam
View A
View B
View C
View D
Item Description
1b Tray OUT
6 Tray OUT Tripping Plate
7Tray OUT Limit Switch
8 172 mm (6-25/32 in)
8a Rear Edge of Tray
8b Angled Edge of Roller Path
9 Limit Switch Bracket
