3A-2190-13645--2 495 FUEL SYSTEM AND CARBURETION

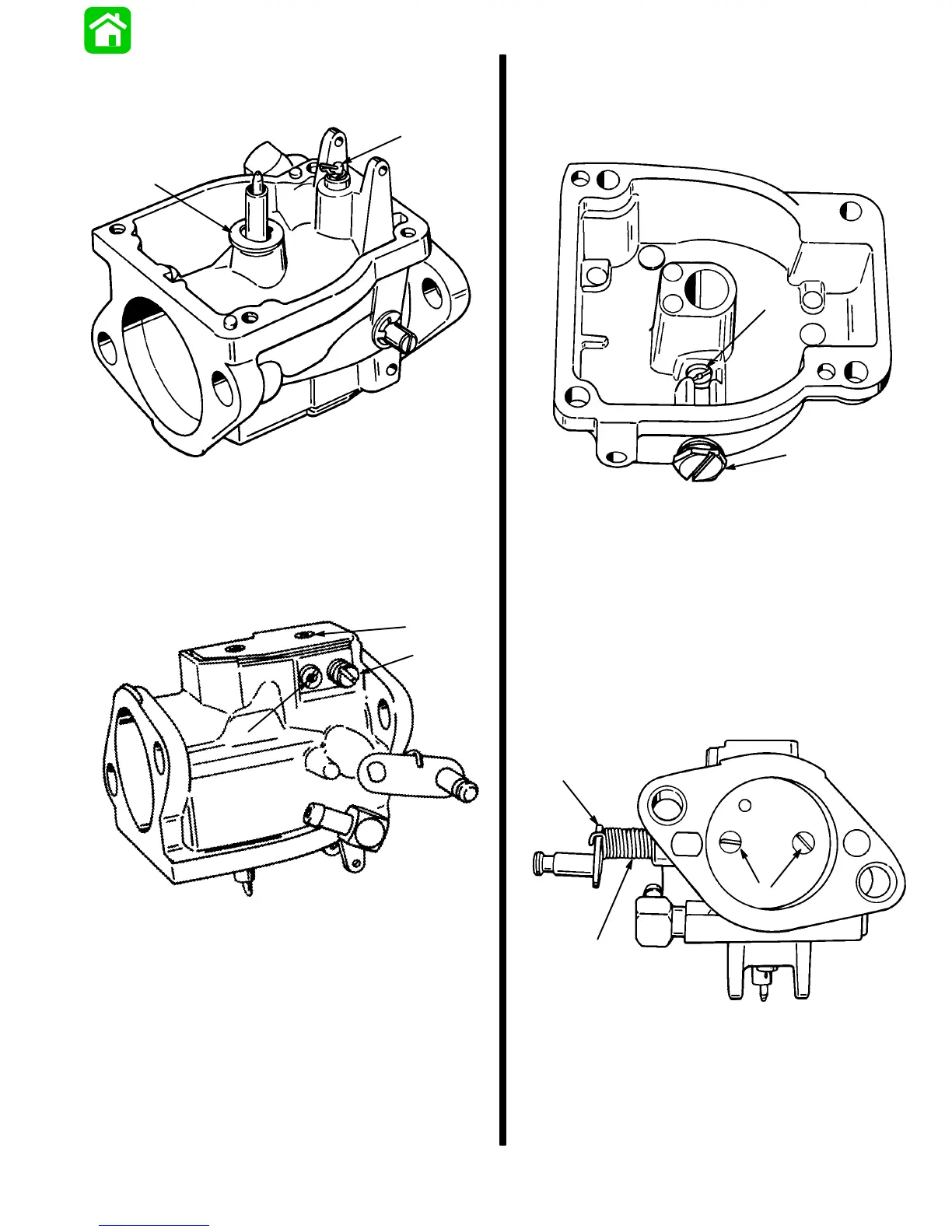

S Remove fuel inlet needle.
S Remove stem gasket.
51116
a
b
a - Fuel Inlet Needle
b - Stem Gasket
S Remove mixing chamber cover and gasket.
S Remove low speed mixture screw.
S Remove bowl vent jet (black drag) (3-Cylinder
Models only).
51116
a
b
c
a - Mixing Chamber Cover and Gasket
b - Idle Mixture Screw
c - Bowl Vent Jet
Carburetor Disassembly
S Remove main jet plug and gasket.
S Remove main jet.
51116
a
b
a - Main Jet Plug and Gasket
b - Main Jet
NOTE:
It is not necessary to disassemble carburetor
beyond this point for cleaning. Examine throttle shaft
for wear and inspect for damaged throttle shutter
plate.
If removal of throttle shaft and/or throttle shutter plate
is necessary, remove 2 screws, which secure throttle
shutter plate to throttle shaft. Remove retaining clip
from end of throttle shaft, then pull shaft out of carbu-
retor.
51117
a
b
c
a - Throttle Shaft
b - Screw (2)
c - Throttle Shaft Spring
