Mariner 70 - Side Mount Remote Control Wiring Diagram

6A-8 POWER TRIM 90-13645--2 495

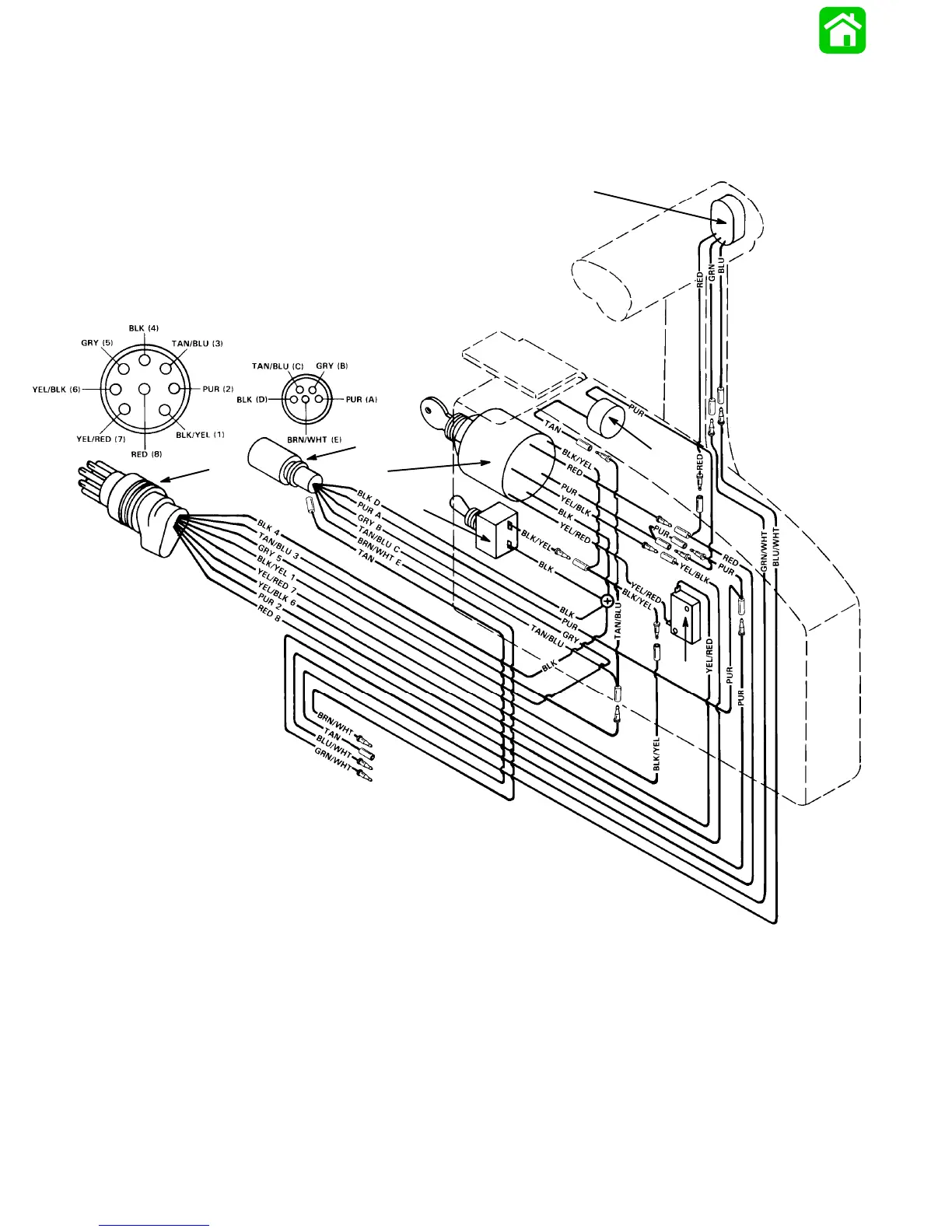

Side Mount Remote Control
Wiring Diagram
23891
a
b
c
d
e
f
g
BLK DBLACK
BLU DBLUE
BRN DBROWN
GRY DGRAY
GRN DGREEN
PUR DPURPLE
RED DRED
TAN DTAN
WHT DWHITE
YEL DYELLOW
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
g - Trim/Tilt Switch
