Mariner 70 - Reference Views

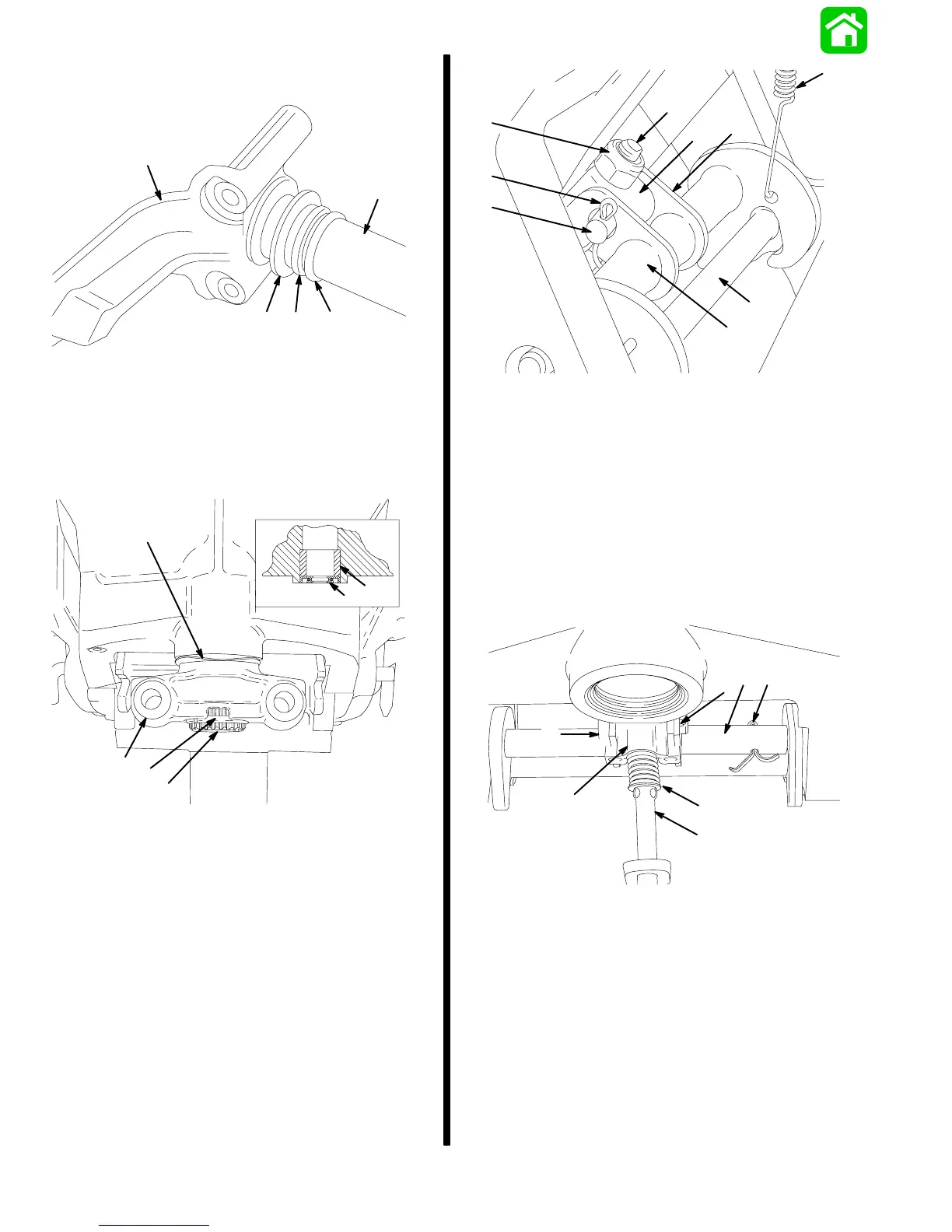

5B-10 90-13645--2 495LOWER UNIT
Reference Views
21046
a
b
cd e
a - Steering Arm
b - Swivel Pin
c - Thrust Washer (Aluminum side towards swivel bracket)
d - Spacer (Upper)
e - O-Ring
Swivel Pin/Steering Arm
21055
a
b
c
d
e
f
a - Swivel Pin
b - Retaining Ring
c - Yoke
d - Wave Washer
e - Bushing (Lower)
f - Oil Seal (Lips Face Down)
Lower Mount Point (Yoke)
21054
a
c
b
d
e
f
g
h
i
a - Push Rod End
b - Nut
c - Push Rod Yoke
d - Cotter Pin
e - Clevis Pin
f - Reverse Lock Hook Shaft Arm
g - Reverse Lock Hook Shaft
h - Return Spring
i - Tilt Pin
Non Power Trim Reverse Lock Hook
(Shown From Above)
21053
a
b
c
e
f
f
d
a - Push Rod Shaft
b - Spring
c - Push Rod Yoke
d - Clevis Pin
e - Reverse Lock Hook Shaft
f - Cotter Pin (2)
Non Power Trim Reverse Lock Hook
(Shown From Below)
