Mariner 70 - Page 217

5B-1190-13645--2 495 LOWER UNIT
21048
abc
d
e
f
f
cb
d
e

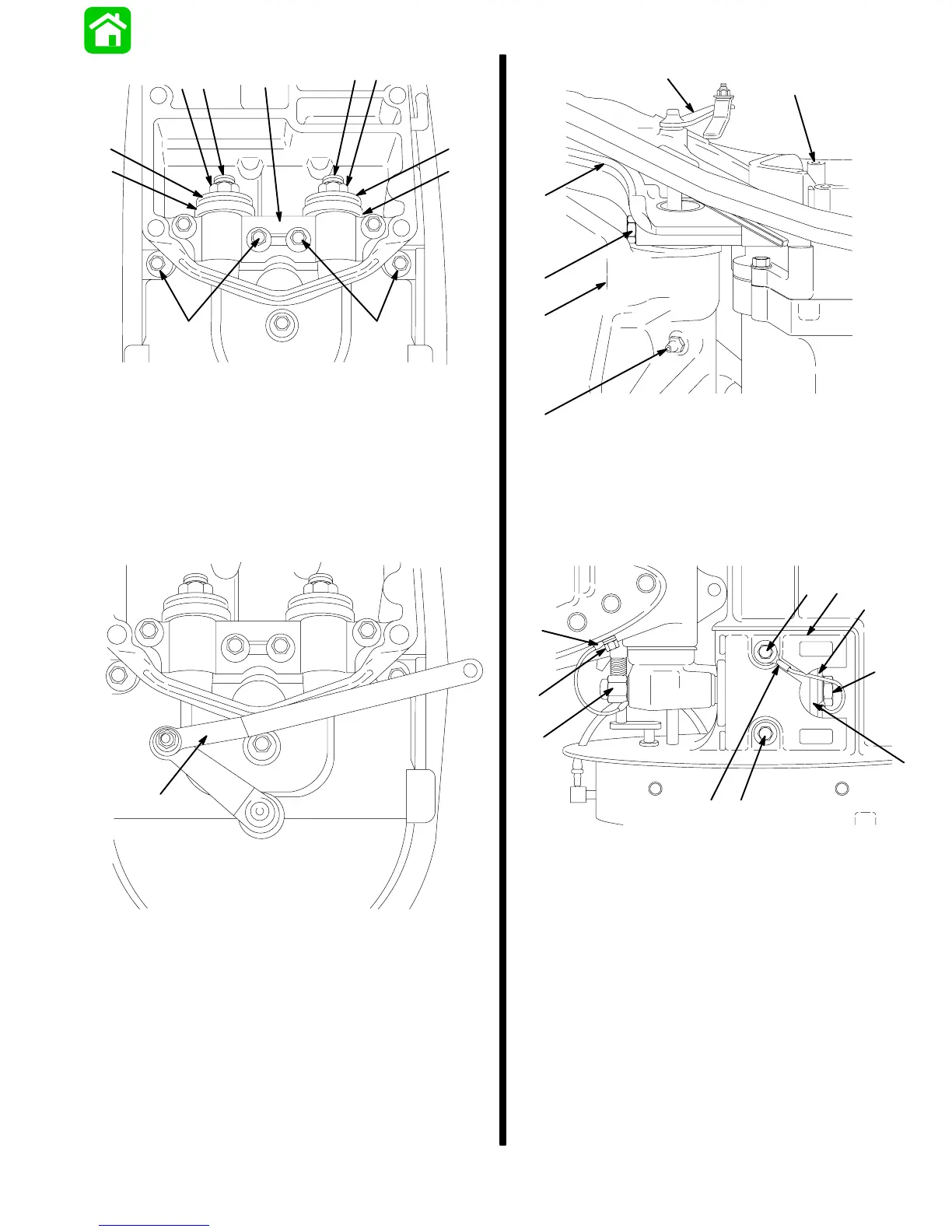

a - Upper Mount
b - Nut (2) [Torque to 80 lb. ft. (108.5 Nm)]
c - Bolt (2)
d - Rubber Space (2)
e - Washer (2)
f - Bolt (4) [Torque to 23 lb. in. (31.2 Nm)]
Upper Mount
21049
a
a - Upper Shift Linkage
21050
a
b
c
d
e
f
a - Upper Shift Linkage
b - Steering Arm/Swivel Pin
c - Upper Mount Bolt
d - Swivel Bracket
e - Grease Fitting
f - Mid-Section Drive Shaft Housing
21051
a
bc
d
e
f
g
h
i
c
a - Lower Mount Clamp
b - Ground Strap
c - Bolt (2) [Torque to 15 lb. ft. (20.3 Nm)]
d - Lower Mount Bolt
e - Washer
f - Washer
g - Nut [Torque to 50 lb. ft. (67.8 Nm)]
h - Ground Strap
i - Bolt
Lower Mount (Port Side Shown)
