2B-990-13645--2 495 ELECTRICAL AND IGNITION

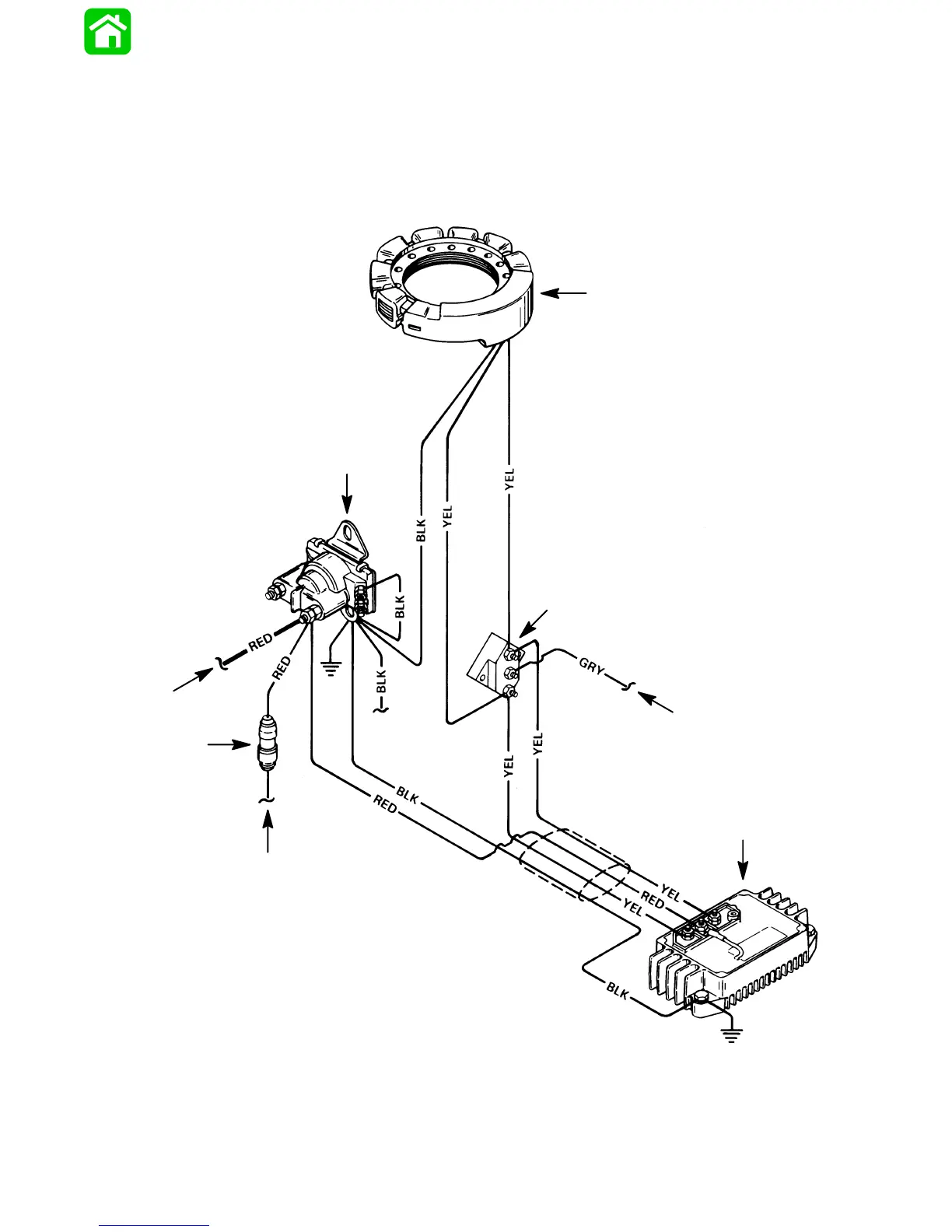

3 Cylinder 16 and 24 Ampere Battery
Charging Wiring Diagram
IMPORTANT: After electrical connections are
made, coat all terminal connections using Quick-
silver Liquid Neoprene (92-25711), to avoid corro-
sion.
50405
BLK BLACK
BLU BLUE
GRY GRAY
RED RED
YEL YELLOW
a
b
c
d
e
f
g
h
a - Stator
b - Terminal Block
c - ToTachometer
d - Voltage Regulator/Rectifier
e - To Remote Control Harness
f - 20 Ampere Fuse
g - To Battery
h - Starter Solenoid
