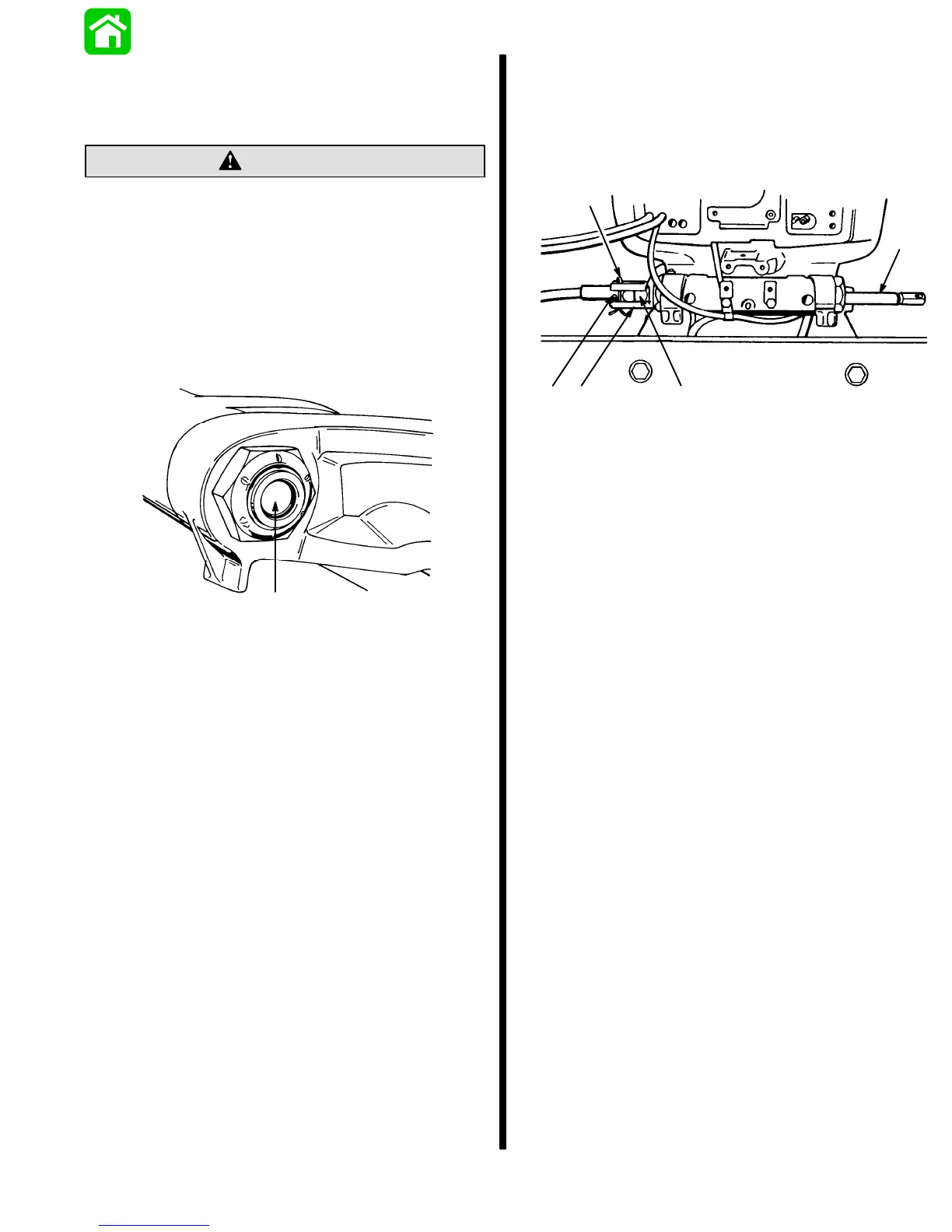

7A-1ENGINE ATTACHMENTS90-13645--2 495
Steering Cable and Steering
Link Rod Installation
Control cables must be the correct length when
installed. Cables that are too long may bind or
kink putting extra stress on cables.
CAUTION
1. Install steering mount and steering wheel in
accordance with installation instructions that
accompany each.
2. Lubricate seal inside of engine tilt tube and entire
steering cable end with Quicksilver 2-4-C
w/Teflon.
51890
a
a - Seal
IMPORTANT: Before installing steering cable into
tilt tube, lubricate seal and entire cable end with
Quicksilver 2-4-C w/Teflon.
3. Insert steering cable end thru engine tilt tube and
secure steering cable to tilt tube with steering
cable attaching nut as shown. Torque nut to
35 lbs. ft. (47.5 Nm).
4. Install rubber bumper on inside of locking sleeve,
then install locking sleeve over steering cable at-
taching nut ) and secure with cotter pin . Spread
ends of cotter pin. Be sure to install cotter pin so
that it is located in-between attaching nut and
grease fitting , as shown.
50130
ab
c
d
e
a - Cable Nut
b - Locking Sleeve
c - Cotter Key
d - Grease Fitting
e - Steering Cable
To Next Page
