6A-27POWER TRIM90-13645--2 495

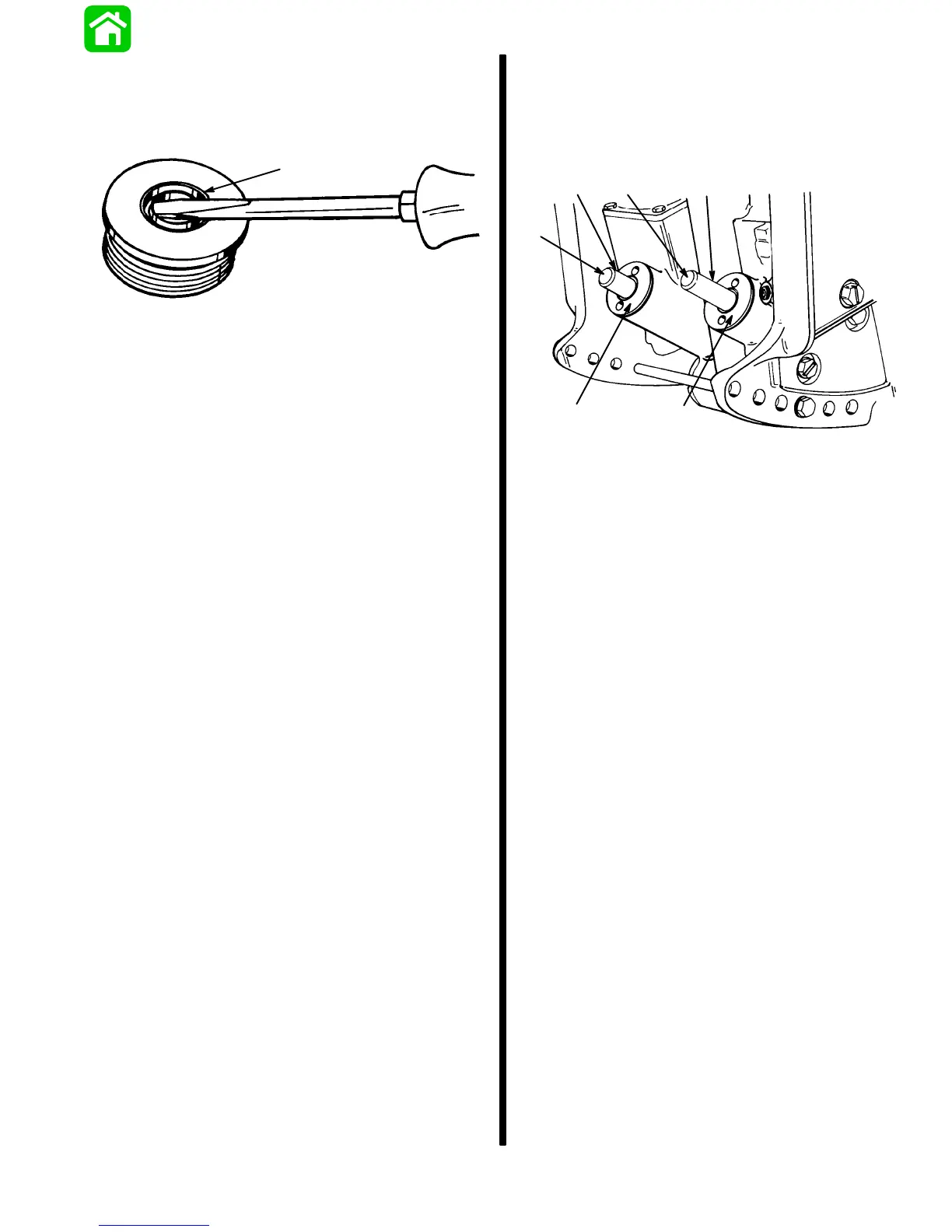

Trim Rod End Cap Seal
1. Inspect trim cap end seal and replace if damaged
or if seal does not keep trim rod clean.
51343
a
a - Seal (Remove as shown)
2. Install new seal with seal lip up.
TRIM ROD INSTALLATION
IMPORTANT: Components must be free of dirt and
lint. Any debris in the system can cause system
to malfunction.
NOTE:
Install trim rod with check valve in the port (left)
cylinder.
1. Apply Quicksilver Power Trim and Steering Fluid
on all O-rings and seals before installation.
2. Install trim rods and caps. Use Installation Tool
(91-44487A1) or Spanner Wrench (91-74951) to
tighten caps securely.
51353
aa
bb
c
c
a-Trim Rods
b-Cylinder End Caps
c-Rod End Rollers (lubricate with Quicksilver Anti-Corrosion Grease or
2-4-C w/Teflon)
