6B-32 90-13645--2 495POWER TRIM
BRUSH REPLACEMENT

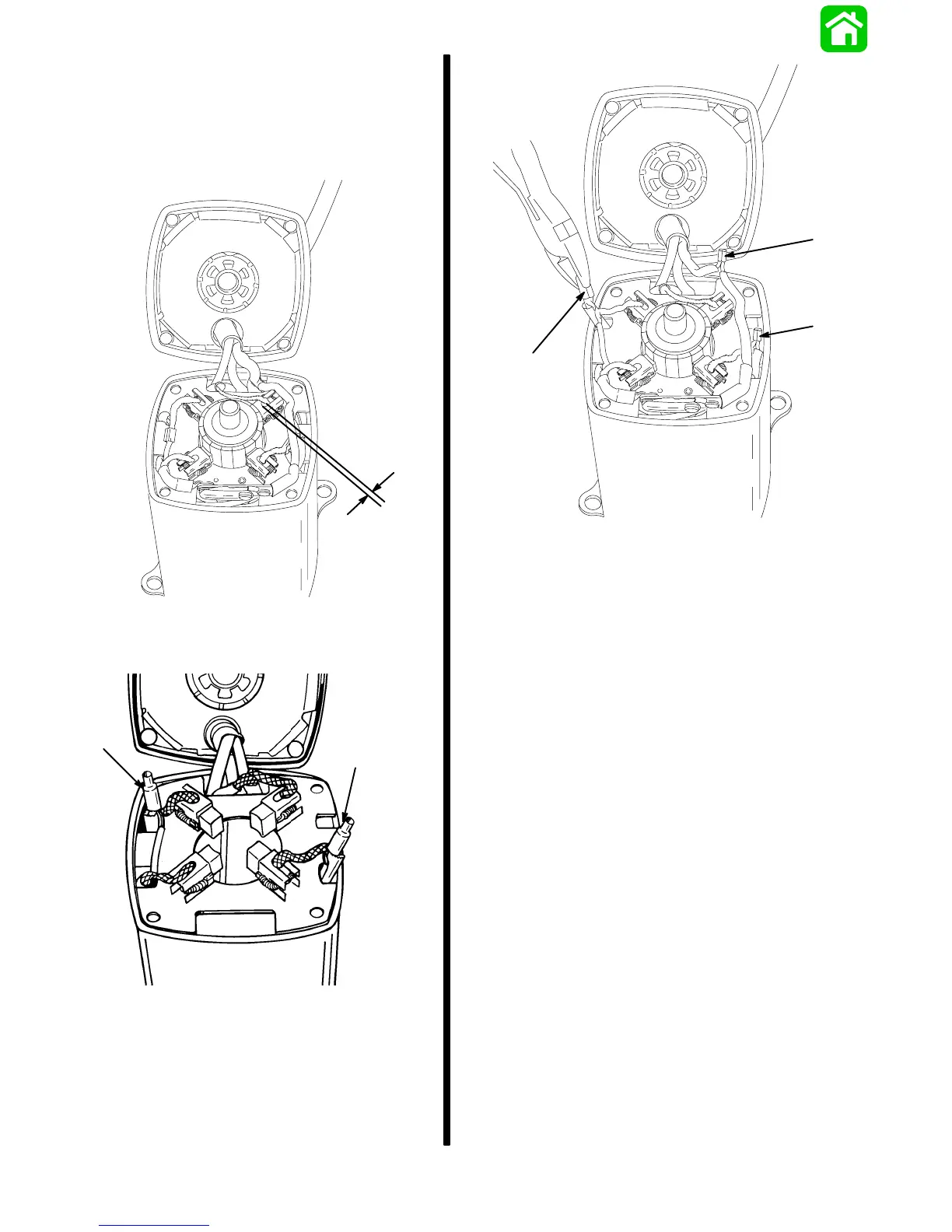

1. Brush replacement is required if brushes are pitted,
chipped, or if distance (a) between the brush pigtail
and end of brush holder slot is 1/16 in. or less.
Check distance with armature installed.
18457
a
a - 1/16 in.
2. To replace brush card, remove insulators.
51350
a
a
a - Insulators
3. Remove metal connectors.
a
a
18466
a
a - Metal Connectors
4. Install new brush card.
5. Crimp new metal connectors onto wires.
6. Insulate connections with heat shrink tubing.
To Next Page
