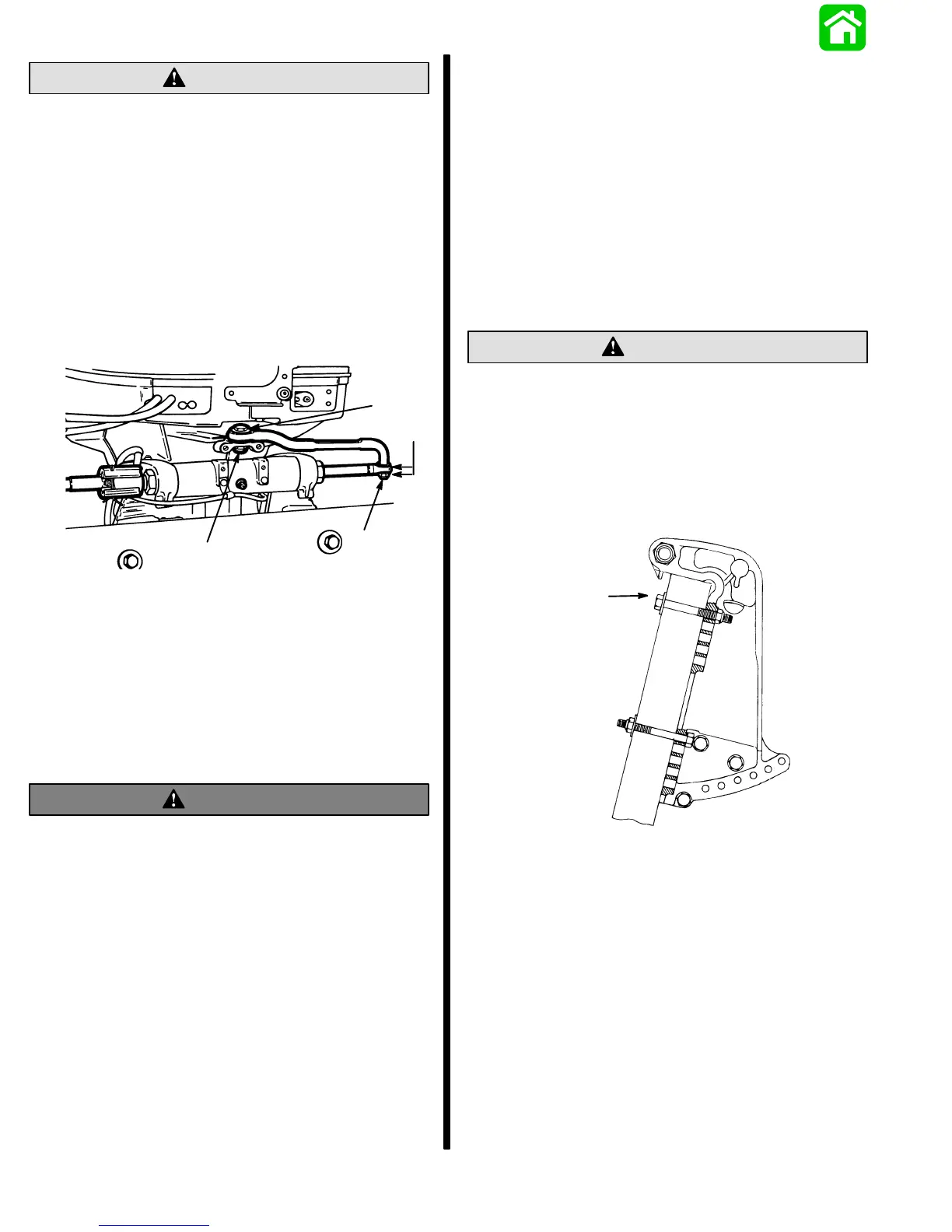

7A-2 ENGINE ATTACHMENTS 90-13645--2 495
Steering link must be installed in rear hole in
engine steering arm. Failure to install in rear hole
may cause damage to steering system.
CAUTION
5. Lubricate hole in end of steering cable with Quick-
silver 2-4-C w/Teflon and assemble steering link
rod to steering cable with 2 flat washers and lock-
nut as shown. Torque locknut to 120 lbs. in. (13.5
Nm) maximum and back off 1/4- turn.
6. Lubricate ball joint in steering link rod with 30W oil
and assemble to rear hole in engine steering arm
with pivot bolt and locknut. Torque pivot bolt, then
locknut to 20 lbs. ft. (27.1 Nm).
50099
a
b
c
d
a - Flat Washers (2)
b - Locknut
c - Pivot Bolt
d - Locknut
Ride-Guide Attachment –
Dual Front Installation
(92876A2)
WARNING
Quicksilver Super Ride-Guide Steering (Dual
Cables) must be used with this attaching kit.
Failure to adhere to this requirement could result
in steering system failure.
Installation and Maintenance
IMPORTANT: The distance from each engine’s
centerline to the side of transom opening must be
a minimum of 16 (40.6cm).
This kit contains all necessary parts to connect
both engines to Ride-Guide Steering cables for
22-1/2 thru 24-1/2, refer to Figure 14, page 7A-14
for additional extension couplers.
Cable Routing Types
Use “1” or “2”, following, to route steering cables:
1. Parallel cable routing: Cables routed together
down starboard side of boat. Refer to “Parallel
Routed Steering Cables and Attaching Kit Instal-
lation,” immediately following.
2. Opposite side cable routing: One cable routed
down starboard side of boat and one cable routed
down port side of boat. Refer to “Opposite Side
Routed Steering Cables and Attaching Kit Instal-
lation,” page 7A-8.
With this kit installed, the upper (engine)
mounting bolts must be installed so that hex head
end of bolts is on the inside of boat transom, as
illustrated below. Failure to install upper
mounting bolts, as shown in illustration, could
result in interference between outer steering
cable locking sleeve and ends of mounting bolts
when engine is tilted up.
CAUTION
Install Upper Bolts so
that Hex Head End of
Bolts Are on the
Inside of Boat
Transom
