6A-2 POWER TRIM 90-13645--2 495

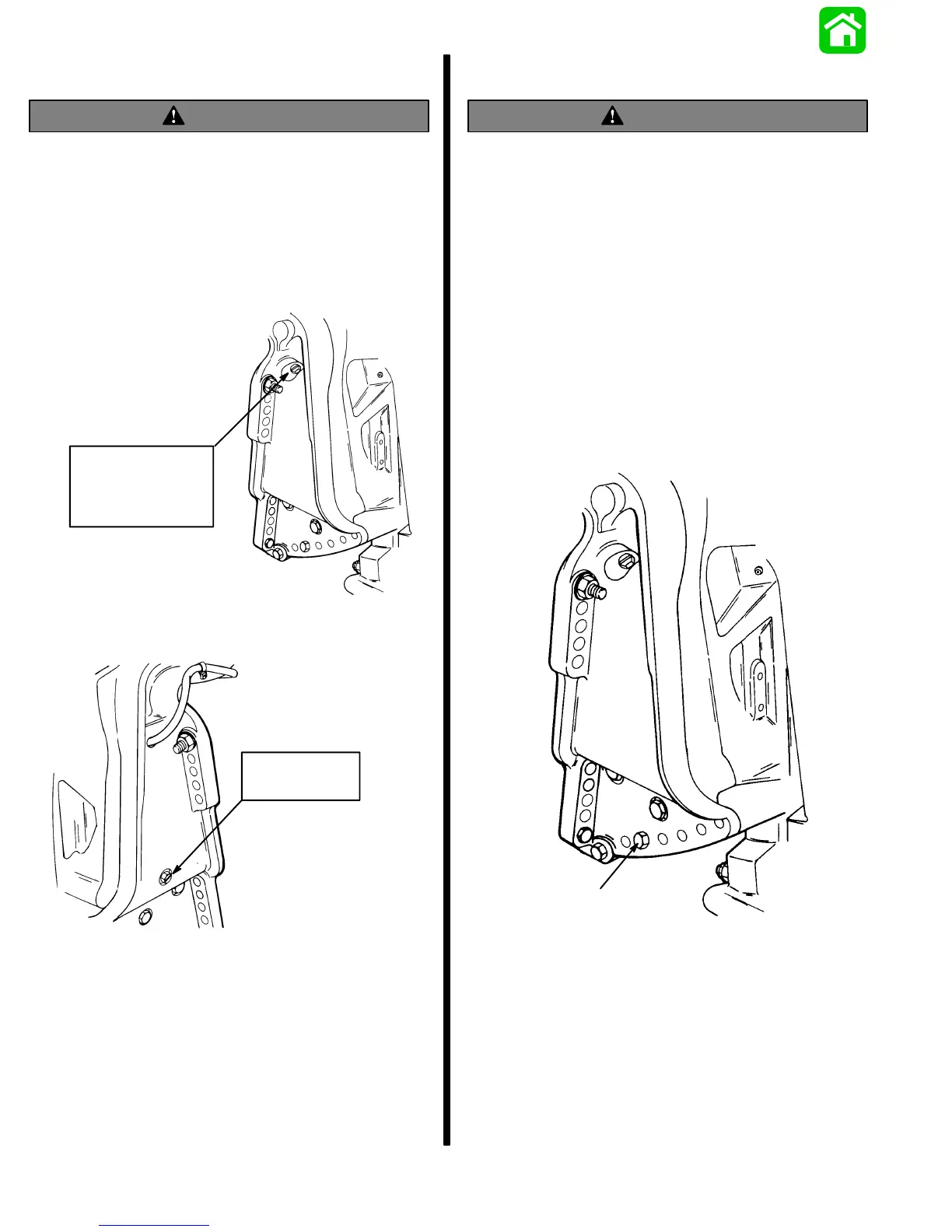

Tilting Outboard Manually
WARNING
Before opening the manual release valve knob,
insure all persons are clear of outboard as
outboard will drop to full “Down” when valve is
opened.
The outboard can be raised or lowered manually by
opening the manual release valve 3 to 4 turns coun-
terclockwise. Close manual release valve to hold out-
board at the desired tilt position.
23321
Fill Screw (System is
Pressurized, DO
NOT Open unless
Outboard is Tilted to
Full Up Position)
Manual Release
Valve
Trim “In” Angle Adjustment
WARNING
Boat operation with outboard trimmed to the full
“In” trim angle [not using the trim angle
adjustment bolt] at planing speed may result in
undesirable and/or unsafe steering conditions. A
water test for handling/steering conditions is
required after any trim angle adjustments.
IMPORTANT: Some boat/motor combinations not
using the trim angle adjustment bolt and trimmed
to the full “In” trim angle position may not exhibit
any undesirable and/or unsafe handling and/or
steering characteristics at planing speed. If so,
not using the trim angle adjustment bolt may be
advantageous to acceleration and planing. A wa-
ter test is required to determine if these character-
istics apply to a particular boat/motor combina-
tion.
23321
a
a - Trim Angle Adjustment Bolt
