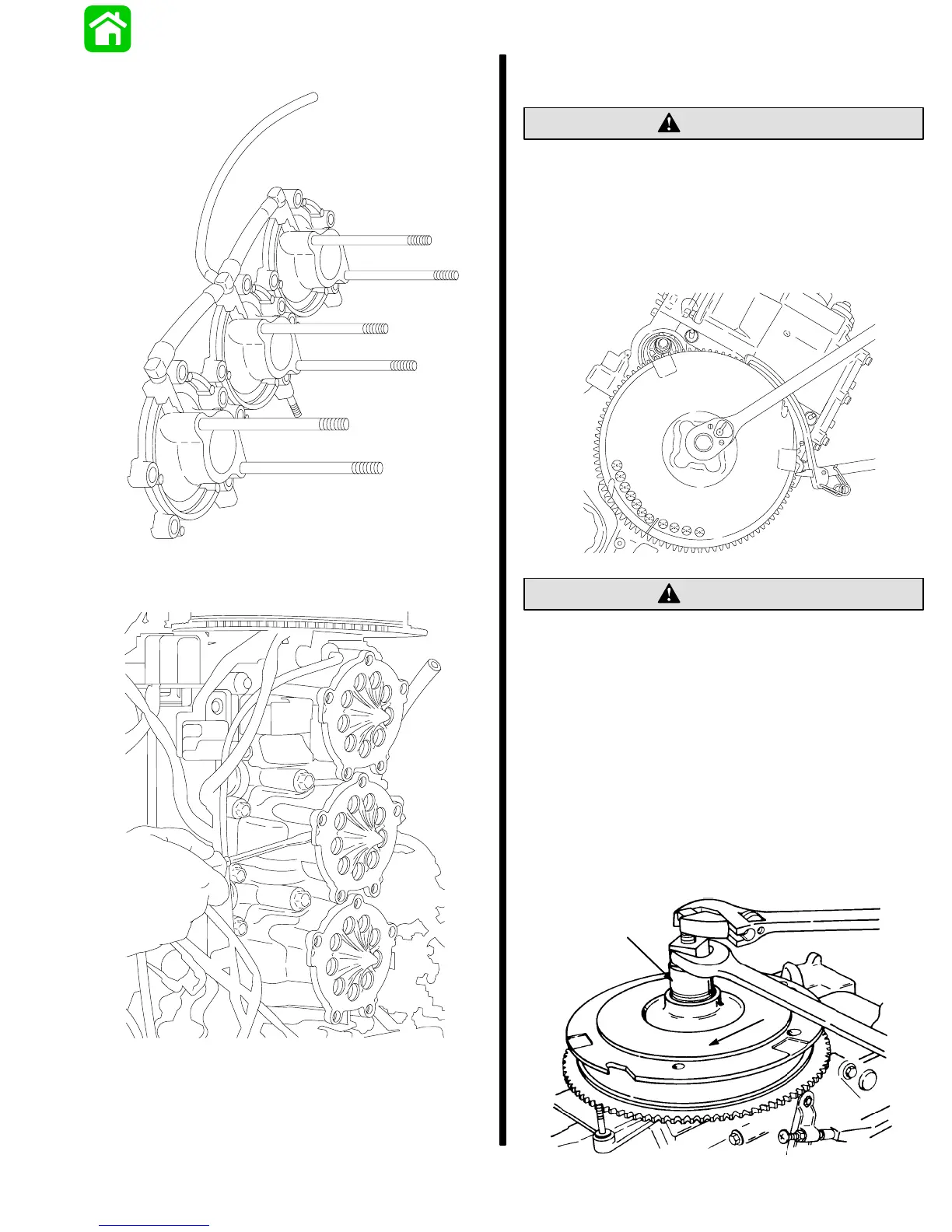

4A-1190-13645--2 495 POWERHEAD
11. The intake manifolds may be removed as 1-unit.
19330
12. Pry off each Reed-Block, as shown, using screw-
driver.
19549
Flywheel Removal
DO NOT strike end of puller center bolt to remove
flywheel, or damage may result to crankshaft or
bearings.
CAUTION
1. Remove flywheel cover from powerhead.
2. While holding flywheel with Flywheel Holder
(91-52344), remove flywheel nut and washer.
20344
Crankshaft damage may result if a protector cap
is not used between crankshaft and puller.
CAUTION
3. Install a crankshaft Protector Cap (91-24161) on
end of crankshaft, then install Flywheel Puller
(91-73687A1) into flywheel.
4. Install crankshaft Protector Cap (91-24161) on
the end of crankshaft, then install Flywheel Puller
(a) (91-73687A1) into flywheel (b).
NOTE:
Neither heat nor hammer should be used on
flywheel to aid in removal as damage to flywheel or
electrical components under flywheel may result.
5. Remove flywheel.
a
b
51124
To Next Page
