2D-1190-13645--2 495 ELECTRICAL AND IGNITION

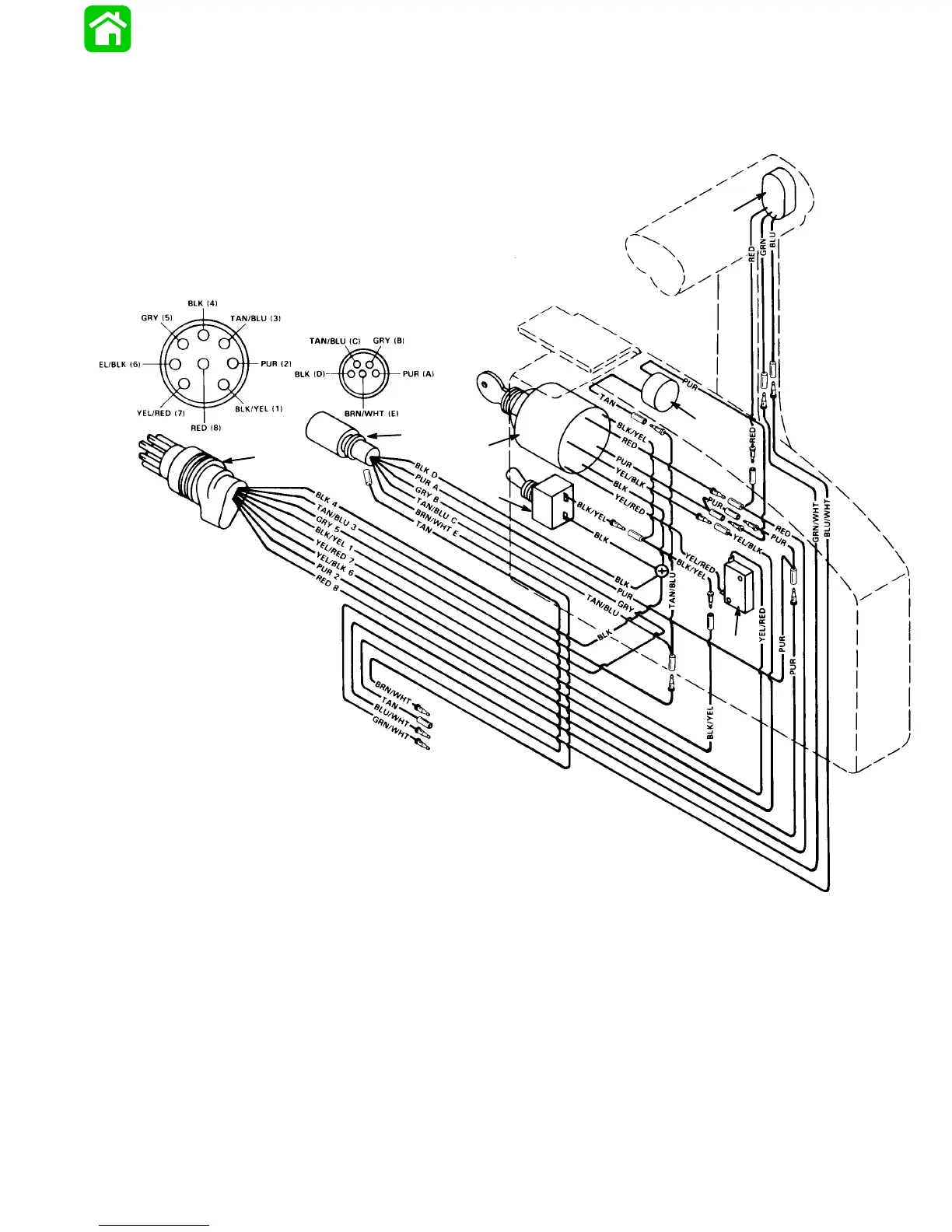

COMMANDER 2000 Side Mount Remote Control
(Power Trim/Tilt Electric Start With Warning Horn)
Wiring Diagram
23891
BLK BLACK
BLU BLUE
BRN BROWN
GRY GRAY
GRN GREEN
PUR PURPLE
RED RED
TAN TAN
WHT WHITE
YEL YELLOW
a
b
c
d
e
f
g
a - Ignition/Choke Switch
b - Emergency Stop Switch
c - Neutral Start Switch
d - Tachometer/Accessories Harness Connector
e - Wiring Harness Connector
f - Warning Horn
g - Trim/Tilt Switch
