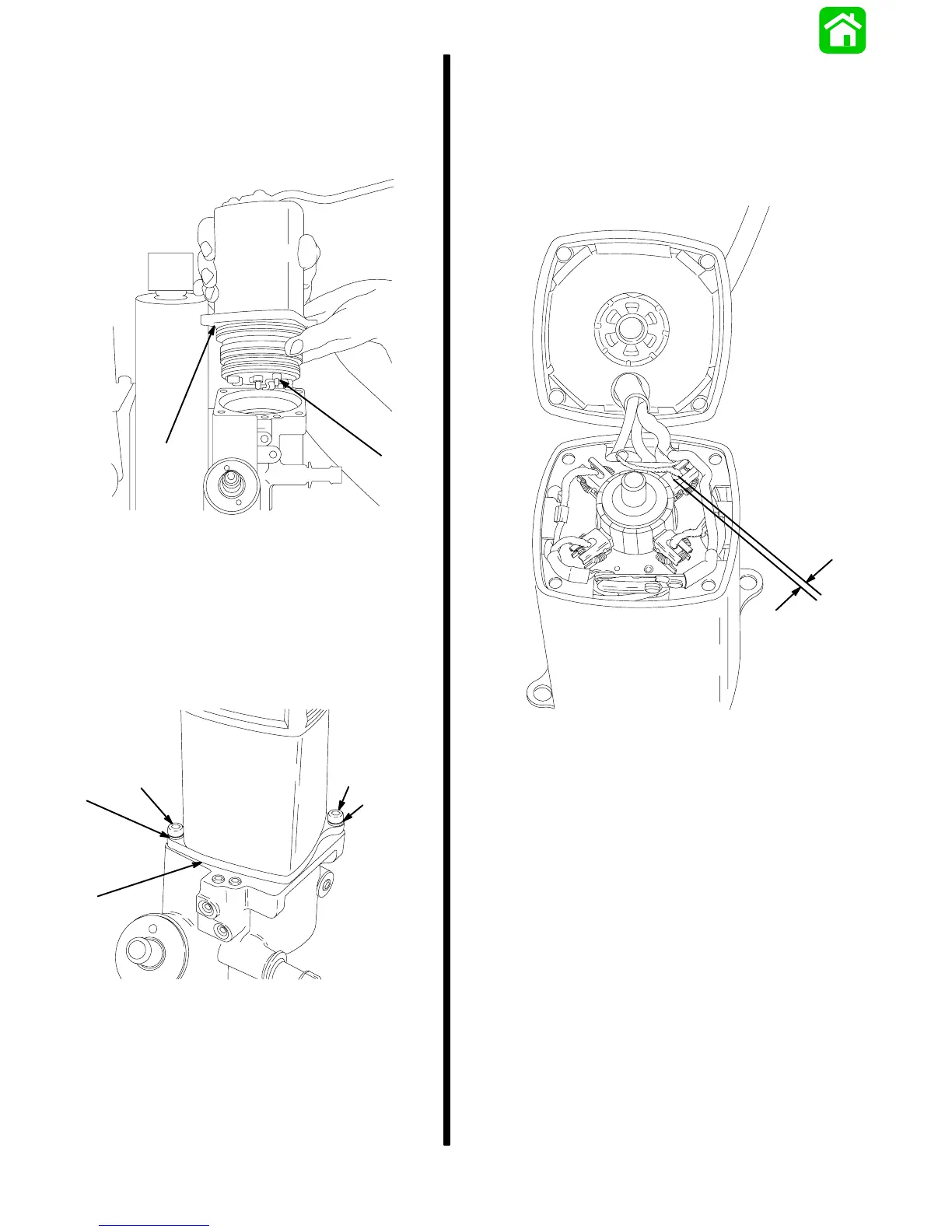

8. Install O-ring [2.739 (69.57mm) I.D.]. It is recom-
mended O-ring be installed even if pump did not
originally have O-ring.
Insert pump and motor assembly into Power Trim
housing, with rocker arm positioned as shown.
18453
a
b
a - O-ring
b - Rocker Arm
9. Apply Quicksilver Perfect Seal on threads of 2
bolts.
Secure motor using 2 bolts and lockwashers.
Waterproof Power Trim system by applying
Quicksilver Liquid Neoprene on seam.
18461
a
b
c
b
a
a - Bolts
b - Lockwashers
c - Seam
10. Install starboard transom bracket, steering retain-
ing nut (models with thru-tilt tube steering), and
motor wires; refer to “Installation” instructions in
“Power Trim Assembly Removal and Installation,”
preceding.
Brush Replacement (“Square” Motor)
1. Brush replacement is recommended if brushes
are pitted, chipped, or if distance (a) between the
brush pigtail and end of brush holder slot is 1/16
or less. Check the distance with armature
installed, as shown.
18457
a
a - Distance =1/16 in. (1.6mm)
