Mariner 70 - Page 328

6C-22 90-13645--2 495POWER-TRIM
51146
b
c

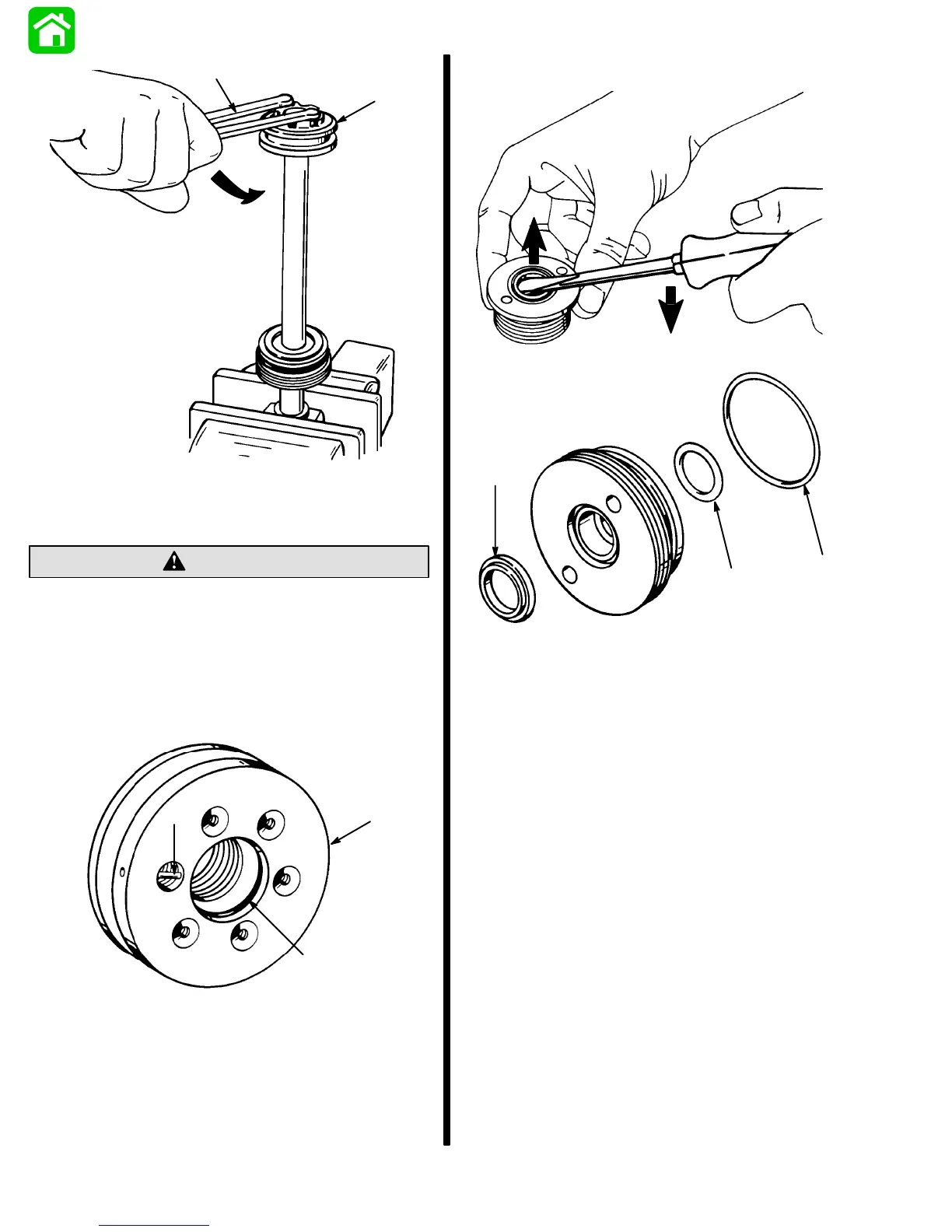

b - Spanner Wrench
c - Trim Rod Piston
Do not remove check ball components (a) from
trim rod piston. Removal and re-installation of
check valve could result in improper operating
pressure and possible power trim system
damage. If check valve is defective, replace trim
rod piston.
CAUTION
7. Remove inner O-ring from piston.
51199
a
b
c
a - Check Ball Components
b - O-ring
c - Piston
8. Remove rod wiper, inner O-ring and outer O-ring.
51145
51147
a
b
c
a - Rod Wiper
b - Inner O-ring
c - Outer O-ring
