Catch Sensors | V1 | Servicing and Maintenance
9.

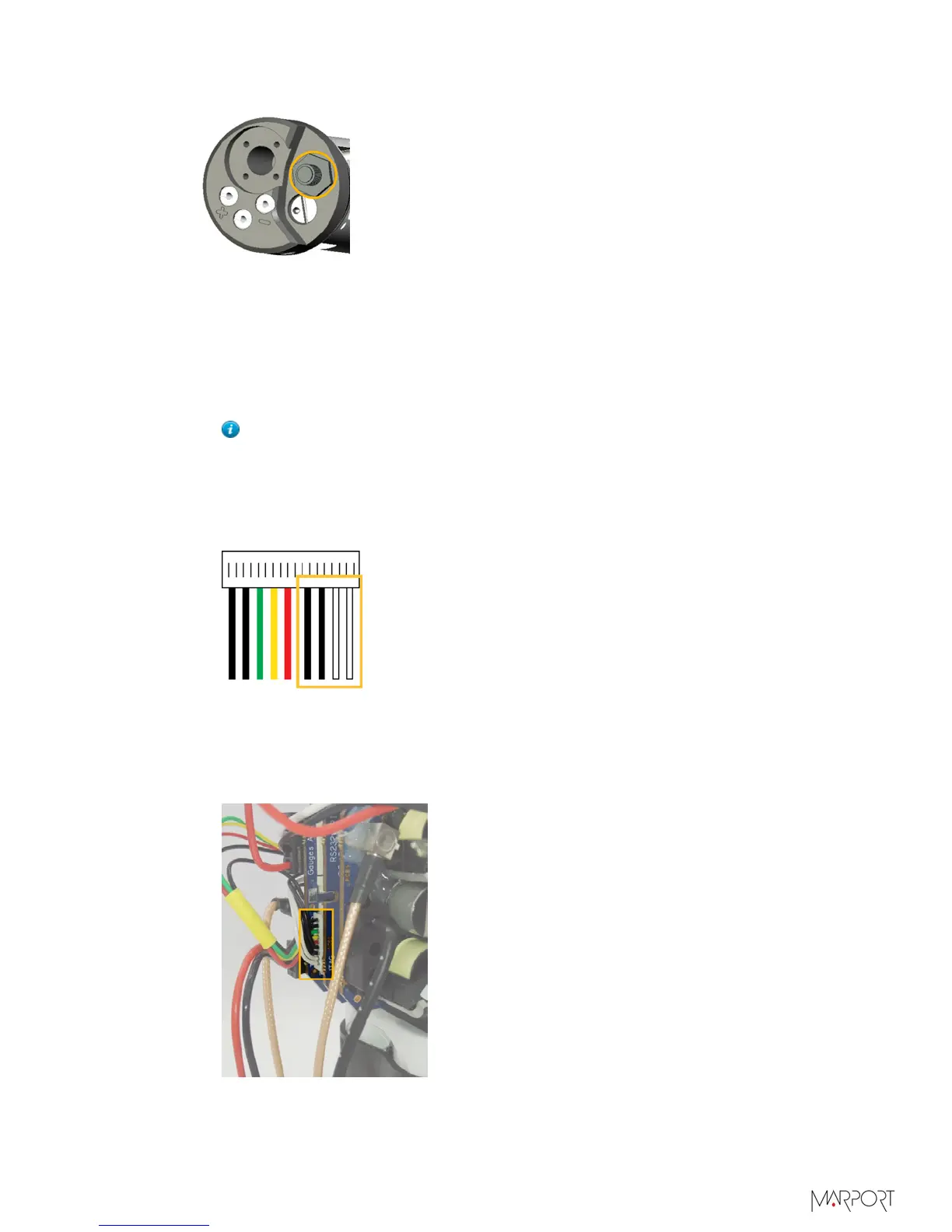

Using the 22 mm wrench, remove the temperature sensor and its cables.
10.
Remove the o-ring seals placed at the temperature sensor location with tweezers.
11.
Fully clean the surface and hole of debris (with a swab or Q-tip) and inspect the
surface for burrs or pitting.
12.
Replace the o-ring seals with new lubricated seals.
13.
To install the new temperature sensor:
a)
On the new temperature sensor cables, strip the end of each cable and crimp pins
to each stripped cable.
Tip: If you do not have the necessary tools to do these operations on the
cables, another solution is to keep the old cables connected to the connector,
cut them at mid-length and weld the new cables to them.
b)
Slide the cables through the temperature hole and through the hole in the internal
housing and put the new cables into the white connector in the following order
(view of side with clips upward):
c)
Apply loctite on the temperature screw thread, then tighten back into place the
temperature sensor with the wrench (torque at 60 in-lbs / 7 N-m).
d)
Put back the end cap and screw with the 1/8" Allen key (torque at 15 in-lbs / 2 N-
m).
e)
Connect the white connector to the PCBA.
14.
Put back into place the PCBA and secure it with the retainers.
15.
Reconnect the battery.
| 75
