Catch Sensors | V1 | Servicing and Maintenance
5.
Apply anti-seize on the four screw threads, then tighten the screws with the 9/64 size
Allen key.
What to do next
You need to calibrate the new catch sensor. See Calibrating the Catch Sensor on page 22.

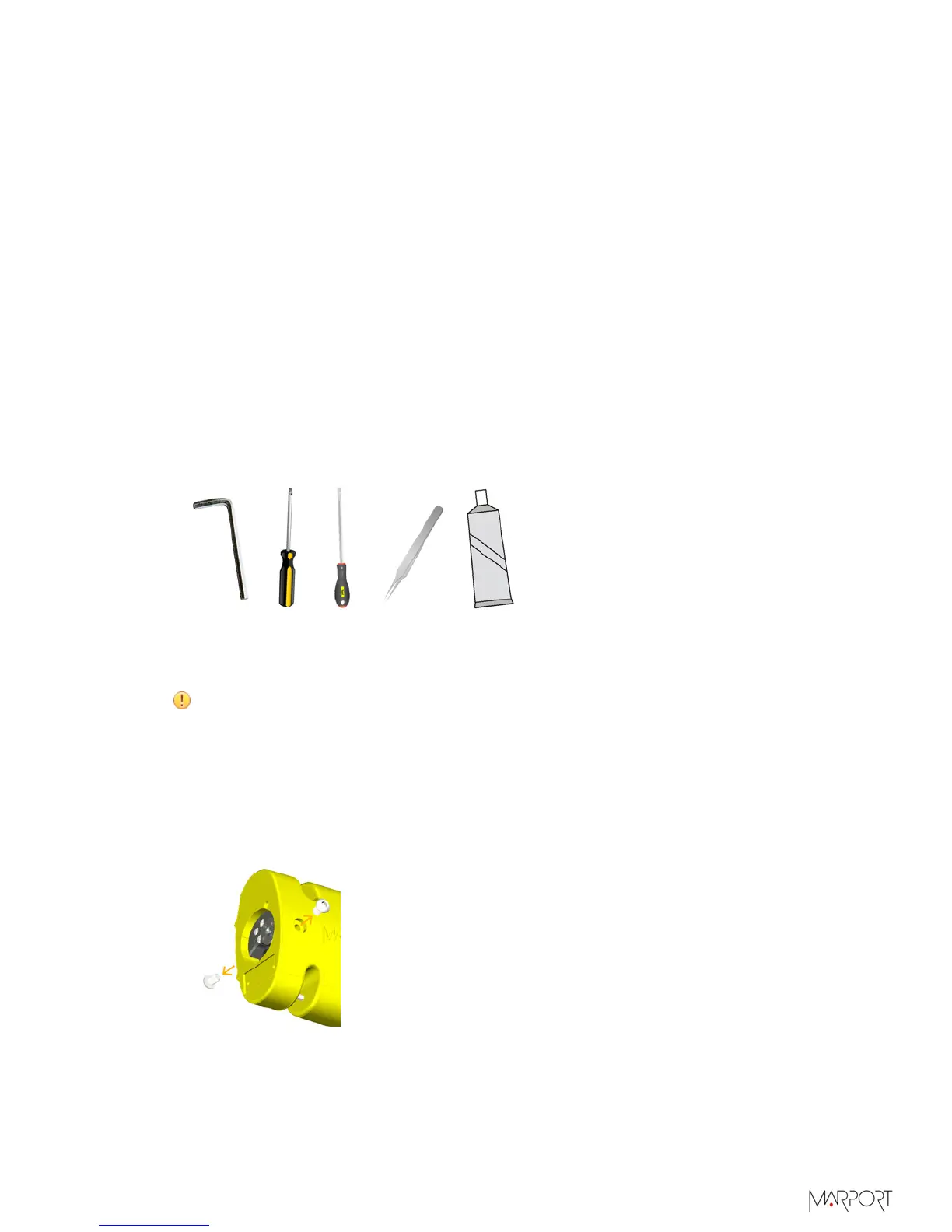

Replacing the Shoulder Bolts
Before you begin
For this task you need the following tools:
• 6 mm Allen key
• 1.5 mm Allen key
• 1/8" Allen key
• Philips screwdriver or 5/64" Allen key
• Flat head screwdriver
• Tweezers
• O-ring lubricant
• Anti-seize
About this task
Only qualified Marport technicians can do this task.
CAUTION: Never remove the shoulder bolts directly from the end cap (black part).
Shoulder bolts are attached to cables and removing them will damage the cables.
Always open the bottle to remove the shoulder bolts from the inside.
Procedure
1.
To remove the housing of the sensor: remove the screws on each side of the end cap
using a size 6 Allen key, then push the bottle out.
| 68
