Masimo Rad-97 Operator's Manual

Rad-97 Chapter 6: Noninvasive Blood Pressure (NIBP)
www.masimo.com 115 Masimo
3. Properly place the blood pressure cuff on patient. See Cuff Selection and
Placement on page 110.

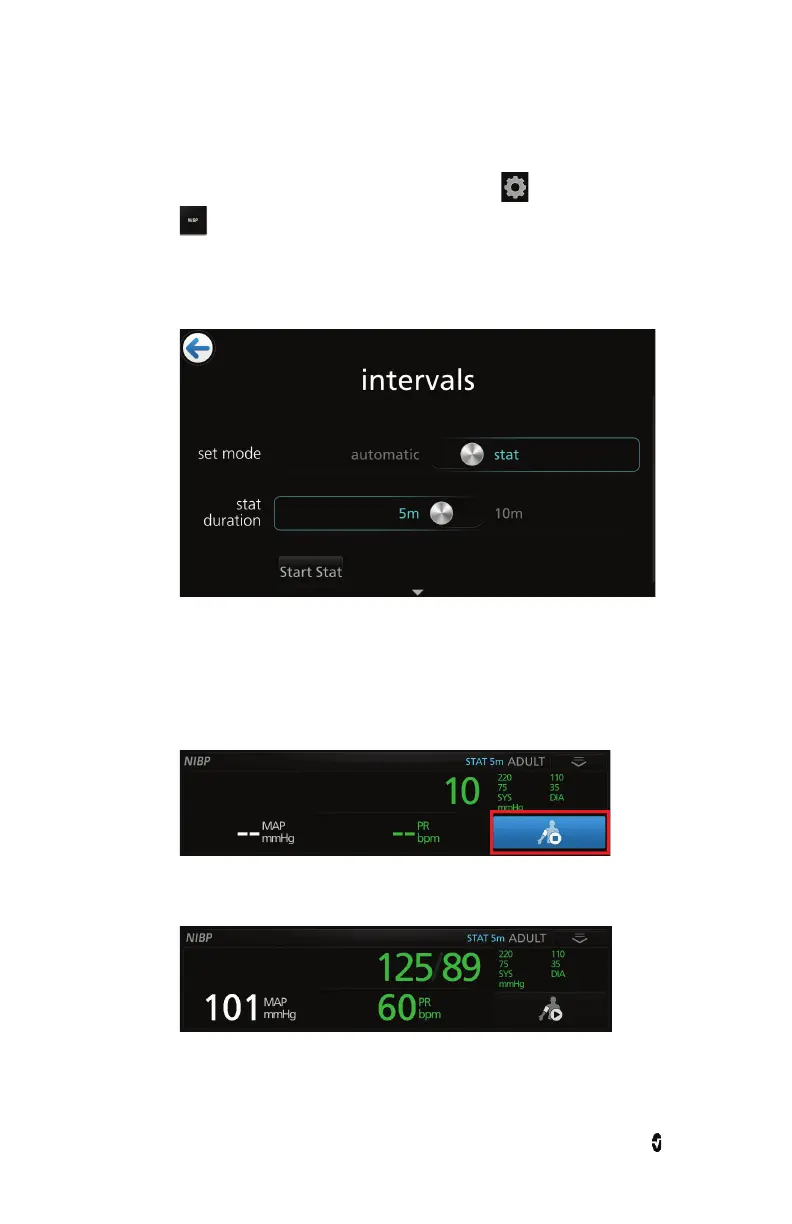

4. To enable Stat mode, touch the Main Menu icon , then select NIBP Settings
.
On the Intervals screen, change Set Mode to Stat, and then select the desired Stat
Duration. The measurement site can also be changed using the action menu.
WARNING: Too frequent blood pressure measurements can cause injury to the
patient due to blood flow interference.
5. To begin measurement, touch the Start Stat button and then press the arrow in
the top-left corner of the touchscreen to return to the Main Screen.
Note: A Stat Interval NIBP measurement can also be started directly from the
Action Menu in the NIBP window. See About the Action Menu on page 51.
6. Wait for measurement to complete or touch the Stop button to stop the
measurement.
Note: Once measurement is completed and values appear, the next measurement
will begin and repeat until duration time has elapsed.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
