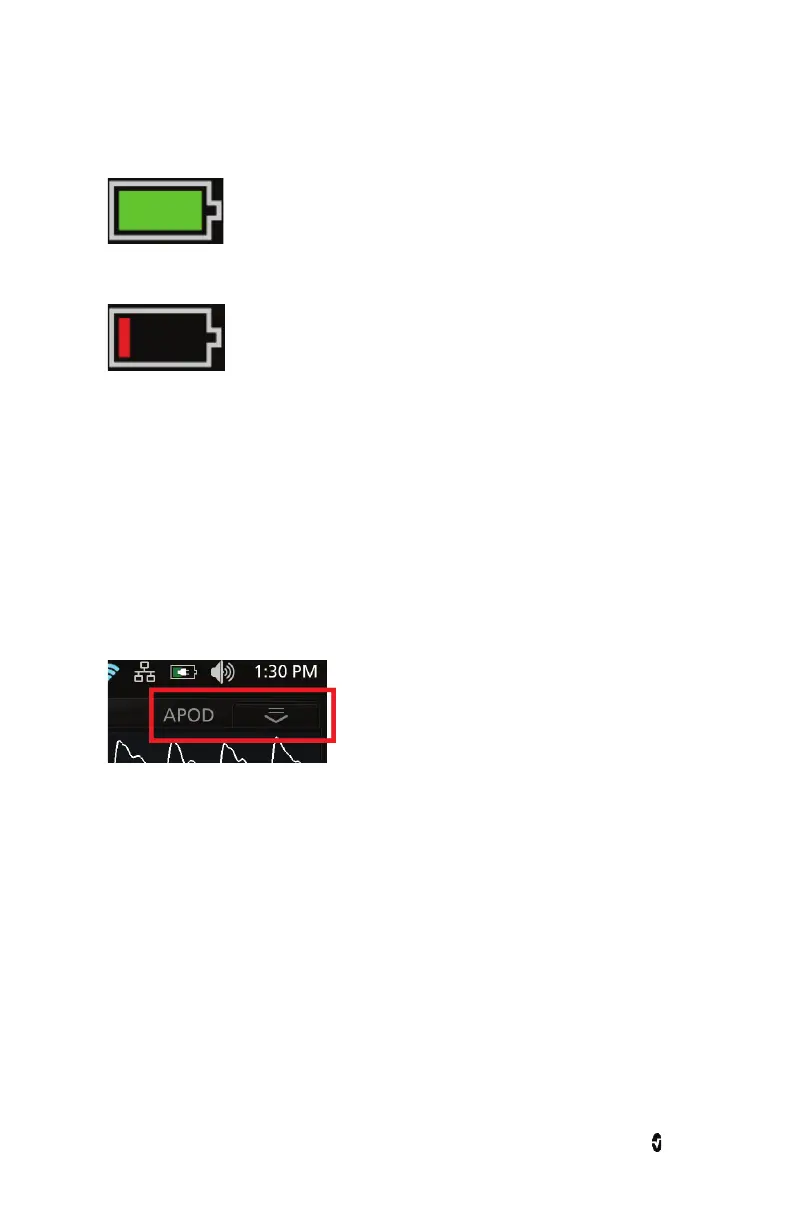

Battery Charge Status Indicator
When unplugged from AC power, the Battery Charge Status Indicator icon provides a visual
indication of the current battery charge condition.
When the battery charge reaches a low level:
• The Battery Charge Status Indicator icon will change color (Red).
• A “Low Battery” message appears and a medium priority alarm tone will sound
with a Red border on the display. The system status light will flash Yellow.
Connect the battery to AC power to prevent the device from powering off and to charge the
battery. When connected to power, the AC Power Indicator icon will be displayed.
Touch the Battery Charge Status Indicator icon to view battery details. See Rad-97 Battery on
page 93.
About the Action Menu
To expand the Action Menu, select the arrow in the upper right corner of the window.
Note: After approximately 10 seconds without interaction, the Action Menu will retract.
The Action Menu allows quick access to the following settings directly from the Main Screen:
• Sensitivity - Selecting this option cycles through the available sensitivity modes:
APOD, NORM and MAX. See Sensitivity Modes Overview on page 52.
• Trend View - Displays values in Trend View. See Customizing Trend View on page
54.
• Numeric View - Displays values in a standard grid view.
On NIBP models, the Action Menu provides access to the following settings:
• Intervals - Opens the intervals setting screen. See Stat Interval NIBP
Measurement on page 114.

Masimo Rad-97 Specifications

General

Display Size	7 inches
SpO2 Accuracy	±2% (70-100%)
Pulse Rate Accuracy	±3 bpm
Perfusion Index Range	0.02% to 20%
Pleth Variability Index Range	0% to 100%
SpO2 Range	0% to 100%
SpHb Range	0 to 25 g/dL
SpCO Range	0% to 40%
Battery Type	Rechargeable lithium-ion
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity Range	10% to 95% non-condensing
Display	Color touchscreen
Connectivity	Wi-Fi, Ethernet, Bluetooth
Power Supply	100–240 VAC, 50–60 Hz
Battery Life	Approximately 4 hours
Measurements	SpO2, Pulse Rate, Perfusion Index, Pleth Variability Index, SpHb, SpOC, SpMet, SpCO
Pulse Rate Range	25 to 240 bpm
HbCO Range	0-99%
MetHb Range	0-99%
SpMet Range	0-99%
Data Storage	Internal memory
Alarms	Audible and visual alarms for all parameters
