Trigger Activation RisingEdge
Exposure Mode Timed
This trigger will start an acquisition after a rising edge signal on line 4 (= DigIn0).
Now, set the two counters. Both counters (Counter1 and Counter2) will be reset and start after
the acqusition (AcquisitionStart) has started.
While Counter1 increases with every ExposureStart event (see figure above for the event and
acquisition details) ...

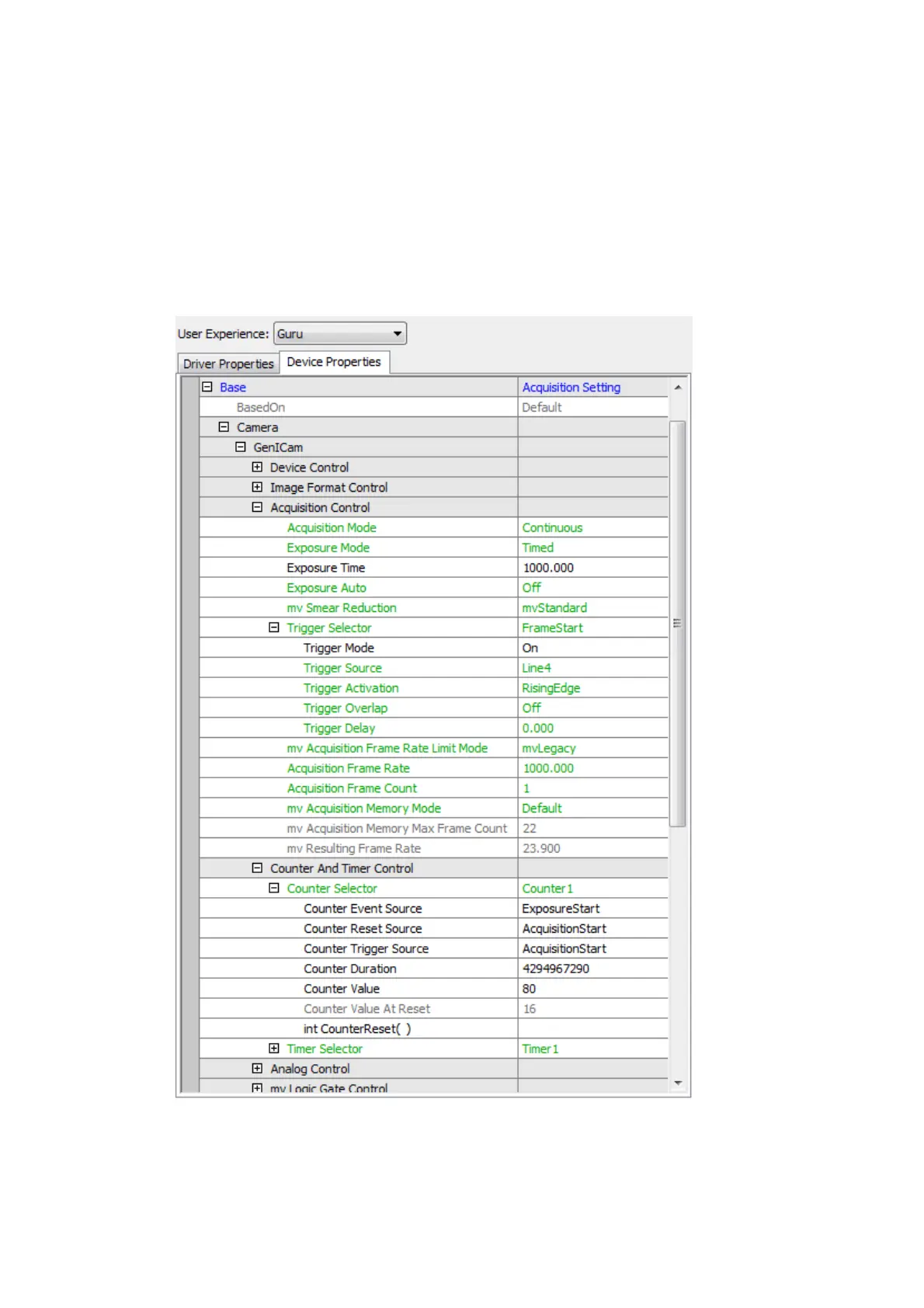

Figure 2: Setting Counter1
... Counter2 increases with every RisingEdge of the trigger signal:
18 Use cases
218
