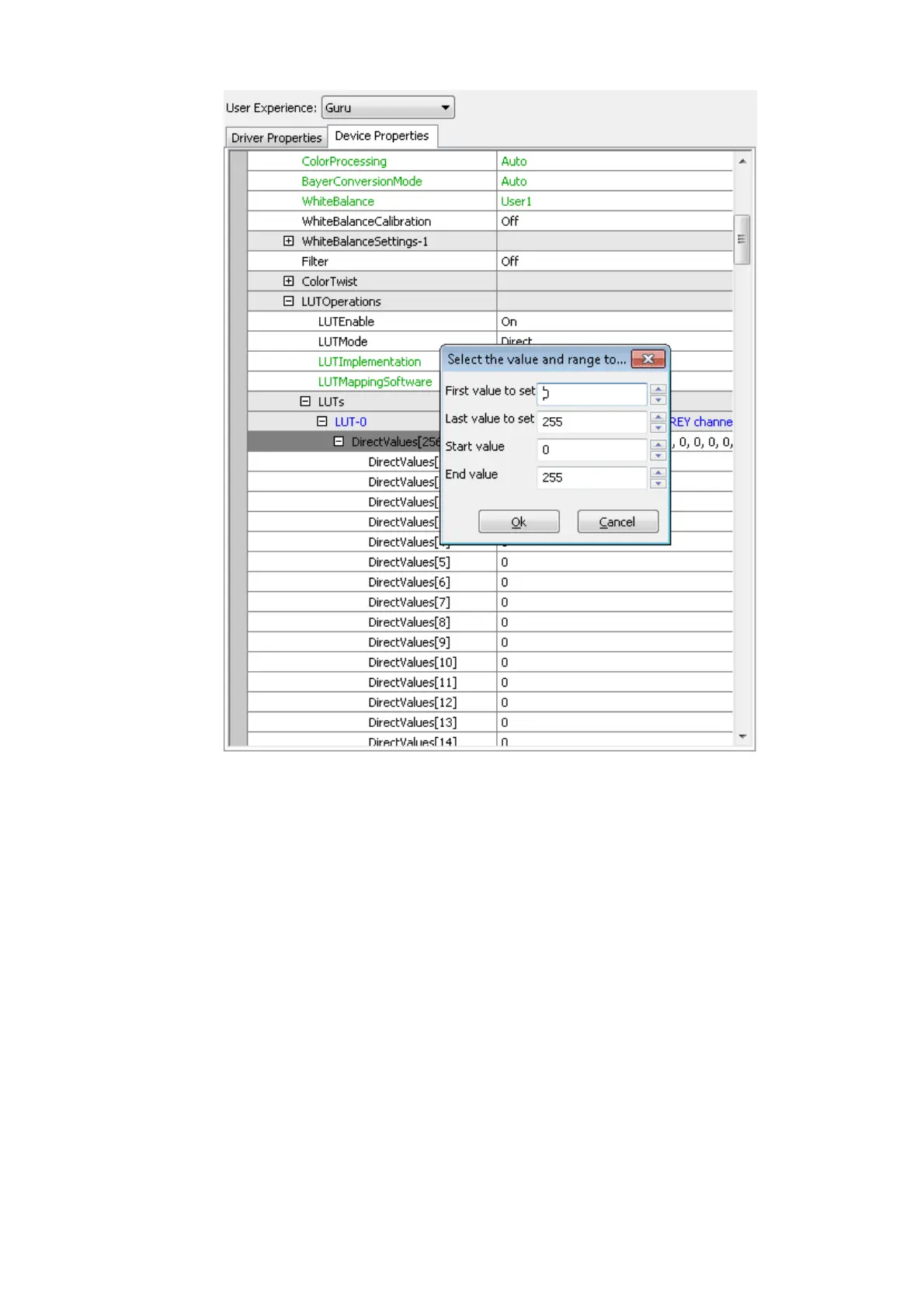

Figure 7: wxPropView - Setting multiple property values within a certain value range

In this sample the entries 0 to 255 of the property will be assigned the value range of 0 to 255. This

will result in the following values AFTER applying the values:
