Installing the SFP module
When installing the SFP (Small Form Factor Pluggable) module, make sure you properly secure the
module in its housing.
To install the SFP module:

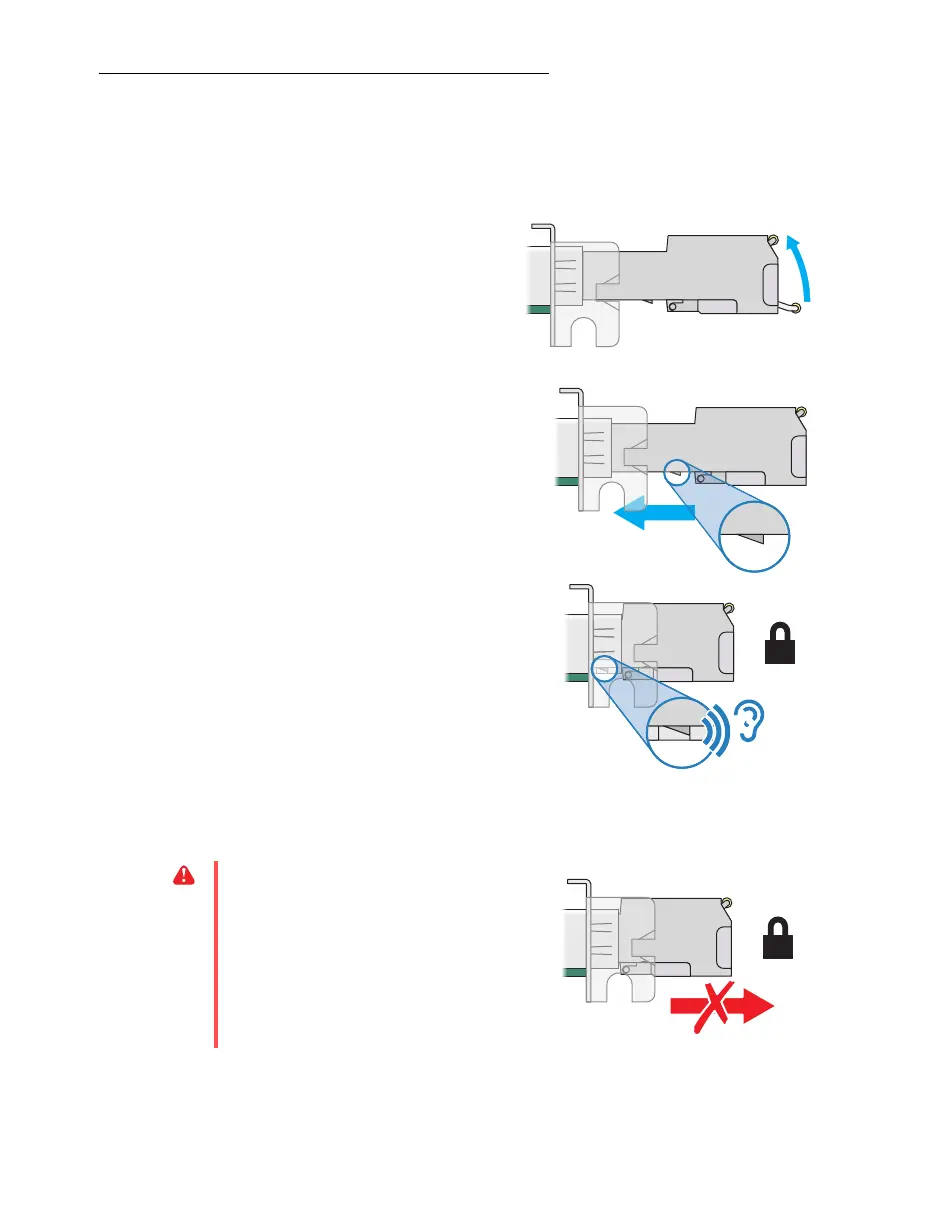

1 Close the latch handle.
2 Push the module into the SFP housing
in your Matrox product. Make sure the
module is properly oriented. A properly
oriented module should slide easily into
the housing.
3 Make sure the SFP module is inserted all
the way into the housing, When locking
in place, you may hear a “click” sound.
To make sure the SFP module is securely
inserted, you can pull gently on the
module without lowering the latch
handle.
Removing the SFP module
(RJ45 SFP module shown)
WA R N I N G : A properly installed SFP
module is securely locked in its housing.
Forcing the SFP module out of its housing
without unlocking it may damage your
SFP module, the housing, or your Matrox
product.
