INSTALLATION3 - 3
D-MAXE with OI-TS www.maxcessintl.comMI 2-292 1 C

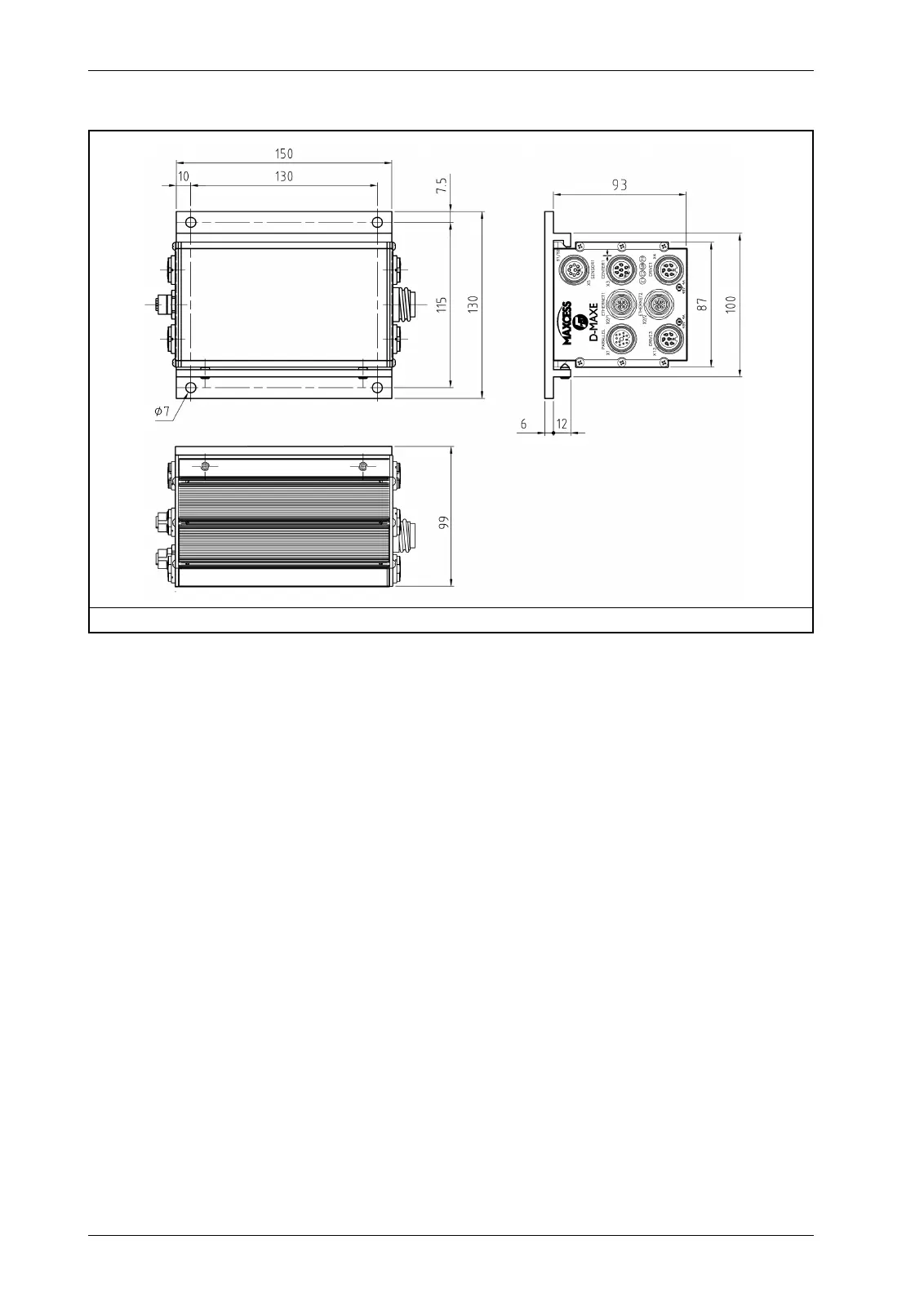

Figure 3.2: Dimensions of the D-MAXE 3 Controller with assembly plate
Note:
You must ensure that there is sufficient space for
the cabling. See the cabling diagrams in the
system documentation for more information.
