Maxcess FIFE D-MAXE 2 User Manual

INSTALLATION 3 - 8
D-MAXE with OI-TSwww.maxcessintl.com MI 2-292 1 C
Montage.fm
Connections on the
D-MAXE 1 Controller .
For technical details and additional information, please consult
Section
11 Technical Data .
Connections on the
D-MAXE 2 Controller
For technical details and additional information, please consult
Section
11 Technical Data .
Connection Designation
X1 Parallel inputs/outputs
X2/1 Ethernet
X2/2 Ethernet
X3 Servo-center transducer 1/Encoder 1
X4 Drive 1
X5 Sensor 1 (S1/S2)
X6 Power supply voltage
X8 FifeNet/ OI-TS
X9 Sensor 2 (S3/S4)

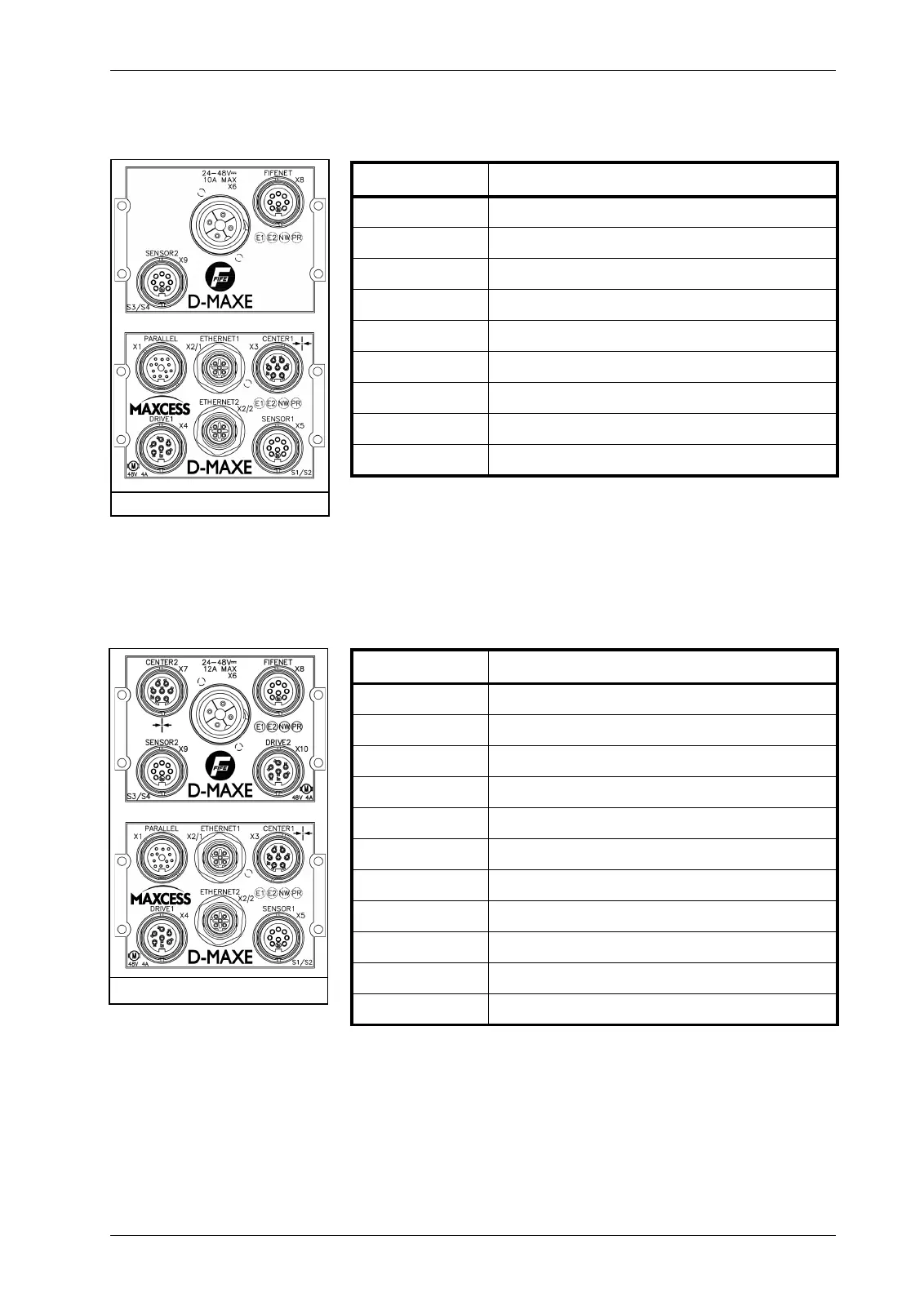

Figure 3.8: D-MAXE 1 Controller
Connection Designation
X1 Parallel inputs/outputs
X2/1 Ethernet
X2/2 Ethernet
X3 Servo-center transducer 1/Encoder 1
X4 Drive 1
X5 Sensor 1 (S1/S2)
X6 Power supply voltage
X7 Servo-center transducer 2/Encoder 2
X8 FifeNet/ OI-TS
X9 Sensor 2 (S3/S4)
X10 Drive 2
Figure 3.9: D-MAXE 2 Controller
