Mounting
WARNING
All assembly tasks on the D-MAXE system must be
performed when there is no electrical power in the system.
Assembly tasks and mechanical settings must only be
performed when the machine has been stopped and secured
from being turned on again.
Installation location of
D-MAXE Controller – Protection class: IP54
– Operating temperature: 0°C ... 60°C
(see
Technical Data, page 11-1
).
– Relative humidity: 10% to 90% non condensing
– Operating altitude above sea level: maximum 3000m
– On a fixed machine part or on a wall
– Not in places where there is a risk of explosions.
Mechanical fastening of
D-MAXE Controller – Built into a guiding system or
– With an assembly bracket (optional) for wall mounting (see
figure 3.1
) or

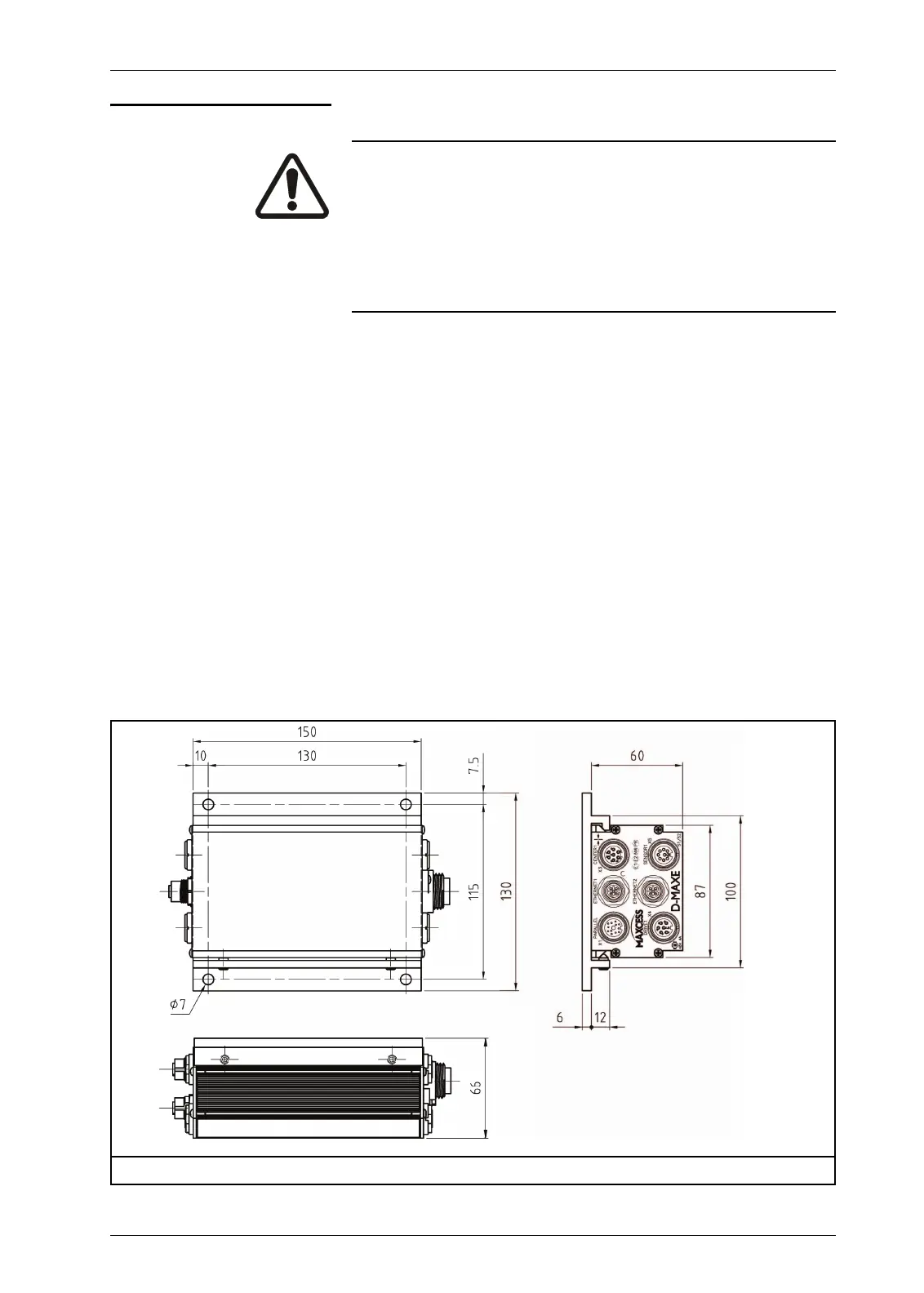

Figure 3.1: Dimensions of the D-MAXE 1 or D-MAXE 2 Controller with assembly plate
Note:
You must ensure that there is sufficient space for
the cabling. See the cabling diagrams in the
system documentation for more information.
