CHOKE - ELECTRIC ASSIST
Article Text (p. 2)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, August 26, 2001 04:58PM

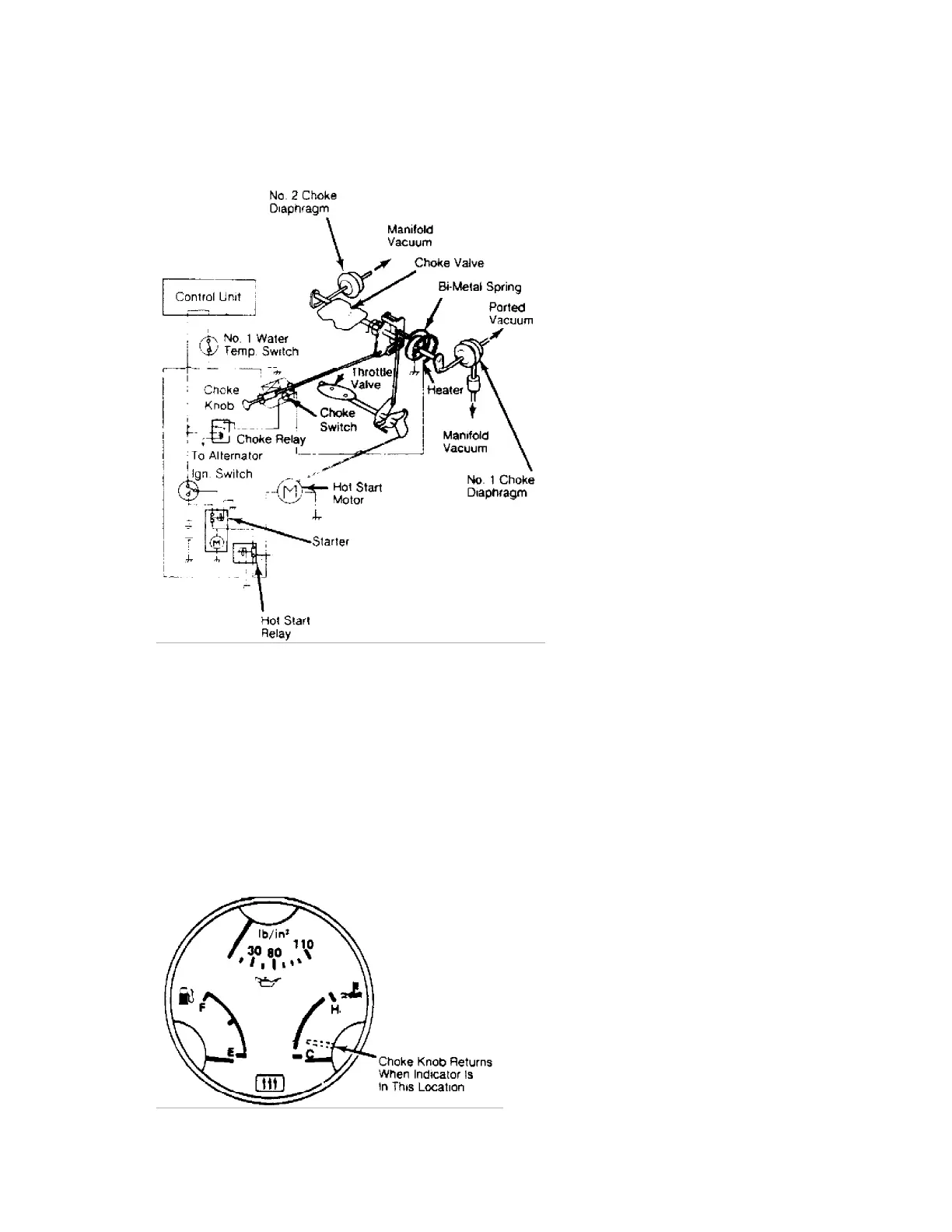

Fig. 1: Choke Return and Hot Start Assist Systems
TESTING
CHOKE RETURN SYSTEM
1) With engine cold and ignition switch "OFF", pull choke
knob out fully. Choke knob should return automatically.
2) Connect tachometer to engine. Start engine and set engine
speed at 2000 RPM with choke knob. With engine running, choke knob
should automatically return when engine temperature indicator is in
position shown in Fig. 2.
Fig. 2: Engine Temperature Indication for
Release of Choke Knob
